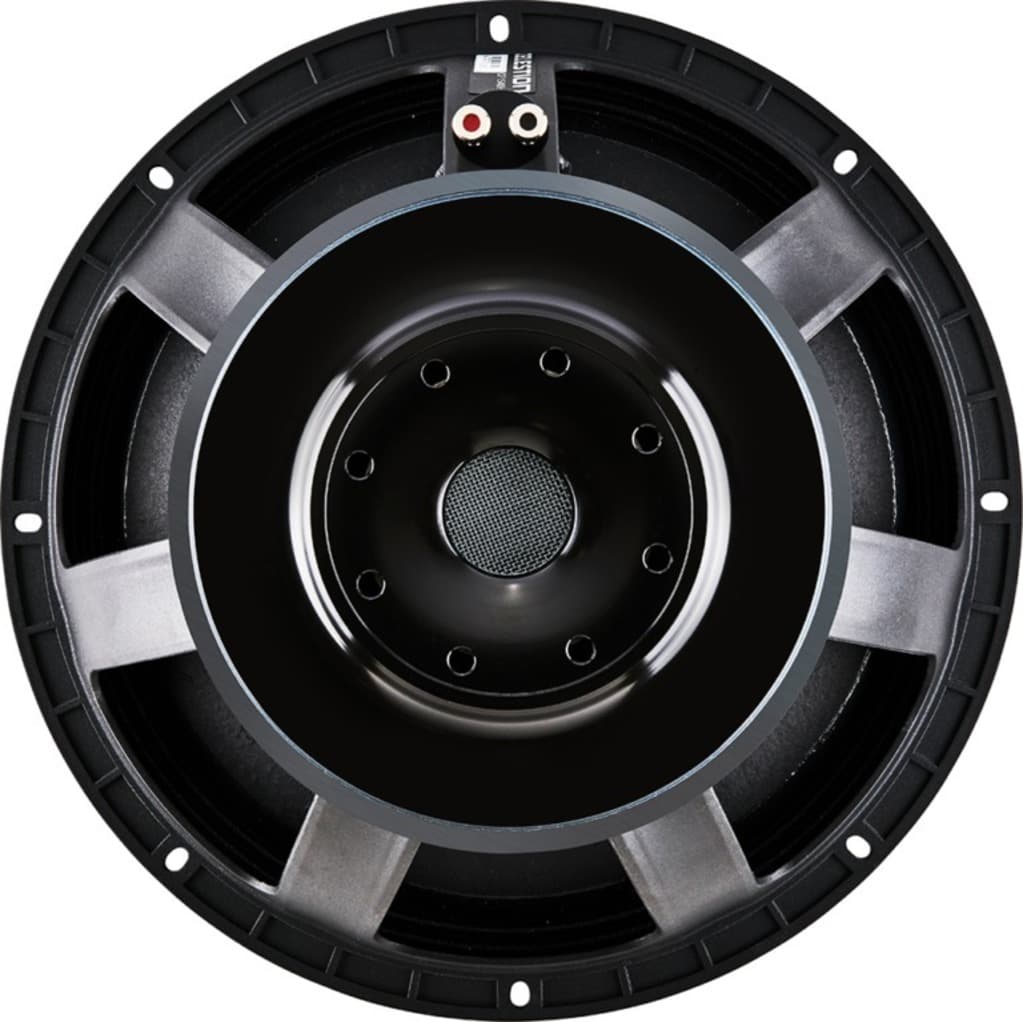

Monacor CF1540HD/8
Monacor CF1540HD/8 is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 41Hz, Qts 0.30, Vas 108.3L, Xmax 10.5mm, sensitivity 95.6dB, plus 898cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
95.6dB
97.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
126
Vented alignment
Vd
898cm³
T/S Parameters
Valid
Fs41Hz
Qts0.30
Qes0.32
Qms5.6
Vas108.3L
Re5.2Ω
Le1.22mH
BL24.4Tm
Sd855cm²
Mms146g
Xmax10.5mm
SPL96dB
Power1200W
Impedance8Ω
F Low35Hz
F High2000Hz
Voice Coil100mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.2kg
Diameter393.0mm
Overall Depth184.0mm
Cutout Diameter354.0mm
