Overview
LF DriverSP series
Monacor

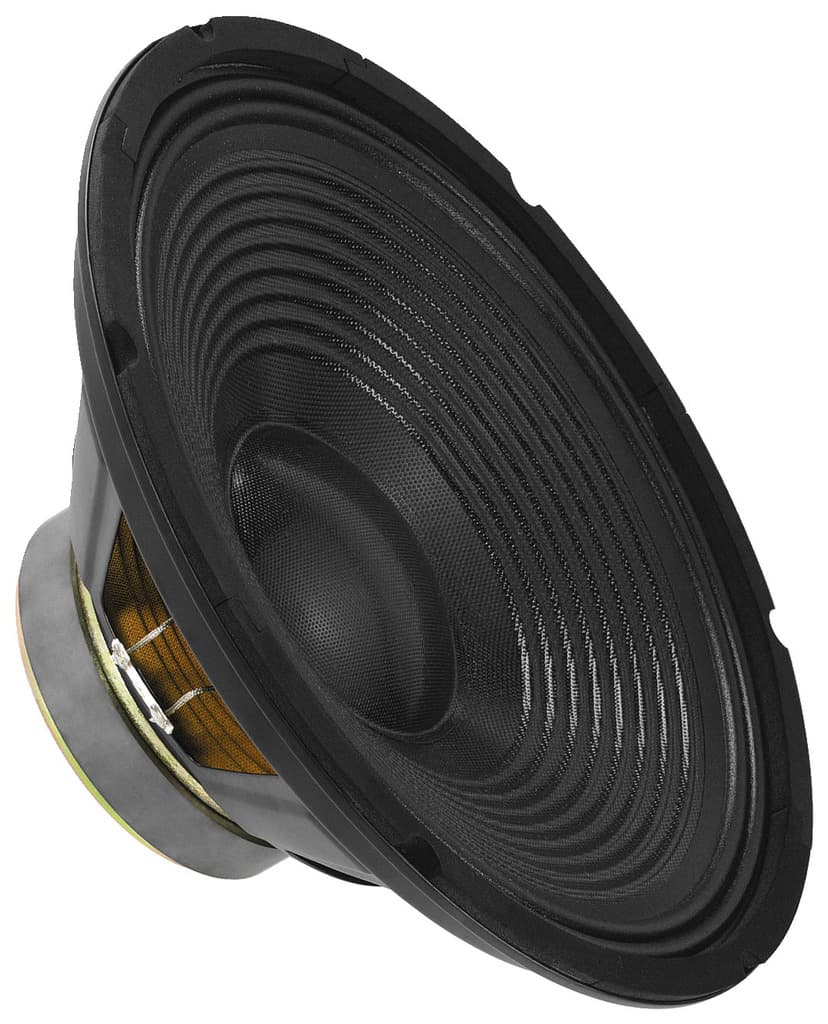

Monacor SP-302PA
Monacor SP-302PA is a 12" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 45Hz, Qts 0.89, Vas 51L, Xmax 2.5mm, sensitivity 87dB, plus 136cm³ Vd and 31 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.0dB
90.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
31
Sealed alignment
Vd
136cm³
T/S Parameters
Valid
Fs45Hz
Qts0.89
Qes1.47
Qms2.2
Vas51.0L
Re7.7Ω
Le0.50mH
BL10.5Tm
Sd542cm²
Mms57g
Xmax2.5mm
SPL87dB
Power100W
Impedance8Ω
F Low3Hz
F High4000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

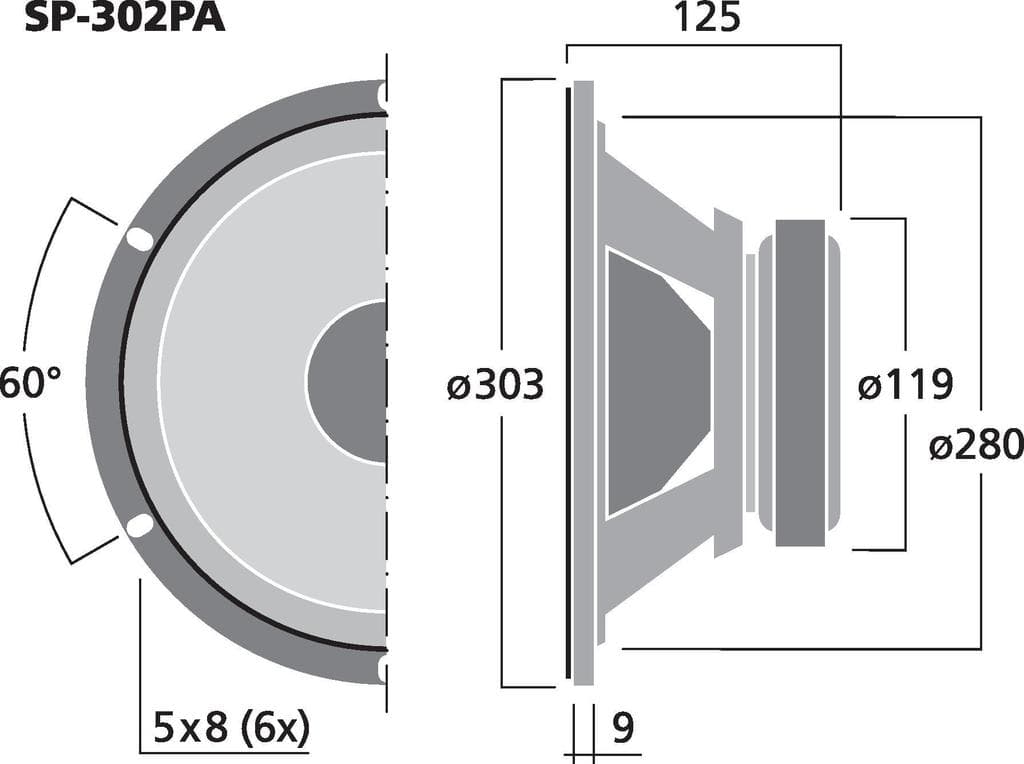

Dimensions & Physical
Weight2.4kg
Diameter303.0mm
Overall Depth125.0mm
Cutout Diameter280.0mm
