12-inch LF driver · LEGEND series · 75 W
Eminence LEGEND 1275 8Ω
8 Ω · 80–5100 Hz
No price for delivery to the UK
- Fs
- 111Hz
- Xmax
- 0.47mm
- SPL
- 98dB
- Pe
- 75W
- BL
- 11.9T·m
- Vd
- 26cm³
- Qts
- 1.02
- Vas
- 30L

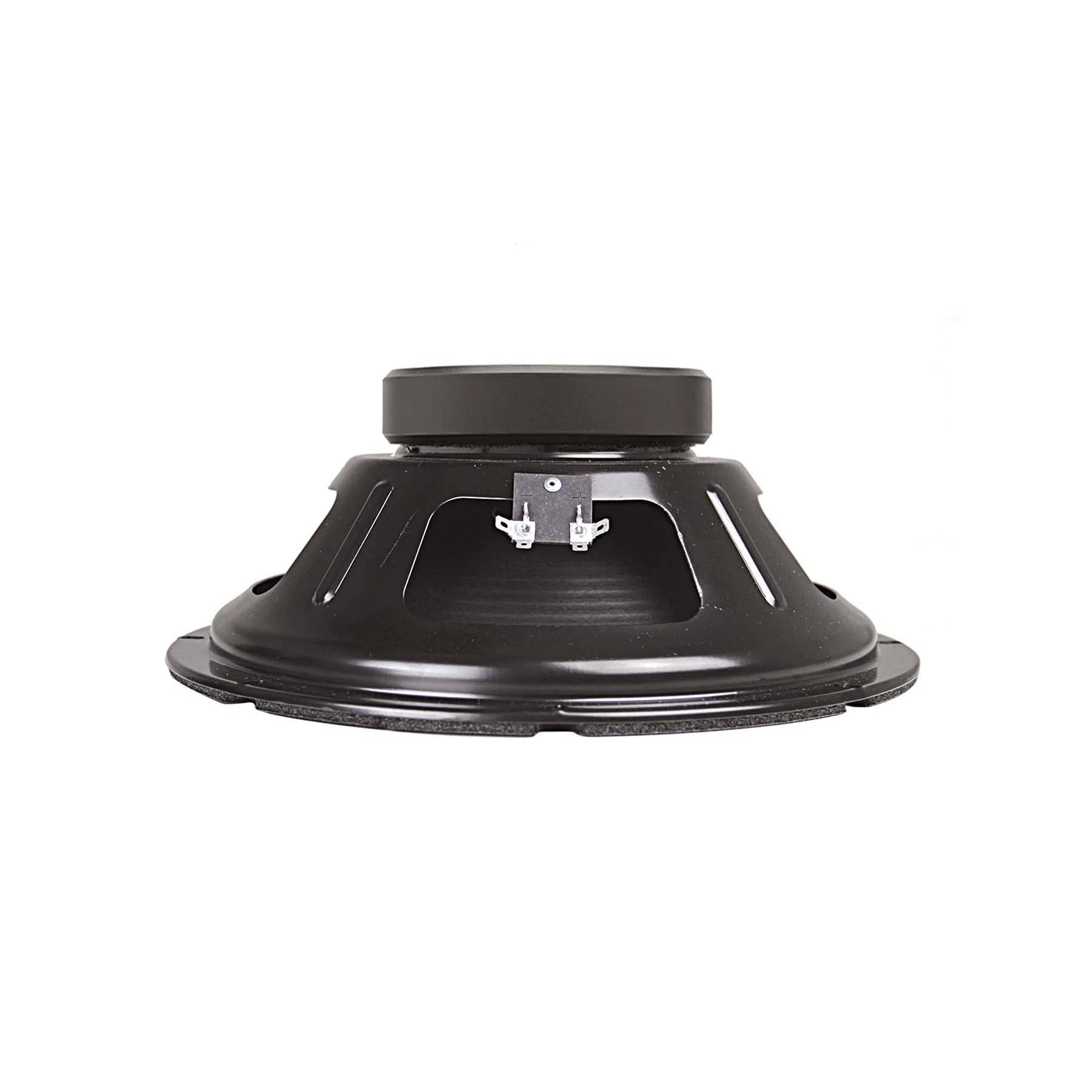

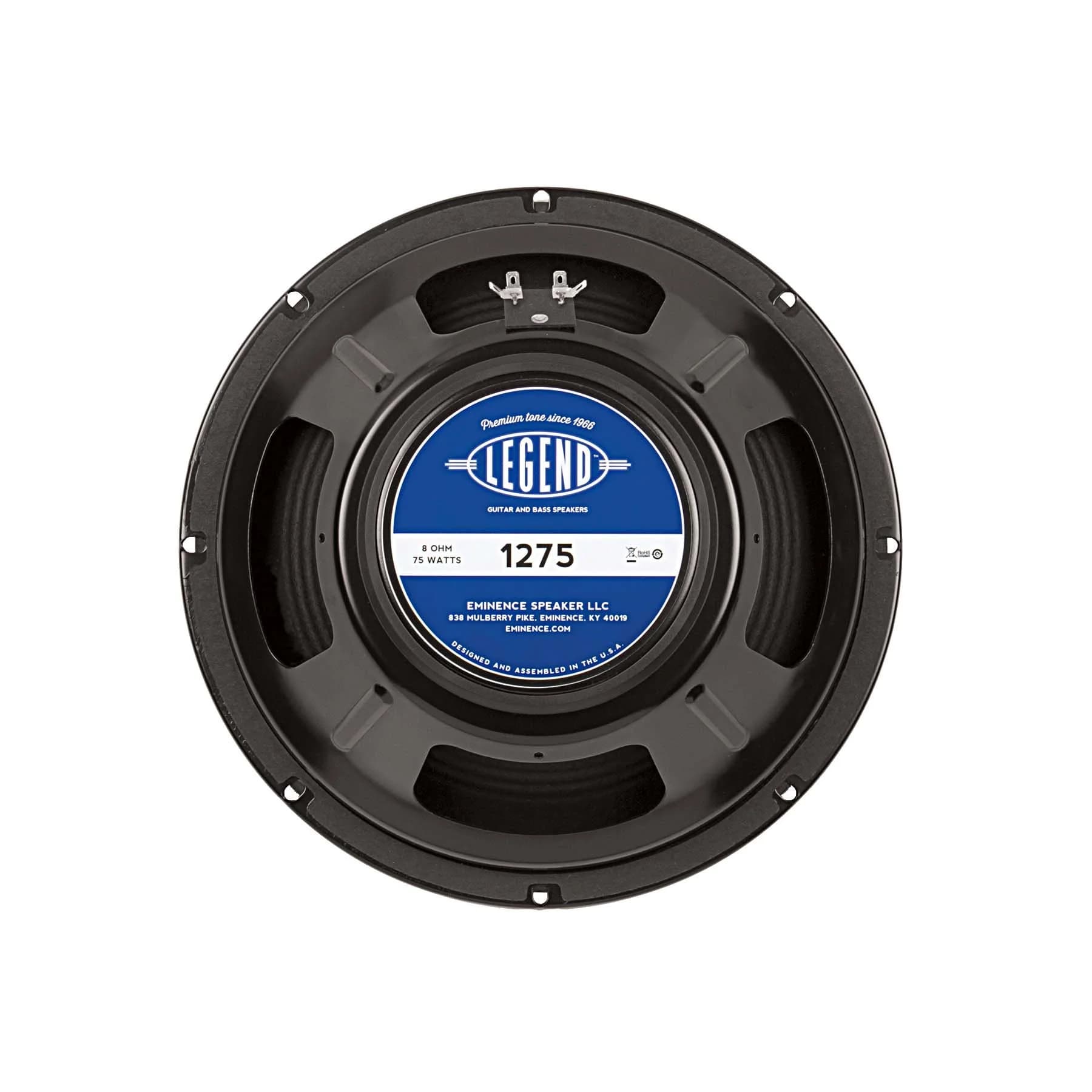

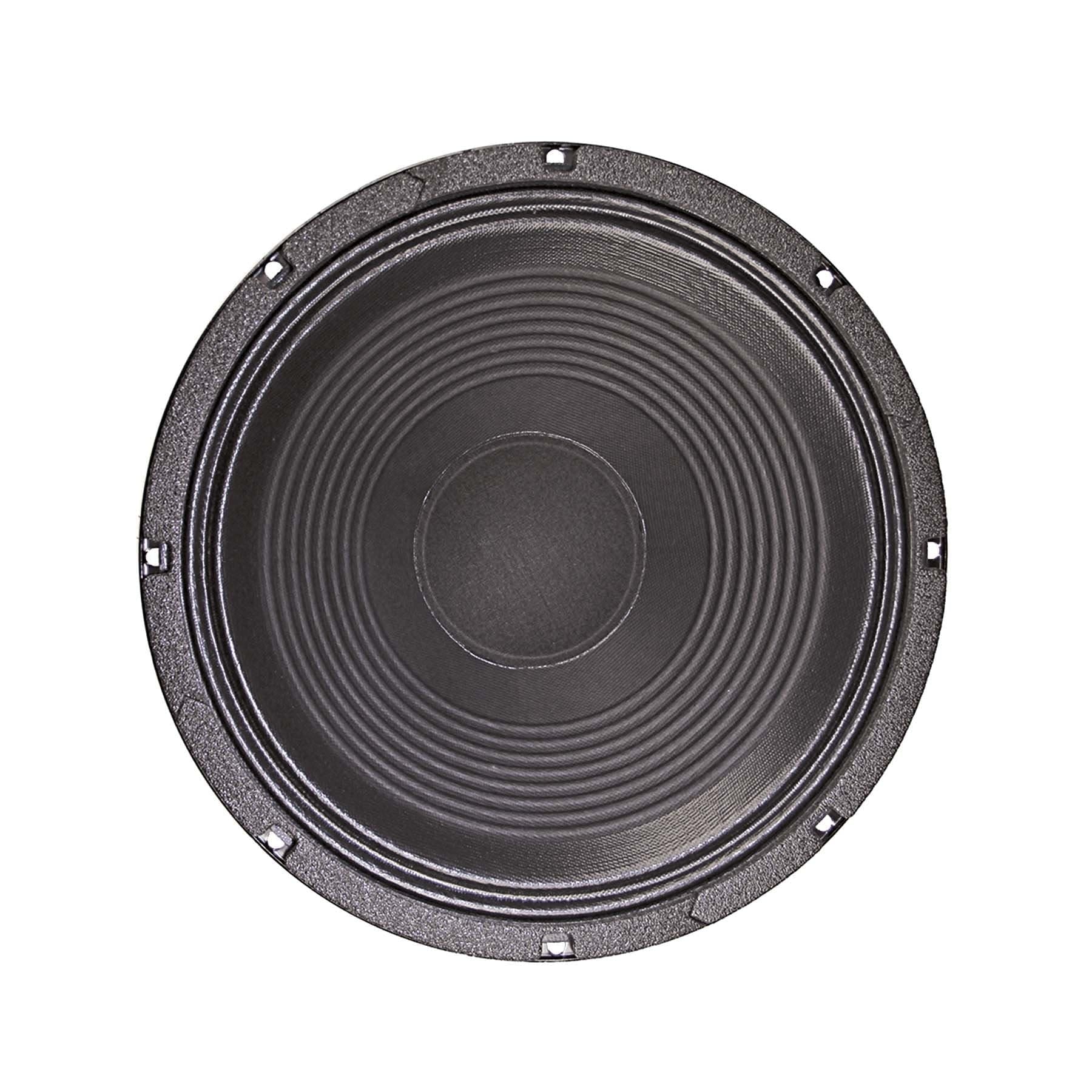

Eminence LEGEND 1275 is a 12-inch 8 ohm LF driver rated at 75 W RMS. The validated T/S data includes Fs 111 Hz, Qts 1.02, Vas 29.6 L, Xmax 0.47 mm, sensitivity 97.7 dB, plus 26 cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 111Hz
- Qts
- 1.02
- Qes
- 1.09
- Qms
- 15.1
- Vas
- 29.6L
- Re
- 7.4Ω
- Le
- 0.55mH
Motor and cone
- BL
- 11.9T·m
- Sd
- 552cm²
- Mms
- 30g
- Xmax
- 0.47mm
- Vd †
- 26cm³
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 101.1dB
- Power
- 75W
- Impedance
- 8Ω
- Range
- 80–5100Hz
- EBP †
- 102 · Leans vented
Size and mounting
- Diameter
- 311.4mm
- Cutout
- 280.9mm
- Depth
- 112.8mm
- Weight
- 3.2kg
Other published values
- Cms
- 0.07mm/N
Sensitivity shows 97.7 dB, calculated from the T/S values. Eminence publishes 101.1 dB, 3.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 11.9T·m
- Fs
- 111Hz
- Le
- 0.55mH
- Re
- 7.4Ω
- Sd
- 552cm²
- Cms
- 0.07mm/N
- Mms
- 30g
- Qes
- 1.09
- Qms
- 15.1
- Qts
- 1.02
- SPL
- 97.7dB
- Vas
- 29.6L
- Xmax
- 0.47mm
- Power
- 75W
- Impedance
- 8Ω
- Sensitivity
- 101.1dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 97.7dB
- High limit
- 5100Hz
- Manufacturer sensitivity
- 101.1dB
- Weight
- 3.2kg
- Diameter
- 311.4mm
- Depth
- 112.8mm
- Cutout
- 280.9mm
