Overview
LF DriverAN series
Monacor

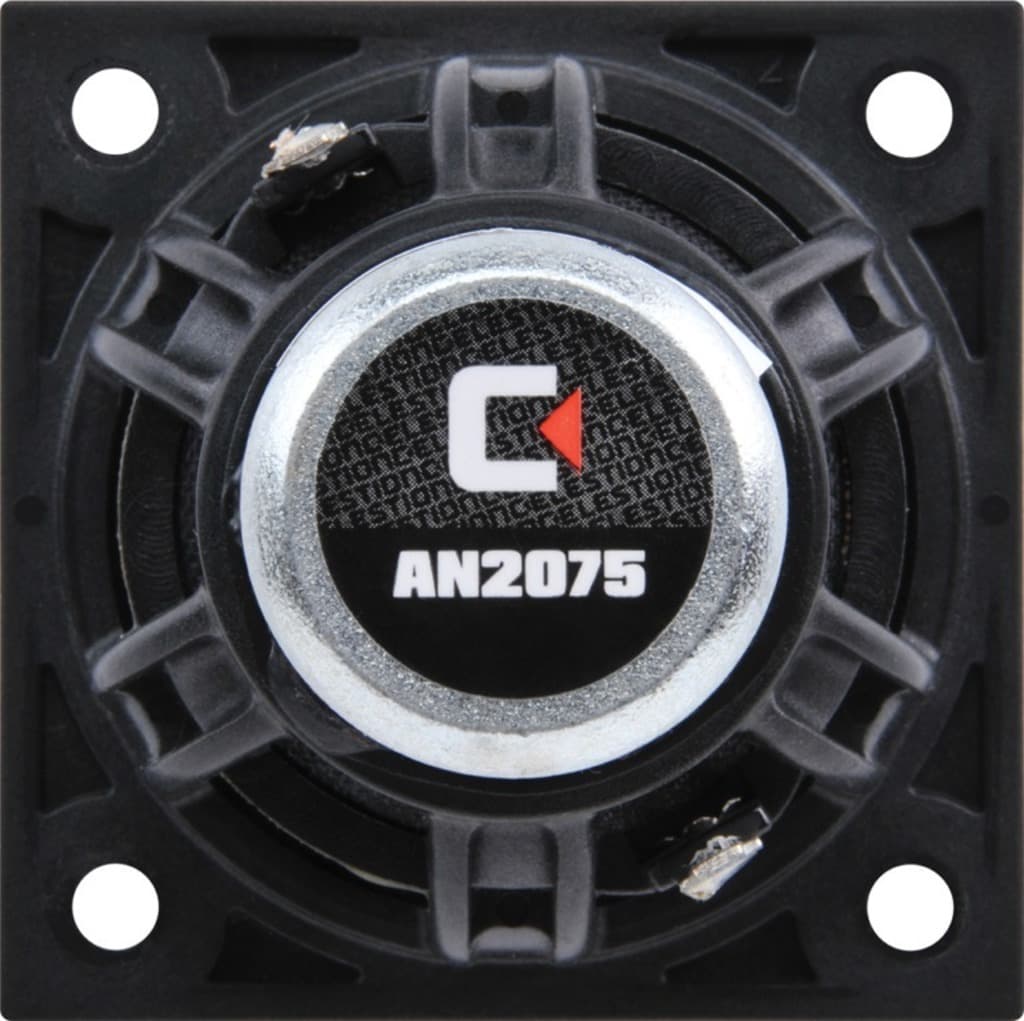

Monacor AN2075/8
Monacor AN2075/8 is a 2" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 153Hz, Qts 0.84, Vas 1.5L, Xmax 2.3mm, sensitivity 89.4dB, plus 3cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
20W
Sensitivity
89.4dB
80.0dBmanufacturer; using T/S-derived value (9.4dB delta).
EBP
154
Vented alignment
Vd
3cm³
T/S Parameters
Valid
Fs153Hz
Qts0.84
Qes1.00
Qms5.3
Vas1.5L
Re5.3Ω
Le0.04mH
BL2.7Tm
Sd13cm²
Mms1g
Xmax2.3mm
SPL89dB
Power20W
Impedance8Ω
F Low160Hz
F High19000Hz
Voice Coil20mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter56.2mm
Overall Depth43.5mm
Cutout Diameter51.1mm
