Visaton FRS 7 W - 8 Ohm 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFRS series
Visaton

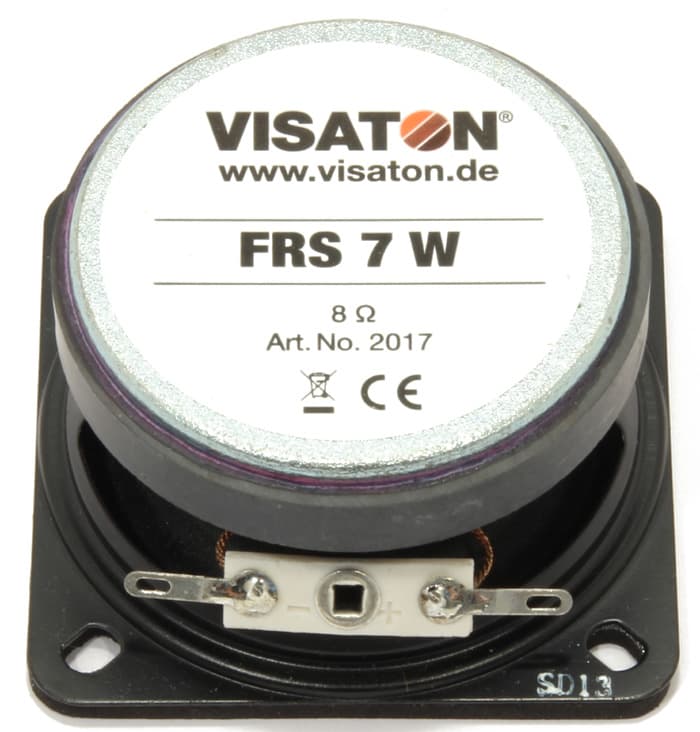

Visaton FRS 7 W - 8 Ohm
Visaton FRS 7 W - 8 Ohm is a 2.5" 8 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 160Hz, Qts 0.63, Vas 0.8L, Xmax 2.5mm, sensitivity 87.5dB, plus 6cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
8Ω
RMS Power
8W
Sensitivity
87.5dB
86.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
176
Vented alignment
Vd
6cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence894 selected pixels of 1,122
T/S Parameters
Valid
Fs160Hz
Qts0.63
Qes0.91
Qms2.1
Vas0.8L
Re6.6Ω
BL2.5Tm
Sd22cm²
Mms1g
Xmax2.5mm
SPL88dB
Power8W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil14mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter65.0mm
Cutout Diameter61.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FRS 7 W - 8 Ohm
2.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
Dayton Audio
PC68-4
2"
Xmax2mm-20%
Qts0.65+3%
BL2.4Tm-4%
Vas0.7L-10%
Qes0.87-4%
67%
Similarity
Dayton Audio
CFC100-4
2"
Xmax2.5mm0%
Qts0.6-5%
BL3.1Tm+26%
Vas0.8L+7%
Qes0.75-18%
47%
Similarity
£62.95
Scanspeak
5F/8422T01
2"
Xmax2mm-20%
Qts0.61-3%
BL3.1Tm+24%
Vas0.5L-36%
Qes0.69-24%
40%
Similarity
Wavecor
FR070WA01
3"
Xmax2mm-20%
Qts0.56-11%
BL3Tm+20%
Vas0.5L-31%
Qes0.58-36%
