Markaudio Alpair 10 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverAlpair series
Markaudio

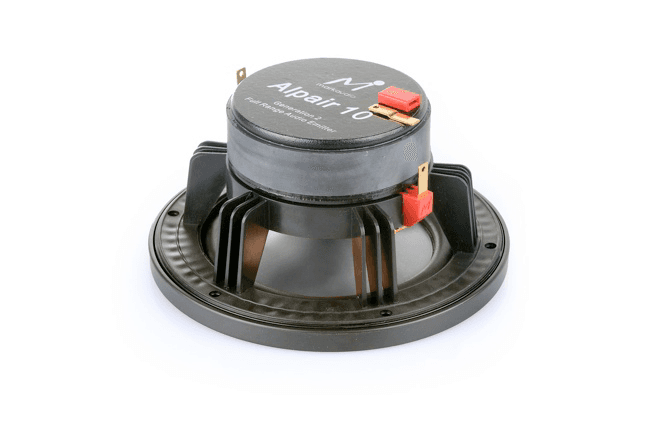

Markaudio Alpair 10
Markaudio Alpair 10 is a 4" 8 ohm LF driver. The validated T/S data includes Fs 38Hz, Qts 0.32, Vas 26.3L, Xmax 7.5mm, sensitivity 87.9dB, plus 66cm³ Vd and 101 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
Sensitivity
87.9dB
EBP
101
Vented alignment
Vd
66cm³
T/S Parameters
Valid
Fs38Hz
Qts0.32
Qes0.38
Qms1.9
Vas26.3L
Re7.2Ω
Le0.07mH
BL5.8Tm
Sd88cm²
Mms7g
Xmax7.5mm
SPL88dB
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Markaudio
Alpair 10
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
80%
Similarity
Markaudio
Alpair 10P
4"
Xmax7mm-7%
Qts0.33+4%
BL4.7Tm-18%
Vas30L+14%
Qes0.38+1%
76%
Similarity
£10,200.00
Markaudio
Pluvia 11
4.25"
Xmax7mm-7%
Qts0.29-7%
BL6.6Tm+14%
Vas24.8L-6%
Qes0.35-7%
65%
Similarity
Markaudio
CHR-90
3.5"
Xmax7mm-7%
Qts0.36+14%
BL4.7Tm-18%
Vas26.1L-1%
Qes0.42+11%
58%
Similarity
Markaudio
CHP-90 MICA
3.5"
Xmax7mm-7%
Qts0.36+15%
BL4.8Tm-16%
Vas20.1L-24%
Qes0.44+15%
53%
Similarity
£244.95
Morel
EW 638
3"
Xmax6mm-20%
Qts0.32+1%
BL7Tm+22%
Vas20.3L-23%
Qes0.39+3%
44%
Similarity
£323.95
Morel
TICW 634ND
3"
Xmax5.5mm-27%
Qts0.35+11%
BL6.6Tm+14%
Vas17.3L-34%
Qes0.37-2%
43%
Similarity
£315.95
Morel
ECW 638
3"
Xmax6mm-20%
Qts0.29-8%
BL7.5Tm+29%
Vas19L-28%
Qes0.36-5%
42%
Similarity
£254.95
Morel
TIW 634ND
3"
Xmax5.5mm-27%
Qts0.36+14%
BL6.5Tm+13%
Vas16.5L-37%
Qes0.39+3%
41%
Similarity
£285.95
Morel
ECW 536
3"
Xmax5.5mm-27%
Qts0.31-2%
BL6.8Tm+18%
Vas11L-58%
Qes0.39+3%
