Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMarkaudio Alpair 10P 6Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverAlpair series
Markaudio

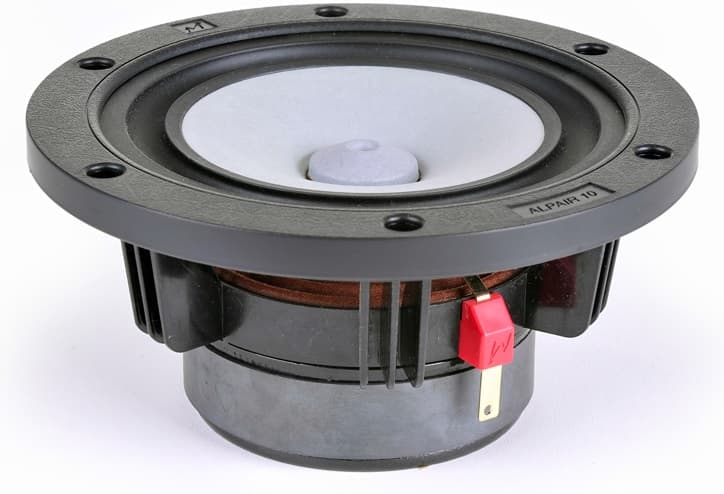

Markaudio Alpair 10P
Markaudio Alpair 10P is a 4" 6 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 42Hz, Qts 0.33, Vas 30.0L, Xmax 7mm, sensitivity 89.8dB, plus 62cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
6Ω
RMS Power
30W
Sensitivity
89.8dB
EBP
111
Vented alignment
Vd
62cm³
T/S Parameters
Valid
Fs42Hz
Qts0.33
Qes0.38
Qms2.4
Vas30.0L
Re6.2Ω
Le0.05mH
BL4.7Tm
Sd88cm²
Mms5g
Xmax7.0mm
SPL90dB
Power30W
Impedance6Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Markaudio
Alpair 10P
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
Markaudio
Alpair 10
4"
Xmax7.5mm+7%
Qts0.32-4%
BL5.8Tm+22%
Vas26.3L-12%
Qes0.38-1%
77%
Similarity
Markaudio
CHR-90
3.5"
Xmax7mm0%
Qts0.36+9%
BL4.7Tm0%
Vas26.1L-13%
Qes0.42+10%
68%
Similarity
Markaudio
CHP-90 MICA
3.5"
Xmax7mm0%
Qts0.36+10%
BL4.8Tm+2%
Vas20.1L-33%
Qes0.44+14%
