Overview
LF Driver
Dayton Audio
Dayton Audio APOLLO 8N
Dayton Audio APOLLO 8N is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 94Hz, Qts 0.32, Vas 8.8L, Xmax 3.9mm, sensitivity 95.2dB, plus 79cm³ Vd and 269 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
95.2dB
EBP
269
Vented alignment
Vd
79cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees240 ptsp1medium
30 degrees212 ptsp1medium
45 degrees240 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 4 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
240 plotted pointsMedium confidence1,286 selected pixels of 1,792 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
212 plotted pointsMedium confidence489 selected pixels of 1,646 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence2,130 selected pixels of 2,130 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence2,169 selected pixels of 2,169
T/S Parameters
Valid
Fs94Hz
Qts0.32
Qes0.35
Qms4.4
Vas8.8L
Re6.0Ω
Le0.17mH
BL14.4Tm
Sd201cm²
Mms21g
Xmax3.9mm
SPL95dB
Power200W
Impedance8Ω
F Low75Hz
F High5800Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter210.0mm
Overall Depth86.5mm
Cutout Diameter182.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
APOLLO 8N
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
£171.89
BMS
8N515
8"
Xmax4mm+2%
Qts0.3-6%
BL13.8Tm-4%
Vas11L+25%
Qes0.32-9%
81%
Similarity
£137.66
BMS
8S215
8"
Xmax4.3mm+9%
Qts0.31-3%
BL13.6Tm-6%
Vas11L+25%
Qes0.33-6%
79%
Similarity
£262.59
BMS
8CN552
8"
Xmax4mm+2%
Qts0.29-9%
BL13.4Tm-7%
Vas10.1L+15%
Qes0.3-14%
75%
Similarity
£64.86
FaitalPRO
8PR155
8"
Xmax3.6mm-9%
Qts0.37+16%
BL13.4Tm-7%
Vas9.4L+7%
Qes0.39+11%
73%
Similarity
P.Audio
8NX-65MB
8"
Xmax3.8mm-4%
Qts0.29-9%
BL18Tm+25%
Vas8.2L-7%
Qes0.31-11%
71%
Similarity
Monacor
FTX0820/8
8"
Xmax4mm+2%
Qts0.28-13%
BL14.6Tm+1%
Vas13.1L+49%
Qes0.31-11%
71%
Similarity
£139.00
Celestion
FTX0820
8"
Xmax4mm+2%
Qts0.28-13%
BL14.6Tm+1%
Vas13.1L+49%
Qes0.31-11%
71%
Similarity
PRV Audio
8MR600X-NDY
8"
Xmax3.8mm-4%
Qts0.29-9%
BL15.2Tm+5%
Vas12.6L+43%
Qes0.3-14%
70%
Similarity
CIARE
NDI8
8"
Xmax4.5mm+15%
Qts0.33+3%
BL12.8Tm-11%
Vas13L+48%
Qes0.36+3%
68%
Similarity
Jensen
BP8150-8
8"
Xmax3.1mm-21%
Qts0.33+3%
BL13.3Tm-8%
Vas13.1L+49%
Qes0.36+3%
68%
Similarity
Sica
8 N 2.5 PL
8"
Xmax3.5mm-10%
Qts0.3-6%
BL12.9Tm-10%
Vas13.7L+56%
Qes0.33-6%
66%
Similarity

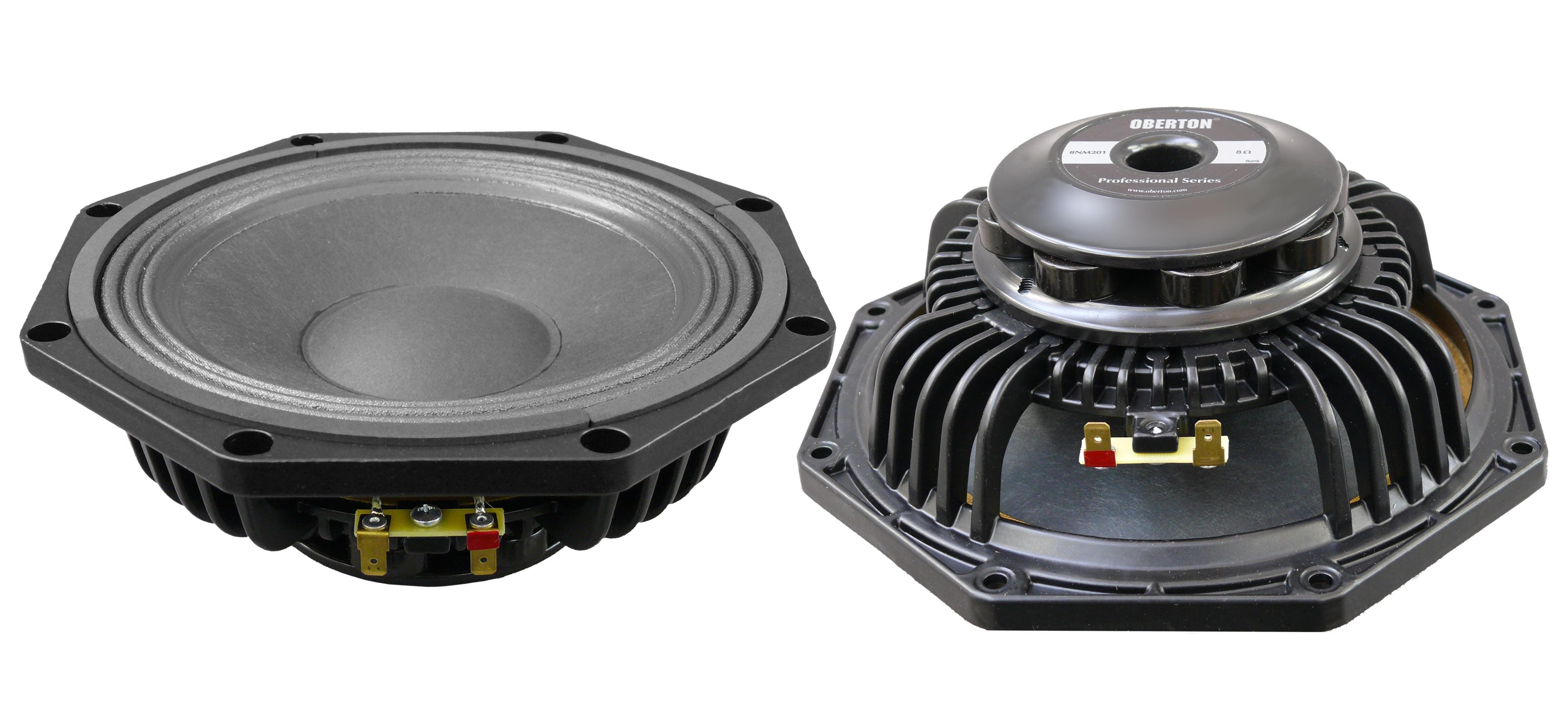

Oberton
