Overview
LF Driver
Beyma
Beyma 112P80FEV28
Beyma 112P80FEV28 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 48Hz, Qts 0.21, Vas 61L, Xmax 7.5mm, sensitivity 96.9dB, plus 413cm³ Vd and 218 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
96.9dB
99.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
218
Vented alignment
Vd
413cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,542 selected pixels of 4,542 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,627 selected pixels of 3,627
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs48Hz
Qts0.21
Qes0.22
Qms6.5
Vas61.0L
Re5.0Ω
Le1.10mH
BL23.0Tm
Sd550cm²
Mms68g
Xmax7.5mm
SPL97dB
Power700W
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112P80FEV28
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Eighteen Sound
12ND940
12"
Xmax7.6mm+1%
Qts0.2-5%
BL22.2Tm-3%
Vas64.8L+6%
Qes0.2-9%
86%
Similarity
£139.00

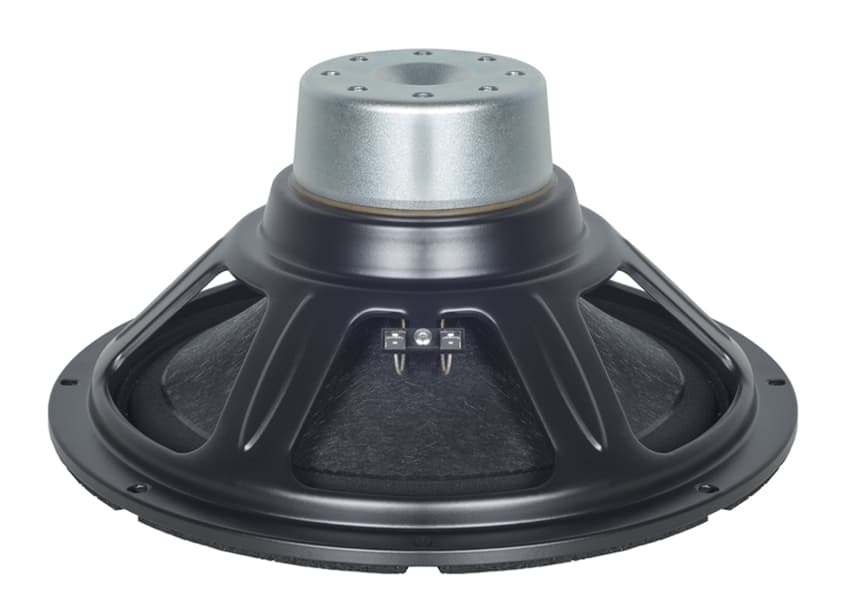

B&C
12CL76
12"
Xmax6mm-20%
Qts0.210%
BL22.4Tm-3%
Vas59L-3%
Qes0.220%
86%
Similarity
£371.39
Beyma
12P80ND
12"
Xmax7.5mm0%
Qts0.19-10%
BL23.7Tm+3%
Vas65L+7%
Qes0.2-9%
86%
Similarity
£228.13
RCF
MB12N405
12"
Xmax7mm-7%
Qts0.2-5%
BL23.5Tm+2%
Vas53L-13%
Qes0.21-5%
85%
Similarity
£226.95

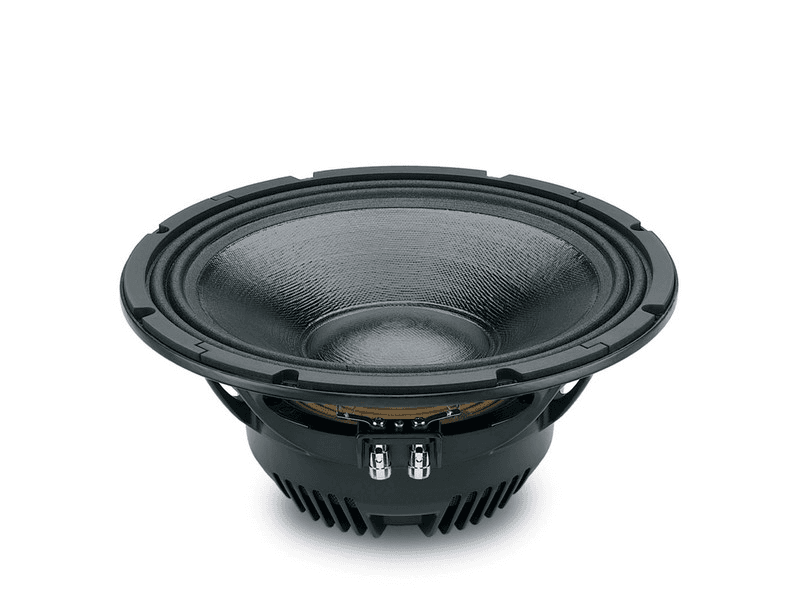

Eighteen Sound
12ND930
12"
Xmax6.5mm-13%
Qts0.210%
BL21.2Tm-8%
Vas70L+15%
Qes0.220%
83%
Similarity
Oberton
12NB450
12"
Xmax7.8mm+3%
Qts0.2-3%
BL20.3Tm-12%
Vas72.6L+19%
Qes0.21-5%
82%
Similarity
£104.34
RCF
MB12N351
12"
Xmax6mm-20%
Qts0.2-5%
BL22.5Tm-2%
Vas61L0%
Qes0.21-5%
82%
Similarity
RCF
LF12P903
12"
Xmax7mm-7%
Qts0.23+10%
BL22.1Tm-4%
Vas65L+7%
Qes0.24+9%
80%
Similarity
£169.00
B&C
12NDL76
12"
Xmax7mm-7%
Qts0.2-5%
BL20.1Tm-13%
Vas73L+20%
Qes0.21-5%
76%
Similarity

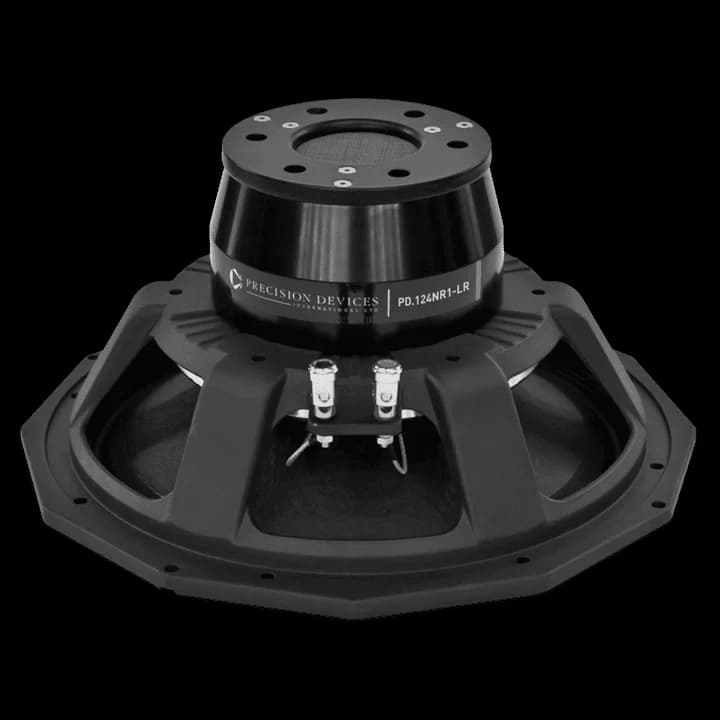

Precision Devices
PD.124NR1-LR
12"
Xmax8.5mm+13%
Qts0.23+7%
BL22Tm-4%
Vas78L+28%
Qes0.23+6%
75%
Similarity
£217.96
Beyma
12MC700ND
12"
Xmax7mm-7%
Qts0.24+14%
BL21.6Tm-6%
Vas58L-5%
Qes0.26+18%
73%
Similarity

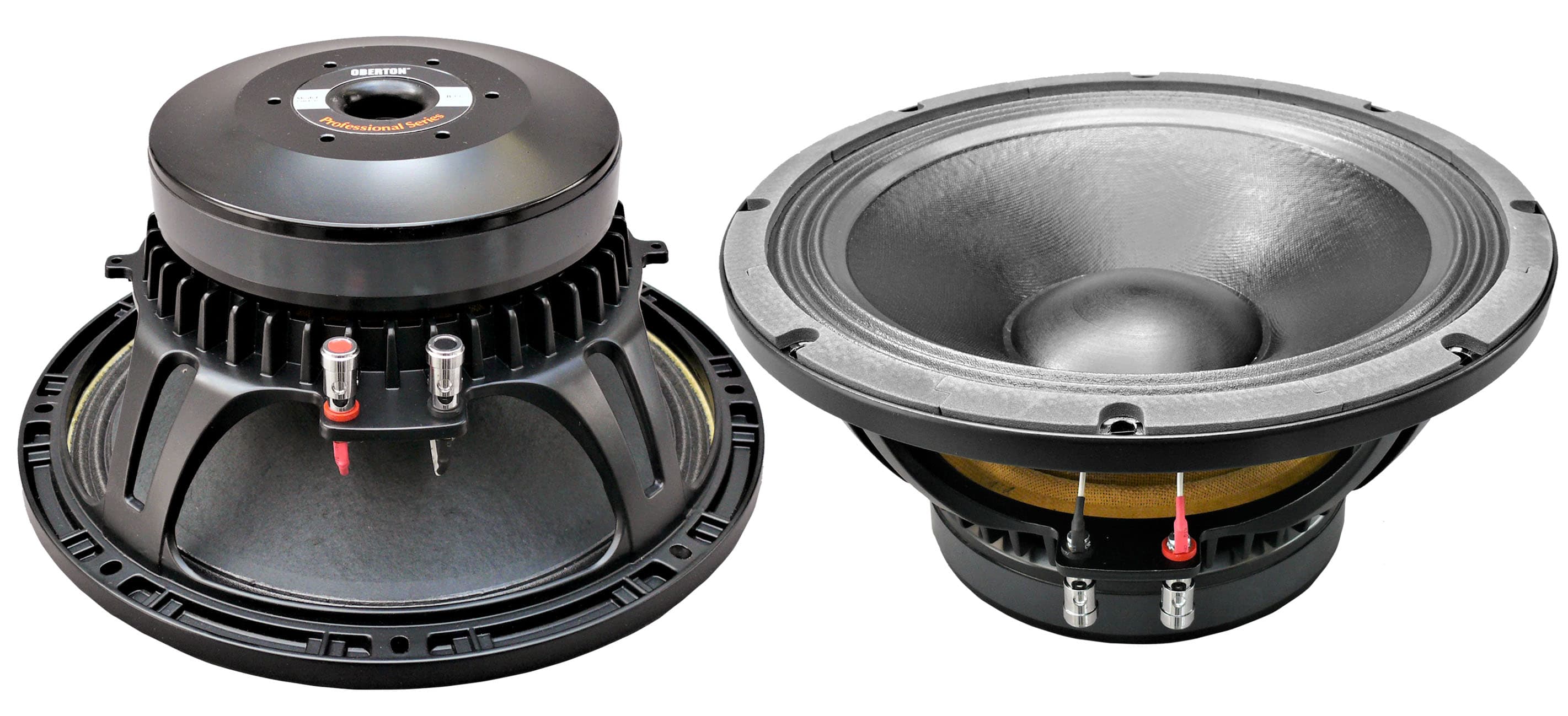

Oberton
12B450
12"
Xmax7.8mm+3%
Qts0.23+12%
BL19.3Tm-16%
Vas71.8L+18%
Qes0.24+10%
