Overview
LF DriverWS series
Visaton
Visaton WS 17 E - 4 OHM
Visaton WS 17 E - 4 OHM is a 6.5" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 45Hz, Qts 0.65, Vas 22L, Xmax 6.5mm, sensitivity 85.5dB, plus 93cm³ Vd and 50 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
60W
Sensitivity
85.5dB
88.0dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
50
Either alignment
Vd
93cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,505 selected pixels of 1,731
T/S Parameters
Valid
Fs45Hz
Qts0.65
Qes0.90
Qms2.4
Vas22.0L
Re3.2Ω
Le0.60mH
BL3.9Tm
Sd143cm²
Mms16g
Xmax6.5mm
SPL86dB
Power60W
Impedance4Ω
F High7000Hz
Voice Coil25mm
Flux Density0.80T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter170.0mm
Cutout Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
WS 17 E - 4 OHM
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£29.94
Visaton
WS 17 E
6.5"
Xmax6.5mm0%
Qts0.650%
BL3.9Tm0%
Vas22L0%
Qes0.90%
72%
Similarity
£21.07
Visaton
W 170
6.5"
Xmax7.5mm+15%
Qts0.69+6%
BL5Tm+28%
Vas24L+9%
Qes0.90%
72%
Similarity
Visaton
W 170 - 8 OHM
6.5"
Xmax7.5mm+15%
Qts0.69+6%
BL5Tm+28%
Vas24L+9%
Qes0.90%
50%
Similarity

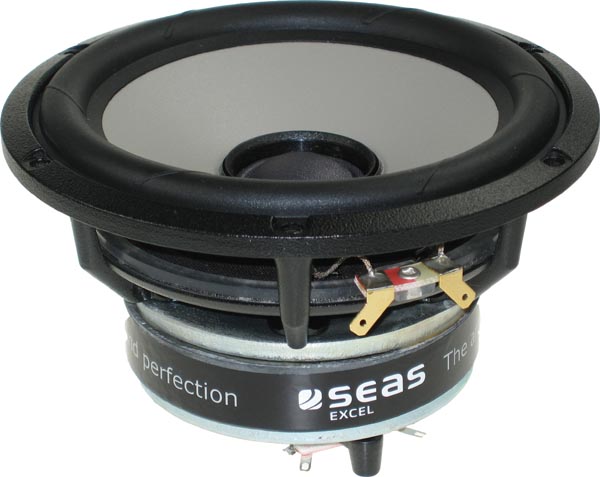

SEAS
