Overview
LF DriverExcel series
SEAS
SEAS E0051-04/06 C16N001/F
SEAS E0051-04/06 C16N001/F is a 6.5" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 37Hz, Qts 0.49, Vas 15L, Xmax 7mm, sensitivity 83.2dB, plus 66cm³ Vd and 64 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
80W
Sensitivity
83.2dB
85.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
64
Either alignment
Vd
66cm³

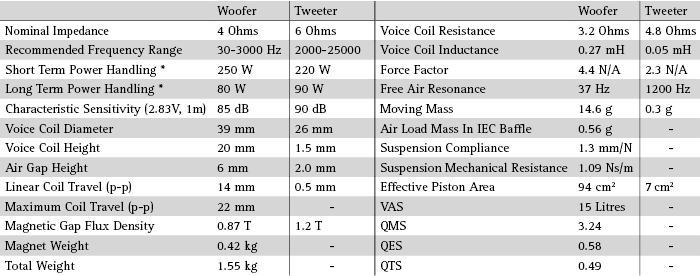

Overall Parameters
Valid
Fs37Hz
Qts0.49
Qes0.58
Qms3.2
Vas15.0L
Re3.2Ω
Le0.27mH
BL4.4Tm
Sd94cm²
Mms15g
Xmax7.0mm
SPL83dB
Power80W
Impedance4Ω
F Low30Hz
F High3000Hz
Voice Coil39mm
Flux Density0.87T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Driver Components
LFPrimary
6.5"Fs37 Hz
Qts0.49
Qes0.58
Qms3.2
Vas15.0 L
Re3.2 Ω
Le0.27 mH
BL4.4 Tm
Sd94 cm²
Mms15 g
Xmax7.0 mm
SPL83 dB
Power80 W
Impedance4 Ω
F Low30 Hz
F High3000 Hz
Voice Coil39 mm
Flux Density0.87 T
Cms1.3
Power Peak250
Rms1.09
Xmech11

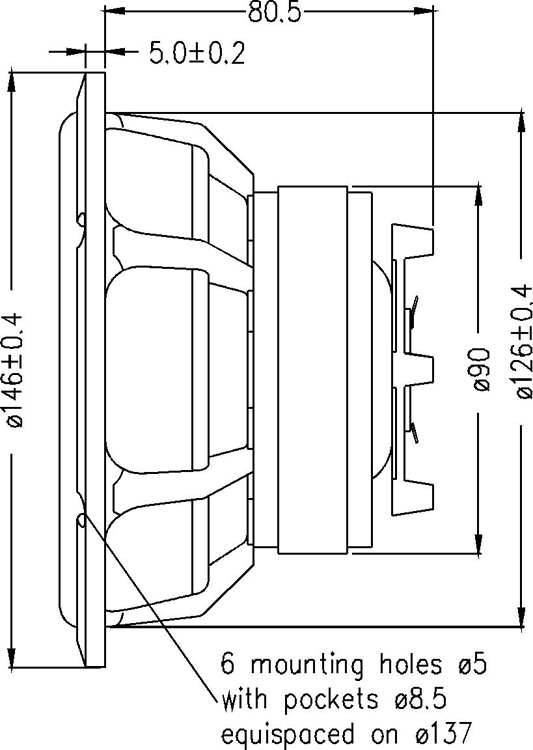

Section dimensions
Weight1550.0 kg
