Overview
LF DriverFR series
Visaton

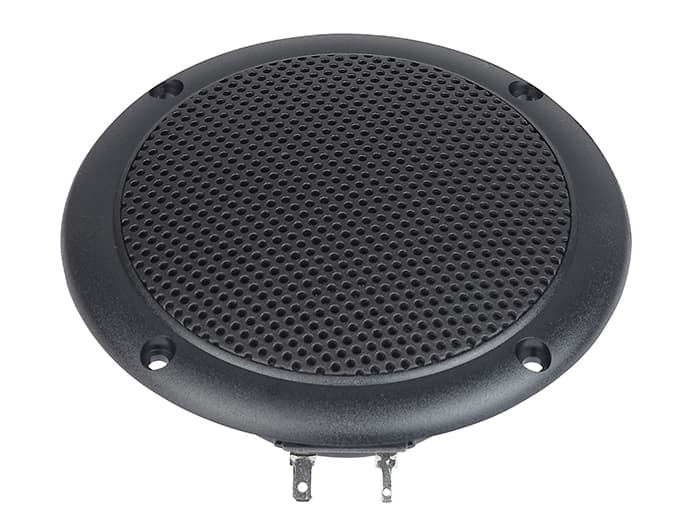

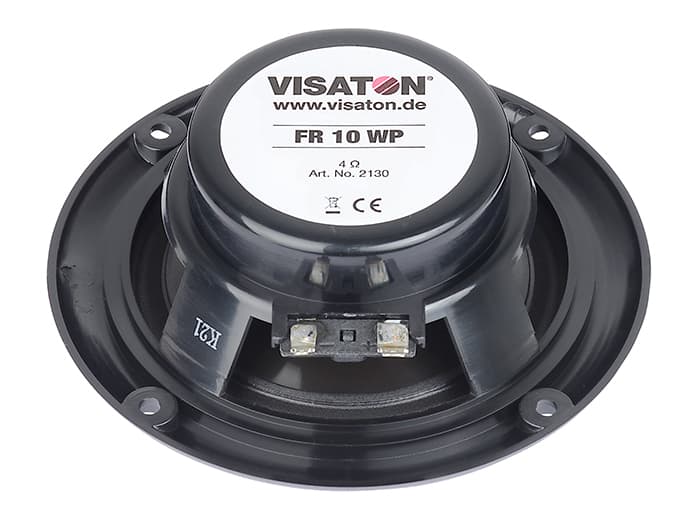

Visaton FR 10 WP - 4 OHM
Visaton FR 10 WP - 4 OHM is a 4" 4 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 120Hz, Qts 1.27, Vas 2.1L, Xmax 2mm, sensitivity 84.3dB, plus 10cm³ Vd and 56 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
20W
Sensitivity
84.3dB
EBP
56
Either alignment
Vd
10cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence489 selected pixels of 489
T/S Parameters
Valid
Fs120Hz
Qts1.27
Qes2.14
Qms3.1
Vas2.1L
Re3.8Ω
Le0.30mH
BL2.8Tm
Sd50cm²
Mms5g
Xmax2.0mm
SPL84dB
Power20W
Impedance4Ω
F Low80Hz
F High16000Hz
Voice Coil20mm
Flux Density0.85T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter100.0mm
Cutout Diameter101.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 10 WP - 4 OHM
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
10 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FR 10 WP
4"
Xmax2mm0%
Qts1.270%
BL2.8Tm0%
Vas2.1L0%
Qes2.140%
83%
Similarity
Visaton

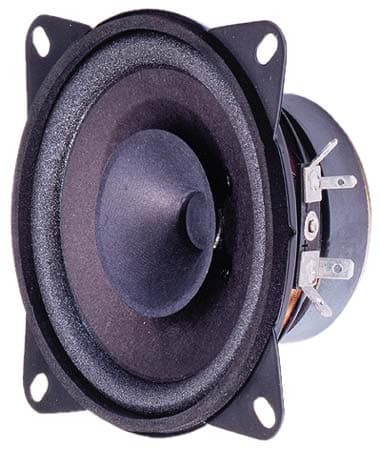

FR 10 HM - 8 Ohm
4"
Xmax2mm0%
Qts1.44+13%
BL2.9Tm+5%
Vas2L-5%
Qes1.91-11%
68%
Similarity
Visaton
FR 10 HM - 4 Ohm
4"
Xmax2mm0%
Qts1.13-11%
BL2.1Tm-24%
Vas2.1L0%
Qes1.44-33%
58%
Similarity
Visaton
FR 87
3.5"
Xmax2mm0%
Qts1.25-2%
BL2.1Tm-24%
Vas1.3L-38%
Qes1.56-27%
58%
Similarity
Visaton
FR 87 - 4 OHM
3.5"
Xmax2mm0%
Qts1.25-2%
BL2.1Tm-24%
Vas1.3L-38%
Qes1.56-27%
56%
Similarity
Visaton
R 10 S - 4 Ohm
4"
Xmax1.5mm-25%
Qts1.45+14%
BL1.9Tm-31%
Vas1.9L-10%
Qes1.96-8%
55%
Similarity
Visaton

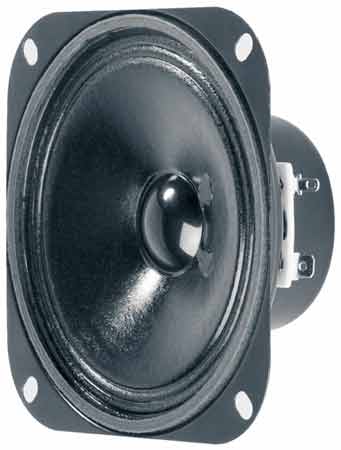

R 10 SC - 4 OHM
4"
Xmax1.5mm-25%
Qts1.32+4%
BL2Tm-27%
Vas2.6L+24%
Qes1.67-22%
51%
Similarity
Visaton

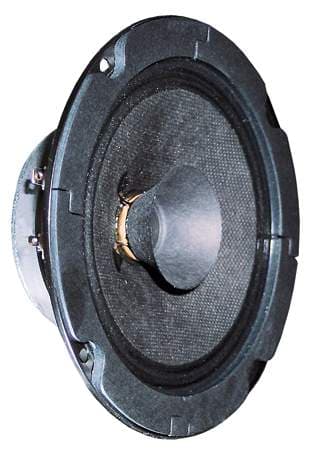

BG 13 P - 8 Ohm
