Overview
LF DriverNERO series
SB Audience
SB Audience NERO-6MRN150D
SB Audience NERO-6MRN150D is a 6" 300 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 200Hz, Qts 0.48, Vas 1.1L, Xmax 3.4mm, sensitivity 93.8dB, plus 47cm³ Vd and 345 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
300Ω
RMS Power
200W
Sensitivity
93.8dB
EBP
345
Vented alignment
Vd
47cm³
T/S Parameters
Valid
Fs200Hz
Qts0.48
Qes0.58
Qms3.0
Vas1.1L
Re5.6Ω
Le0.28mH
BL13.1Tm
Sd137cm²
Mms14g
Xmax3.4mm
SPL94dB
Power200W
Impedance300Ω
Min Impedance98.0Ω
Voice Coil9mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

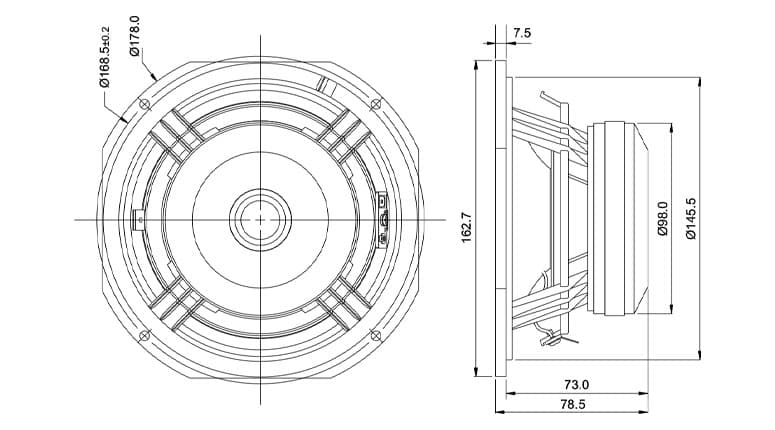

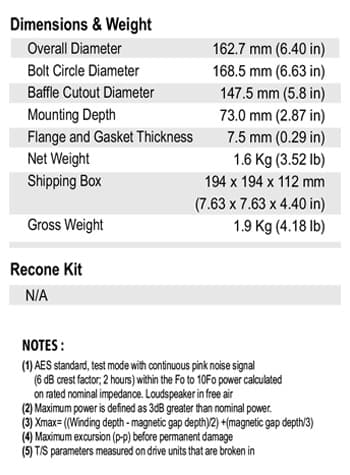

Dimensions & Physical
Diameter162.7mm
Cutout Diameter162.7mm
