Monacor SPH-8M 8Ω
8 Ω · 3–2500 Hz
£93.66
2.4%Willys-Hifi · All 4 offers
- Fs
- 35Hz
- Xmax
- 4.5mm
- SPL
- 88dB
- Pe
- 100W
- BL
- 9.0T·m
- Vd
- 108cm³
- Qts
- 0.41
- Vas
- 44L

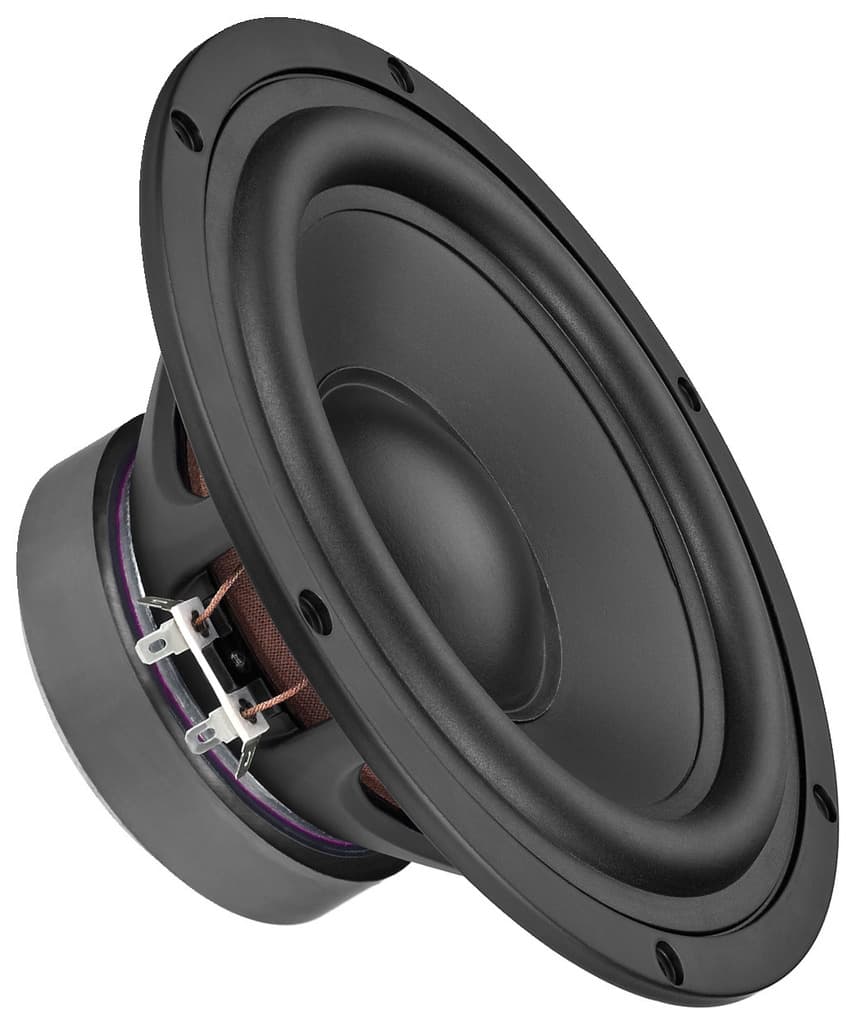

Monacor SPH-8M is a 0.75-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.41, Vas 44 L, Xmax 4.5 mm, sensitivity 87.8 dB, plus 108 cm³ Vd and 70 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £93.66.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.41
- Qes
- 0.50
- Qms
- 2.3
- Vas
- 44L
- Re
- 6.5Ω
- Le
- 0.78mH
Motor and cone
- BL
- 9.0T·m
- Sd
- 240cm²
- Mms
- 27g
- Xmax
- 4.5mm
- Vd †
- 108cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 89dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 3–2500Hz
- EBP †
- 70 · Sealed or vented

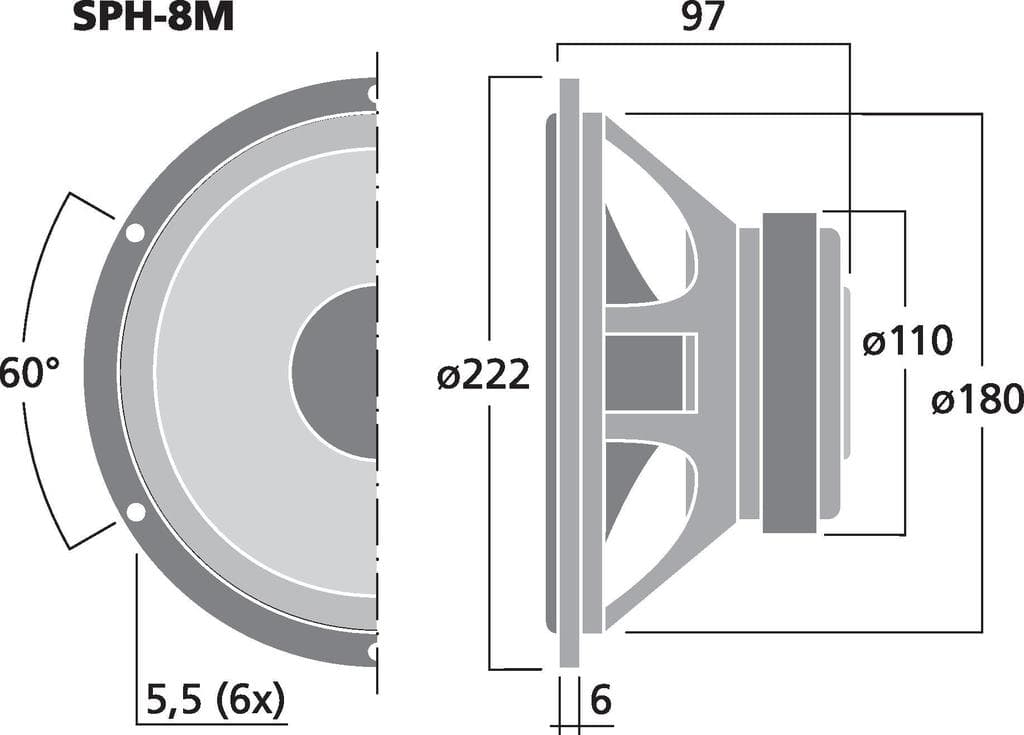

Size and mounting
- Diameter
- 222mm
- Cutout
- 180mm
- Depth
- 97mm
- Weight
- 2.2kg
Other published values
- Cms
- 0.71mm/N
- Power Peak
- 150
Other dimensions
- Mounting Depth
- 91

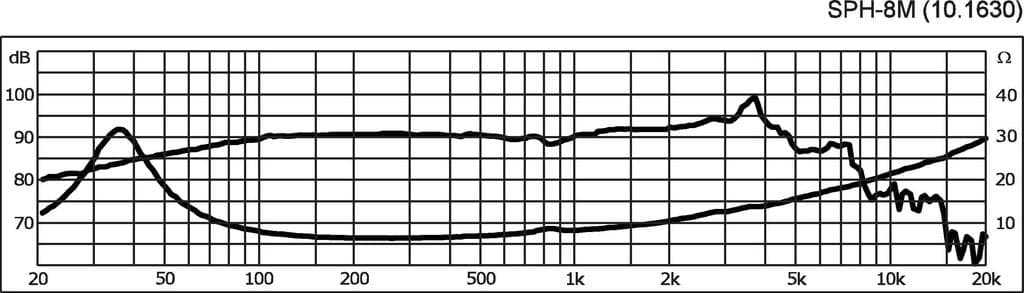

Sensitivity shows 87.8 dB, calculated from the T/S values. Monacor publishes 89.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 0.75″
- BL
- 9.0T·m
- Fs
- 35Hz
- Le
- 0.78mH
- Re
- 6.5Ω
- Sd
- 240cm²
- Cms
- 0.71mm/N
- Mms
- 27g
- Qes
- 0.50
- Qms
- 2.3
- Qts
- 0.41
- SPL
- 87.8dB
- Vas
- 44L
- Xmax
- 4.5mm
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 150
- Sensitivity
- 89dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 87.8dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 38mm
- Weight
- 2.2kg
- Diameter
- 222mm
- Depth
- 97mm
- Mounting Depth
- 91
- Cutout
- 180mm
