Overview
LF DriverAlpair series
Markaudio

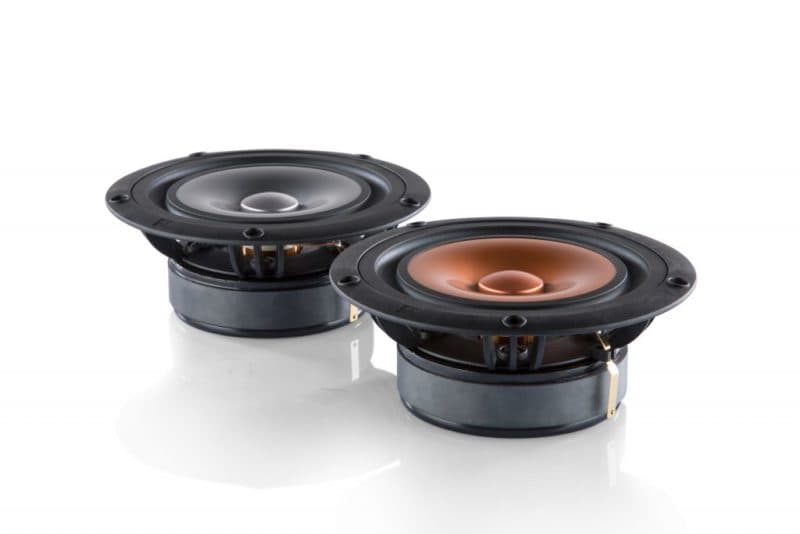

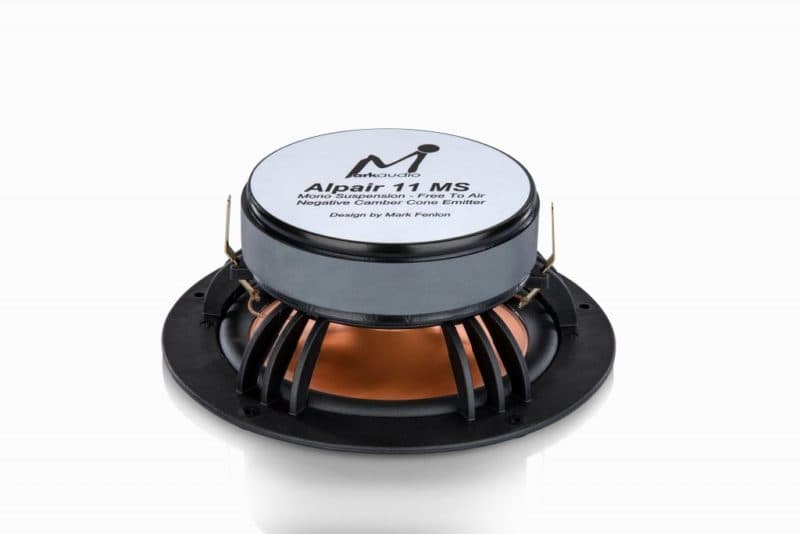

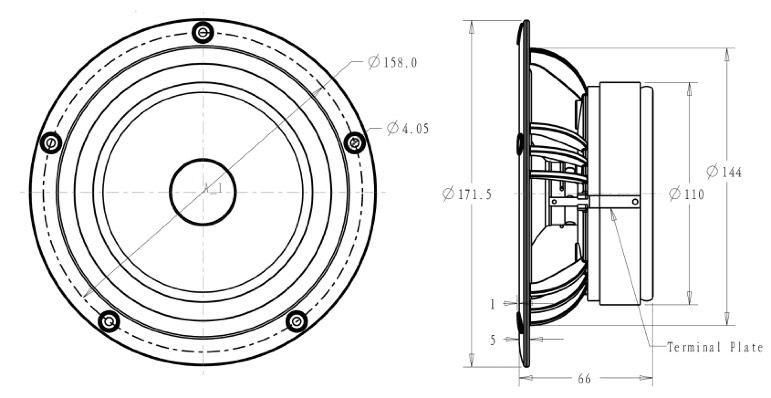

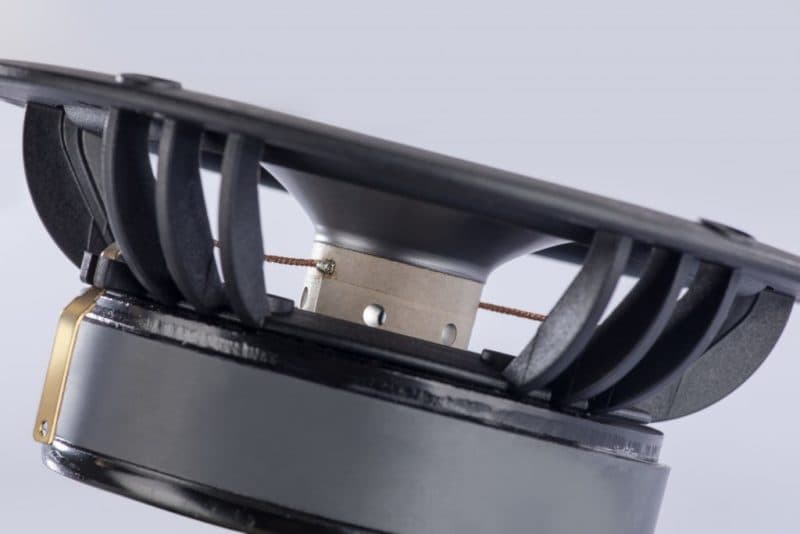

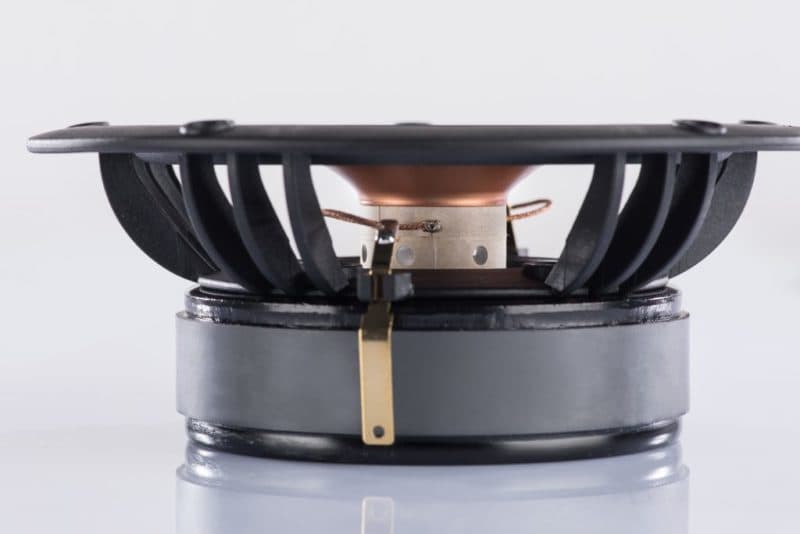

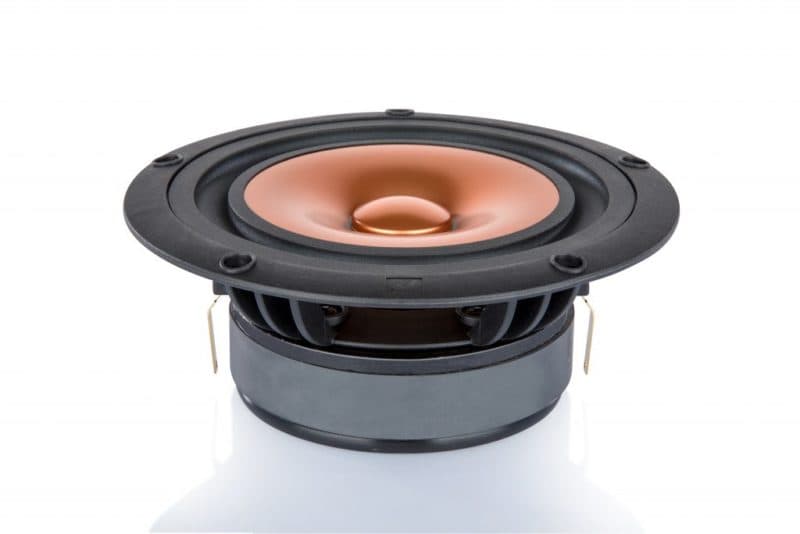

Markaudio ALPAIR 11
Markaudio ALPAIR 11 is a 4.25" 7.2 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 44Hz, Qts 0.34, Vas 17.7L, Xmax 8mm, sensitivity 87.6dB, plus 89cm³ Vd and 107 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10560.00.
Size
4.25"
Impedance
7.2Ω
RMS Power
35W
Sensitivity
87.6dB
EBP
107
Vented alignment
Vd
89cm³
T/S Parameters
Valid
Fs44Hz
Qts0.34
Qes0.41
Qms2.2
Vas17.7L
Re7.2Ω
Le0.06mH
BL7.8Tm
Sd111cm²
Mms12g
Xmax8.0mm
SPL88dB
Power35W
Impedance7Ω
Pricing & availability
Price definitionsPrice movement
Best current price
£10,560.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
