Overview
LF Driver
Dayton Audio
Dayton Audio APOLLO 6N
Dayton Audio APOLLO 6N is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 103Hz, Qts 0.28, Vas 3.5L, Xmax 3.8mm, sensitivity 93.2dB, plus 50cm³ Vd and 354 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.2dB
94.4dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
354
Vented alignment
Vd
50cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
45 degrees240 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence974 selected pixels of 1,942 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence2,081 selected pixels of 2,081 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence2,263 selected pixels of 2,263
T/S Parameters
Valid
Fs103Hz
Qts0.28
Qes0.29
Qms8.0
Vas3.5L
Re6.1Ω
Le1.29mH
BL14.9Tm
Sd133cm²
Mms17g
Xmax3.8mm
SPL93dB
Power200W
Impedance8Ω
F Low90Hz
F High8000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
Diameter167.5mm
Overall Depth79.5mm
Cutout Diameter146.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
APOLLO 6N
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
£84.62

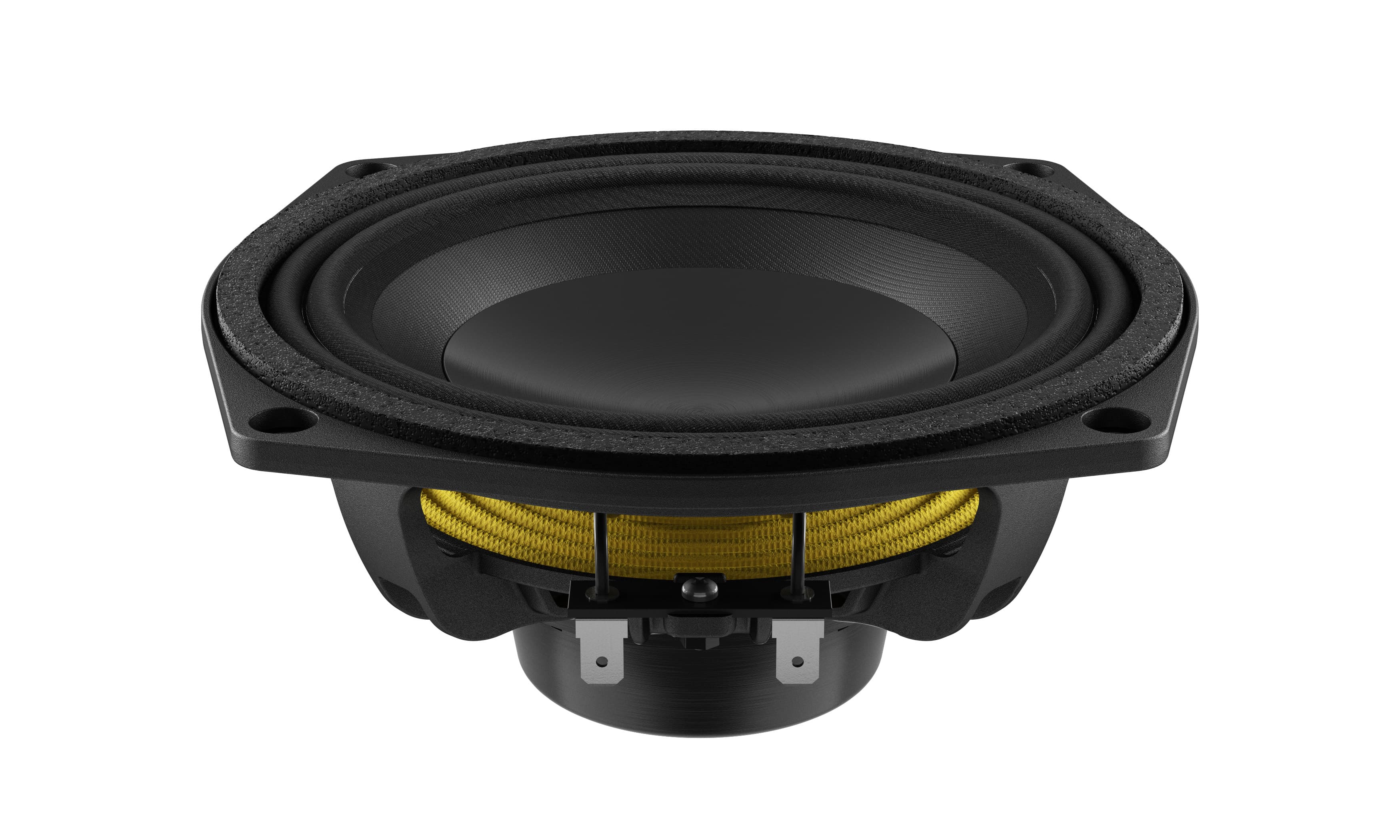

Lavoce
MAN062.00
6.5"
Xmax3.9mm+3%
Qts0.3+7%
BL12.7Tm-15%
Vas4.1L+16%
Qes0.33+14%
67%
Similarity
£74.45

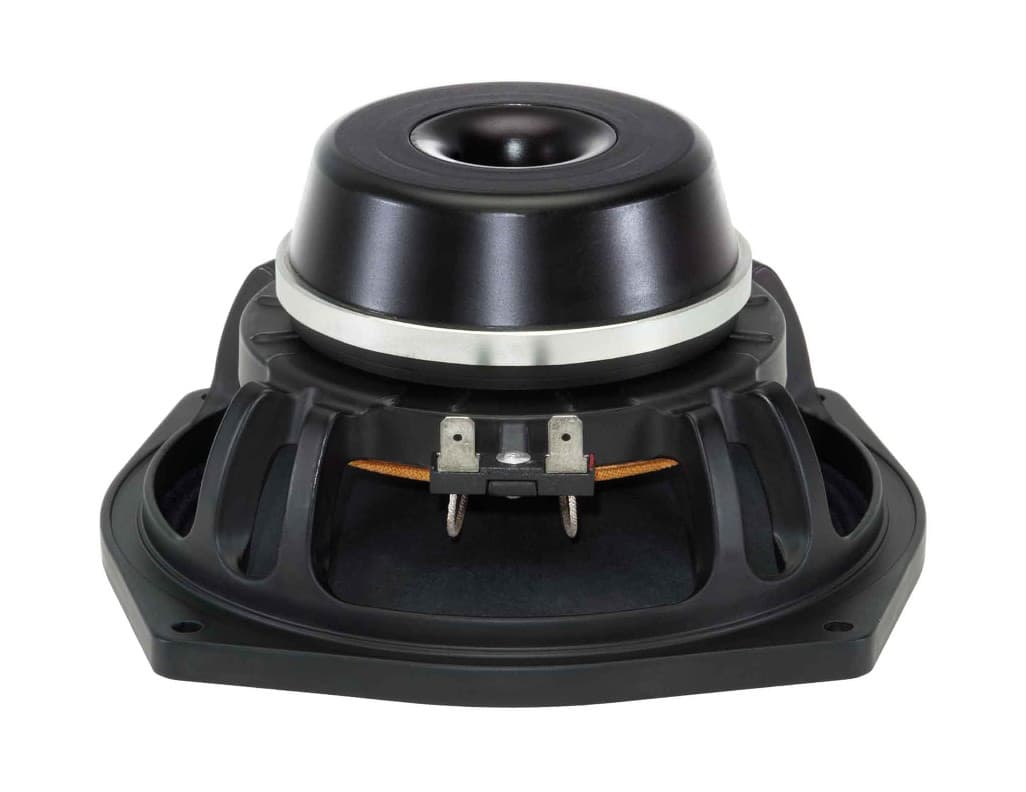

B&C
