Overview
LF Driver
BMS
BMS 18N860
BMS 18N860 is a 18" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 25Hz, Qts 0.37, Vas 304L, Xmax 19mm, sensitivity 92.7dB, plus 2305cm³ Vd and 62 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1500W
Sensitivity
92.7dB
95.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
62
Either alignment
Vd
2305cm³
T/S Parameters
Valid
Fs25Hz
Qts0.37
Qes0.40
Qms5.3
Vas304.0L
Re5.7Ω
Le0.81mH
BL24.9Tm
Sd1213cm²
Mms277g
Xmax19.0mm
SPL93dB
Power1500W
Impedance8Ω
F Low20Hz
F High200Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

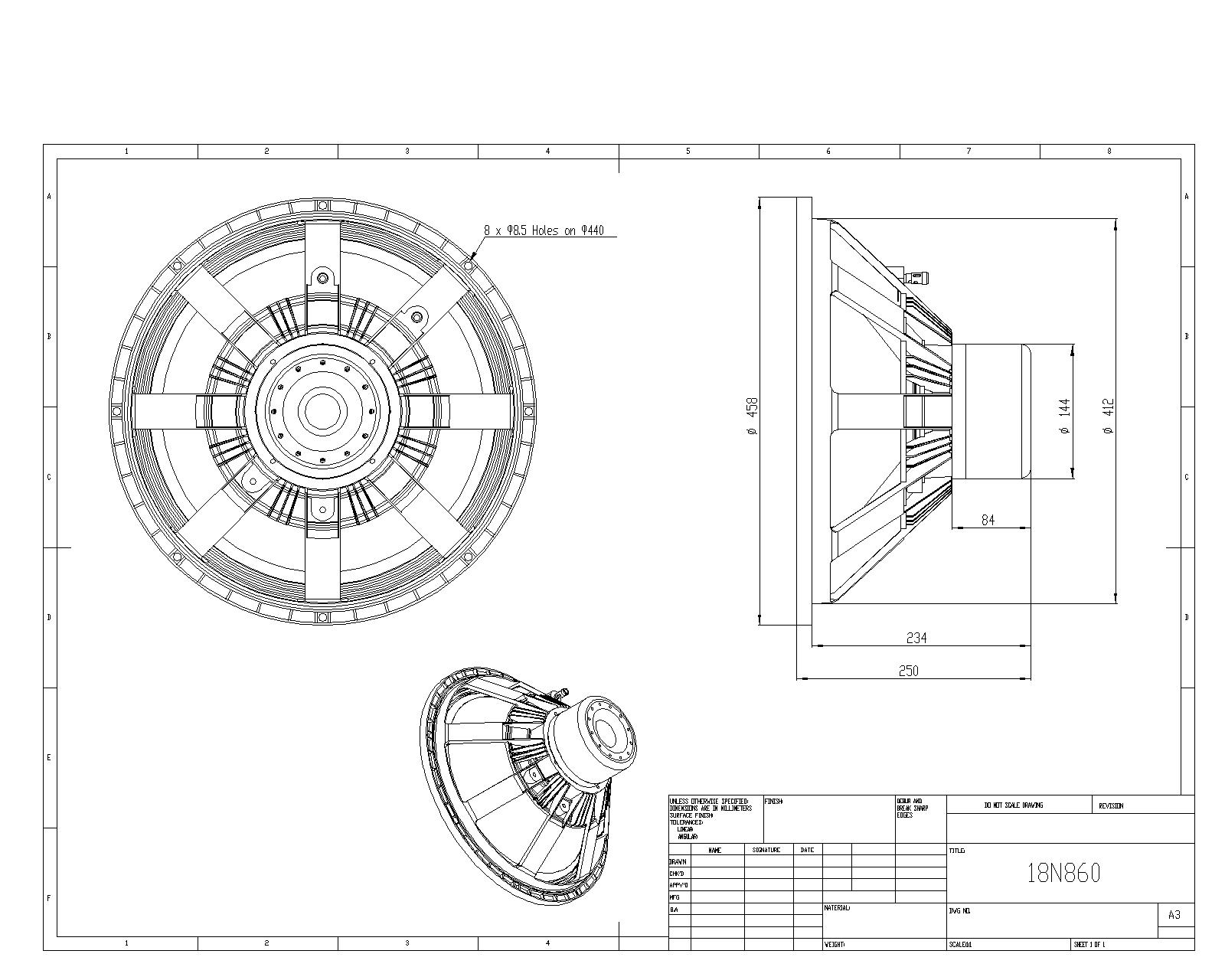

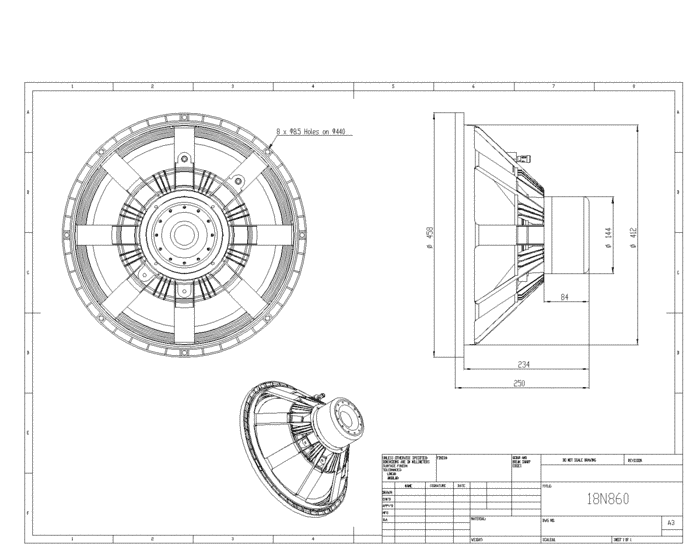

Dimensions & Physical
Weight10.5kg
Diameter458.0mm
Overall Depth250.0mm
Cutout Diameter412.0mm
Bolt Circle Diameter440.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
BMS
18N860
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
BMS
18N862
18"
Xmax19mm0%
Qts0.34-8%
BL25.5Tm+2%
Vas312L+3%
Qes0.36-10%
80%
Similarity
£425.00
FaitalPRO
18XL1800
18"
Xmax20.2mm+6%
Qts0.4+8%
BL25.4Tm+2%
Vas215.5L-29%
Qes0.42+5%
Image unavailable
76%
Similarity
£432.00
Precision Devices
PD.1845-2N
18"
Xmax18mm-5%
Qts0.39+5%
BL27Tm+8%
Vas157L-48%
Qes0.40%
69%
Similarity
£433.43
FaitalPRO
18FX800
18"
Xmax13.8mm-27%
Qts0.4+8%
BL24Tm-4%
Vas247L-19%
Qes0.43+7%
69%
Similarity
£486.84
Eighteen Sound
18NLS4000
18"
Xmax22.3mm+17%
Qts0.35-5%
BL24.2Tm-3%
Vas168L-45%
Qes0.36-10%
67%
Similarity
£515.67
Eminence
NSW4018-8
18"
Xmax15.2mm-20%
Qts0.38+3%
BL28.2Tm+13%
Vas164.5L-46%
Qes0.39-3%
65%
Similarity
RCF
LF18N408
18"
Xmax15mm-21%
Qts0.33-11%
BL25.7Tm+3%
Vas193L-37%
Qes0.36-10%
63%
Similarity

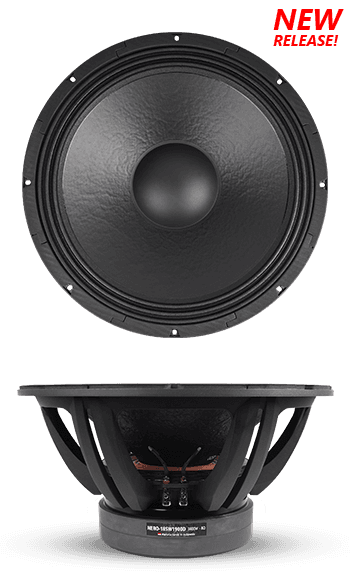

SB Audience
