LF Driver
Beyma
Beyma 118LX60V2S8
Beyma 118LX60V2S8 is a 18" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 35Hz, Qts 0.48, Vas 236L, Xmax 8mm, sensitivity 95.1dB, plus 1056cm³ Vd and 70 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.1dB
98.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
70
Either alignment
Vd
1056cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,605 selected pixels of 4,446 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,555 selected pixels of 3,555
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs35Hz
Qts0.48
Qes0.50
Qms15.7
Vas236.0L
Re5.1Ω
Le2.10mH
BL21.8Tm
Sd1320cm²
Mms215g
Xmax8.0mm
SPL95dB
Power700W
Impedance8Ω
F Low25Hz
F High1000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
118LX60V2S8
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
£205.00
B&C
18PS100
18"
Xmax8mm0%
Qts0.39-19%
BL22.5Tm+3%
Vas245L+4%
Qes0.41-18%
75%
Similarity
PRV Audio
18SW2000
18"
Xmax9.6mm+20%
Qts0.45-6%
BL22.1Tm+1%
Vas289.9L+23%
Qes0.47-6%
73%
Similarity
£185.00
Beyma
18WRS600
18"
Xmax8.5mm+6%
Qts0.47-2%
BL19Tm-13%
Vas354L+50%
Qes0.48-4%
70%
Similarity
£205.00
B&C
18PS100
18"
Xmax7mm-12%
Qts0.4-17%
BL20Tm-8%
Vas251L+6%
Qes0.42-16%
69%
Similarity
£252.44
FaitalPRO
18HP1010
18"
Xmax9.8mm+22%
Qts0.4-17%
BL22Tm+1%
Vas240.1L+2%
Qes0.42-16%
68%
Similarity
£151.79

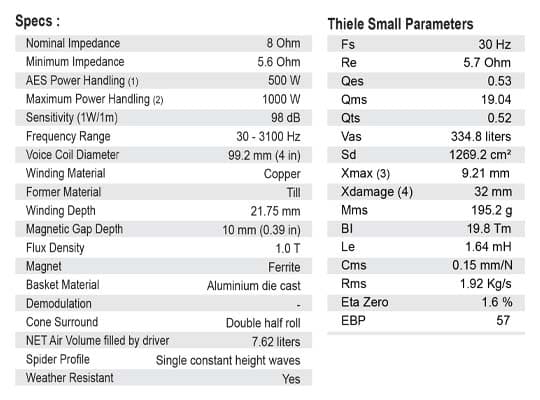

SB Audience
BIANCO-18SW500
18"
Xmax9.2mm+15%
Qts0.52+8%
BL19.8Tm-9%
Vas334.8L+42%
Qes0.53+6%
67%
Similarity
Monacor
FTR18-4080HDX/8
18"
Xmax10.1mm+26%
Qts0.43-11%
BL21.3Tm-2%
Vas174.9L-26%
Qes0.47-7%
67%
Similarity
£237.20
Celestion
FTR18-4080HDX
18"
Xmax10.1mm+26%
Qts0.43-11%
BL21.3Tm-2%
Vas174.9L-26%
Qes0.47-7%
66%
Similarity
£249.41
FaitalPRO
18HP1042
18"
Xmax9mm+13%
Qts0.41-15%
BL24.5Tm+12%
Vas191.9L-19%
Qes0.43-14%
63%
Similarity
£291.00
Eminence
KILOMAX PRO-18A
18"
Xmax10mm+25%
Qts0.47-2%
BL17.2Tm-21%
Vas331.5L+40%
Qes0.49-2%
59%
Similarity
£229.99
B&C
18PZW100
18"
Xmax8mm0%
Qts0.36-25%
BL25.5Tm+17%
Vas186L-21%
Qes0.38-24%
59%
Similarity
£230.00
Celestion
ERPROX18
18"
Xmax9.5mm+19%
Qts0.38-21%
BL24.4Tm+12%
Vas188.9L-20%
Qes0.43-14%
