Overview
LF Driver
Beyma
Beyma 108CX3NDN8
Beyma 108CX3NDN8 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 61Hz, Qts 0.29, Vas 23L, Xmax 6mm, sensitivity 94.4dB, plus 132cm³ Vd and 203 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
203
Vented alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,235 selected pixels of 8,074
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs61Hz
Qts0.29
Qes0.30
Qms13.0
Vas23.0L
Re5.4Ω
Le0.30mH
BL12.0Tm
Sd220cm²
Mms20g
Xmax6.0mm
SPL94dB
Power250W
Impedance8Ω
F Low60Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
108CX3NDN8
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
96%
Similarity
£113.58
B&C
8MBX51
8"
Xmax6mm0%
Qts0.290%
BL11.4Tm-5%
Vas23L0%
Qes0.31+3%
90%
Similarity
Monacor
SPH-225C
8"
Xmax6mm0%
Qts0.3+3%
BL13.2Tm+10%
Vas24L+4%
Qes0.31+3%
89%
Similarity
Beyma
108P3FEN8
8"
Xmax6mm0%
Qts0.31+7%
BL11.6Tm-3%
Vas24.8L+8%
Qes0.32+7%
86%
Similarity
£80.08
B&C
8FMB51
8"
Xmax5.5mm-8%
Qts0.28-3%
BL11.3Tm-6%
Vas20.7L-10%
Qes0.31+3%
84%
Similarity
£225.53
B&C
8CXN51
8"
Xmax6mm0%
Qts0.27-7%
BL12.6Tm+5%
Vas17L-26%
Qes0.29-3%
76%
Similarity
Monacor
SP-8/150PRO
8"
Xmax6mm0%
Qts0.32+10%
BL12Tm0%
Vas22L-4%
Qes0.41+37%
75%
Similarity
£106.30
B&C
8FG51
8"
Xmax6.5mm+8%
Qts0.32+10%
BL12.9Tm+8%
Vas20L-13%
Qes0.34+13%
75%
Similarity
£231.79
FaitalPRO
8HX240
8"
Xmax6.2mm+3%
Qts0.3+3%
BL13.8Tm+15%
Vas12.9L-44%
Qes0.31+3%
75%
Similarity
£75.85
Beyma
8WRS300
8"
Xmax6mm0%
Qts0.28-3%
BL15.2Tm+27%
Vas15L-35%
Qes0.30%
75%
Similarity
£111.65
FaitalPRO
8RS350
8"
Xmax7.4mm+23%
Qts0.3+3%
BL13.9Tm+16%
Vas23.7L+3%
Qes0.31+3%
75%
Similarity
£191.24
FaitalPRO
8HX230
8"
Xmax6.2mm+3%
Qts0.290%
BL15Tm+25%
Vas14.7L-36%
Qes0.31+3%
75%
Similarity

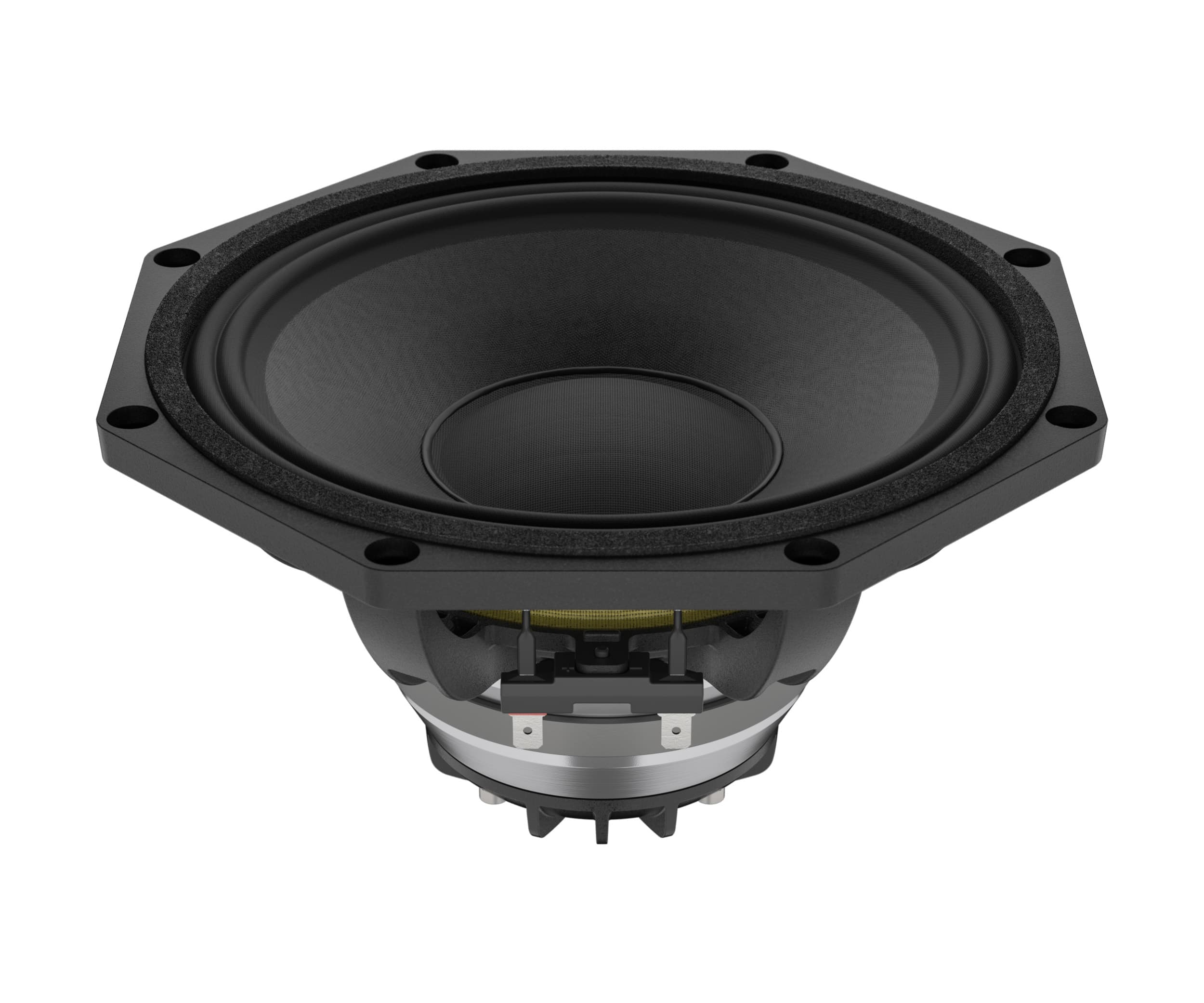

Lavoce
