Overview
LF Driver
Beyma
Beyma 105CX2NDN8
Beyma 105CX2NDN8 is a 5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 75Hz, Qts 0.28, Vas 9.1L, Xmax 5.7mm, sensitivity 93.4dB, plus 54cm³ Vd and 268 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
150W
Sensitivity
93.4dB
EBP
268
Vented alignment
Vd
54cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs75Hz
Qts0.28
Qes0.28
Qms10.0
Vas9.1L
Re5.2Ω
Le0.20mH
BL7.3Tm
Sd95cm²
Mms6g
Xmax5.7mm
SPL93dB
Power150W
Impedance8Ω
F Low75Hz
F High20000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
105CX2NDN8
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
£103.00
CIARE
HWG130
5"
Xmax6.5mm+14%
Qts0.280%
BL7.8Tm+7%
Vas12.5L+37%
Qes0.3+7%
69%
Similarity
SB Acoustics
MR13TX-4
5"
Xmax6mm+5%
Qts0.27-4%
BL4.9Tm-33%
Vas12.2L+34%
Qes0.280%
67%
Similarity
£115.00
SB Acoustics
MR13PNW-8
5"
Xmax6mm+5%
Qts0.3+7%
BL6.2Tm-15%
Vas12.9L+42%
Qes0.32+14%
66%
Similarity

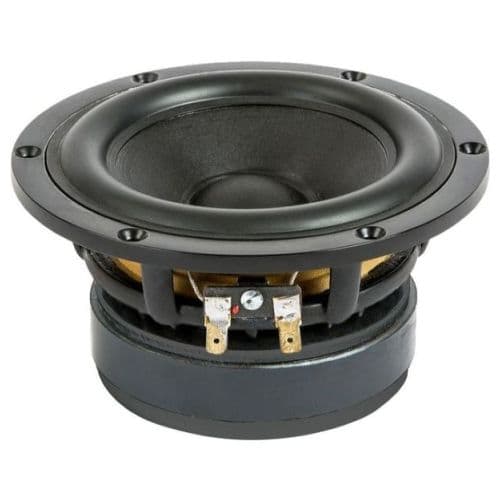

CIARE
