Overview
LF DriverTI series
Visaton

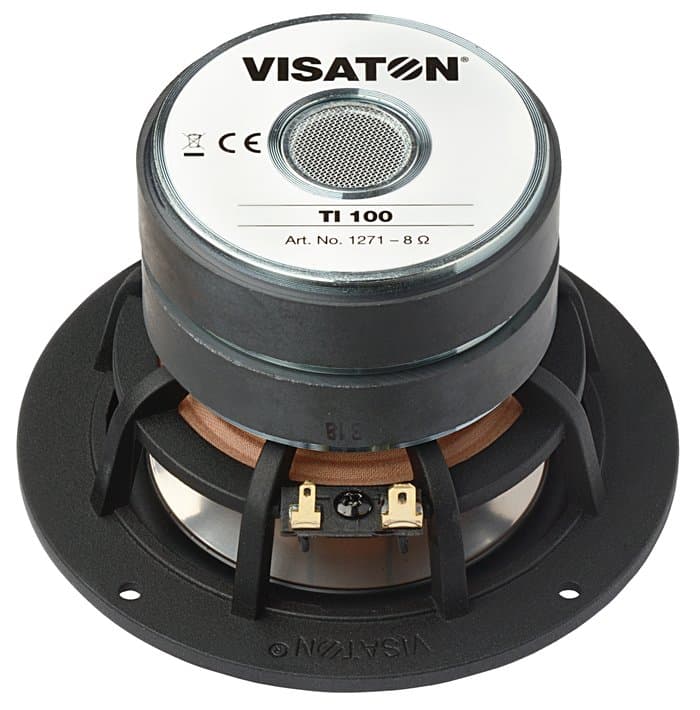

Visaton TI 100 - 8 OHM
Visaton TI 100 - 8 OHM is a 4" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 62Hz, Qts 0.41, Vas 5.7L, Xmax 4mm, sensitivity 86.9dB, plus 22cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
40W
Sensitivity
86.9dB
EBP
141
Vented alignment
Vd
22cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence871 selected pixels of 994
T/S Parameters
Valid
Fs62Hz
Qts0.41
Qes0.44
Qms6.0
Vas5.7L
Re6.4Ω
Le0.70mH
BL5.0Tm
Sd54cm²
Mms4g
Xmax4.0mm
SPL87dB
Power40W
Impedance8Ω
F High20000Hz
Voice Coil21mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Diameter100.0mm
Cutout Diameter101.0mm
