LF DriverSC series
Visaton
Visaton SC 8 N - 8 OHM
Visaton SC 8 N - 8 OHM is a 3.5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 110Hz, Qts 0.97, Vas 1.5L, Xmax 3mm, sensitivity 83.9dB, plus 8cm³ Vd and 84 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3.5"
Impedance
8Ω
RMS Power
30W
Sensitivity
83.9dB
81.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
84
Either alignment
Vd
8cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence733 selected pixels of 1,445
T/S Parameters
Valid
Fs110Hz
Qts0.97
Qes1.31
Qms3.7
Vas1.5L
Re7.0Ω
Le0.30mH
BL2.4Tm
Sd26cm²
Mms2g
Xmax3.0mm
SPL84dB
Power30W
Impedance8Ω
F Low70Hz
F High20000Hz
Voice Coil20mm
Flux Density0.90T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter80.0mm
Cutout Diameter73.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
SC 8 N - 8 OHM
3.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
80%
Similarity
Peerless
TC9FD00-04
3.5"
Xmax2.9mm-3%
Qts1+3%
BL2.3Tm-3%
Vas0.7L-51%
Qes1.33+2%
58%
Similarity
Peerless
TC8FD00-08
3"
Xmax3.4mm+13%
Qts0.96-1%
BL3.1Tm+31%
Vas1L-32%
Qes1.29-2%
58%
Similarity
£14.65
Peerless
PLS-P830987
3"
Xmax3.4mm+13%
Qts1+3%
BL3Tm+24%
Vas1L-34%
Qes1.22-7%
58%
Similarity
Visaton
FRS 8 - 8 Ohm
3.5"
Xmax2.5mm-17%
Qts1.04+7%
BL3.2Tm+33%
Vas0.9L-40%
Qes1.32+1%
58%
Similarity
Peerless
TC8FD00-04
3"
Xmax3.7mm+24%
Qts0.94-3%
BL2.4Tm+1%
Vas0.7L-54%
Qes1.4+7%
Image unavailable
56%
Similarity
Wavecor
FR090WA01
3.5"
Xmax2.3mm-25%
Qts0.88-9%
BL2.8Tm+15%
Vas1.1L-29%
Qes1.03-21%
55%
Similarity
£15.35

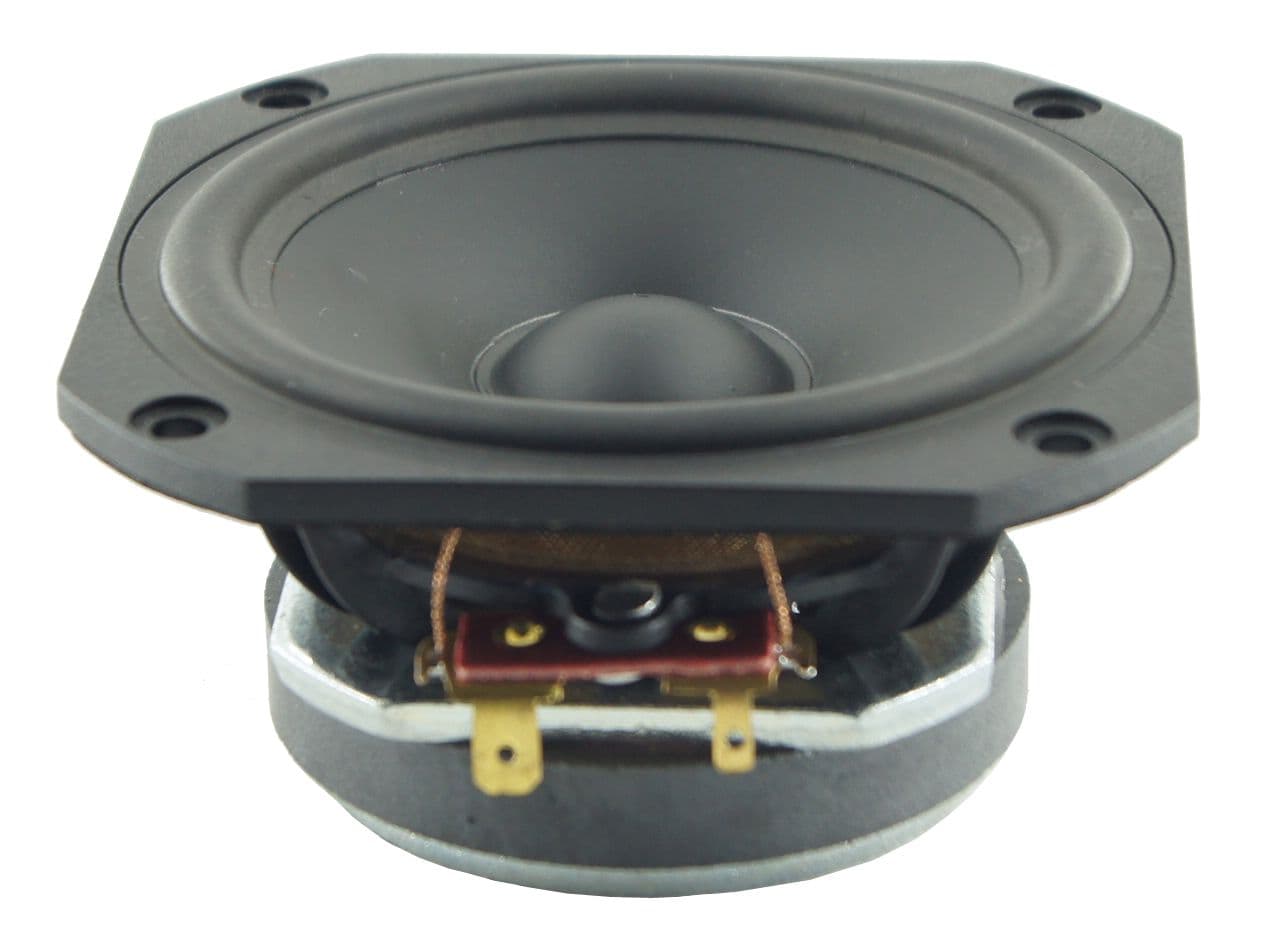

Peerless
TC9FD18-08
3.5"
Xmax3.9mm+29%
Qts0.970%
BL3.1Tm+30%
Vas1L-35%
Qes1.44+10%
Image unavailable
52%
Similarity
Wavecor
WF090WA01
3.5"
Xmax2.8mm-8%
Qts0.81-16%
BL2.9Tm+21%
Vas1L-32%
Qes0.92-30%
Image unavailable
50%
Similarity
Wavecor
FR084OM01
3"
Xmax2.3mm-25%
Qts0.92-5%
BL2.8Tm+15%
Vas1.1L-28%
Qes1.02-22%
Image unavailable
46%
Similarity
Wavecor
FR070OM02
3"
Xmax2.5mm-17%
Qts1+3%
BL2.9Tm+21%
Vas0.6L-60%
Qes1.08-18%
Image unavailable
40%
Similarity
Wavecor
FR070OM01
3"
Xmax2.5mm-17%
Qts0.83-14%
BL2.3Tm-4%
Vas0.6L-60%
Qes0.89-32%
40%
Similarity
Peerless
TG9FD10-08
3.5"
Xmax3.9mm+29%
Qts1.1+13%
BL3.1Tm+29%
Vas0.9L-38%
Qes1.61+23%
