Overview
LF DriverFR series
Visaton

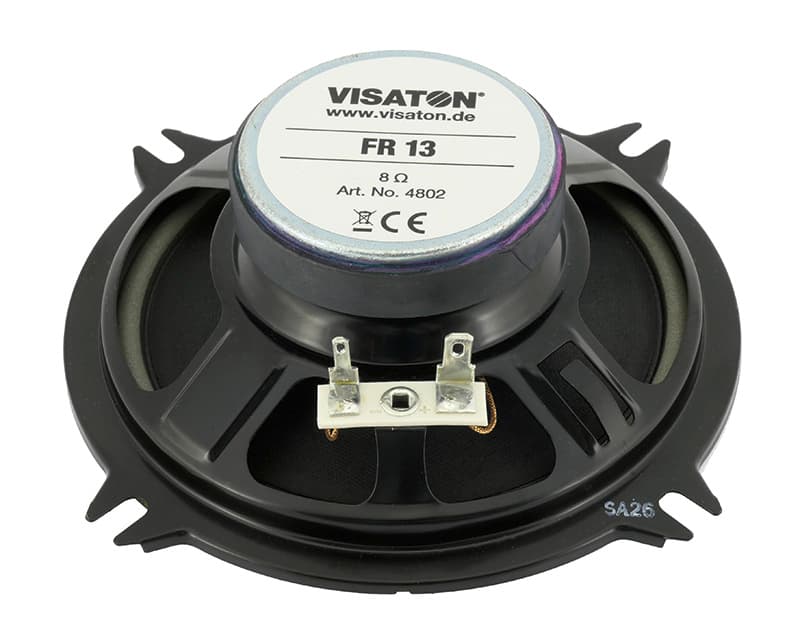

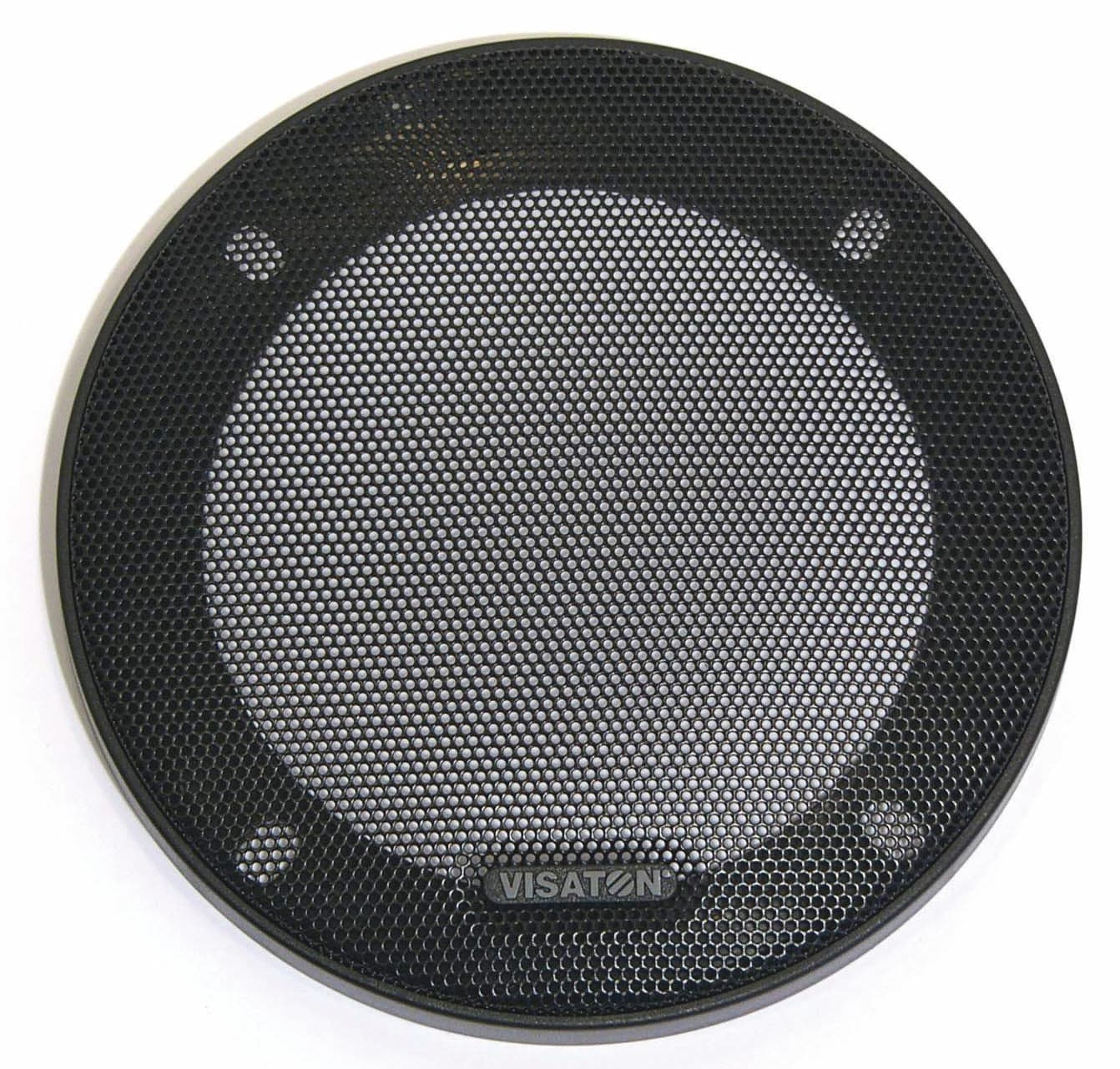

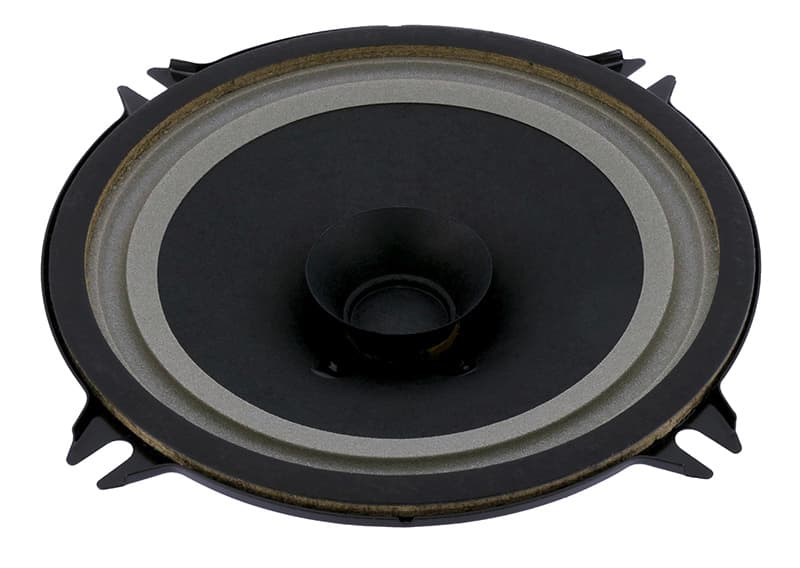

Visaton FR 13 - 8 OHM
Visaton FR 13 - 8 OHM is a 5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 100Hz, Qts 1.25, Vas 6.1L, Xmax 2.5mm, sensitivity 87.7dB, plus 22cm³ Vd and 61 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
30W
Sensitivity
87.7dB
EBP
61
Either alignment
Vd
22cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsSource file SHA-256 1bde2c4bc7b1…Medium confidence514 selected pixels of 1,386 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 1bde2c4bc7b1…Medium confidence680 selected pixels of 1,123
T/S Parameters
Valid
Fs100Hz
Qts1.25
Qes1.64
Qms5.2
Vas6.1L
Re3.4Ω
Le0.20mH
BL2.3Tm
Sd87cm²
Mms5g
Xmax2.5mm
SPL88dB
Power30W
Impedance8Ω
F Low65Hz
F High20000Hz
Voice Coil20mm
Flux Density0.85T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter130.0mm
Cutout Diameter116.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 13 - 8 OHM
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FR 13
5"
Xmax2.5mm0%
Qts1.250%
BL2.3Tm0%
Vas6.1L0%
Qes1.640%
100%
Similarity
Visaton
FR 13 - 4 Ohm
5"
Xmax2.5mm0%
Qts1.250%
BL2.3Tm0%
Vas6.1L0%
Qes1.640%
74%
Similarity
Visaton
FR 13 WP
5"
Xmax2.5mm0%
Qts1.17-6%
BL2.3Tm0%
Vas4.4L-28%
Qes2.19+34%
74%
Similarity
Visaton

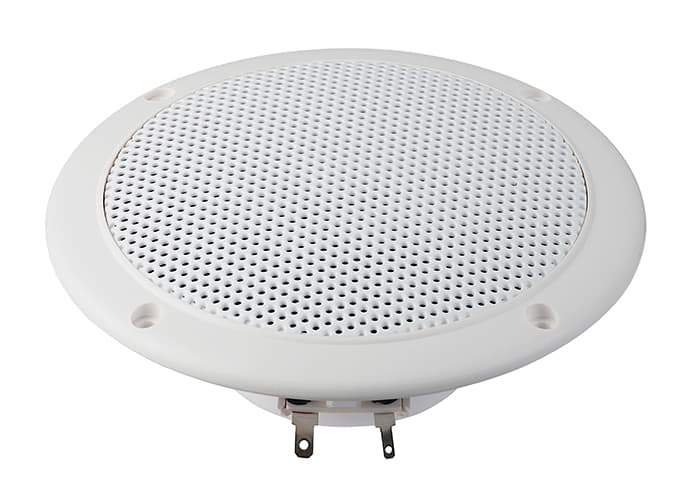

FR 13 WP - 4 OHM
