Overview
LF Driver
Tang Band

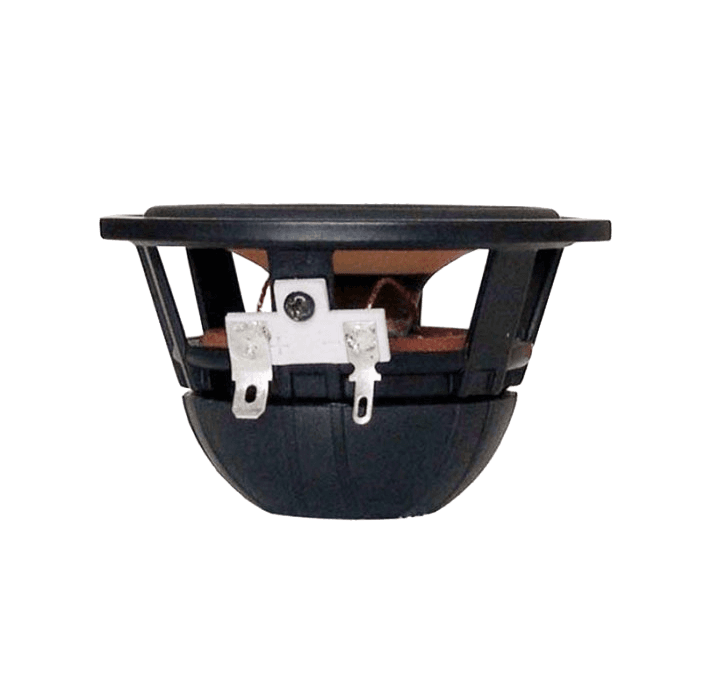

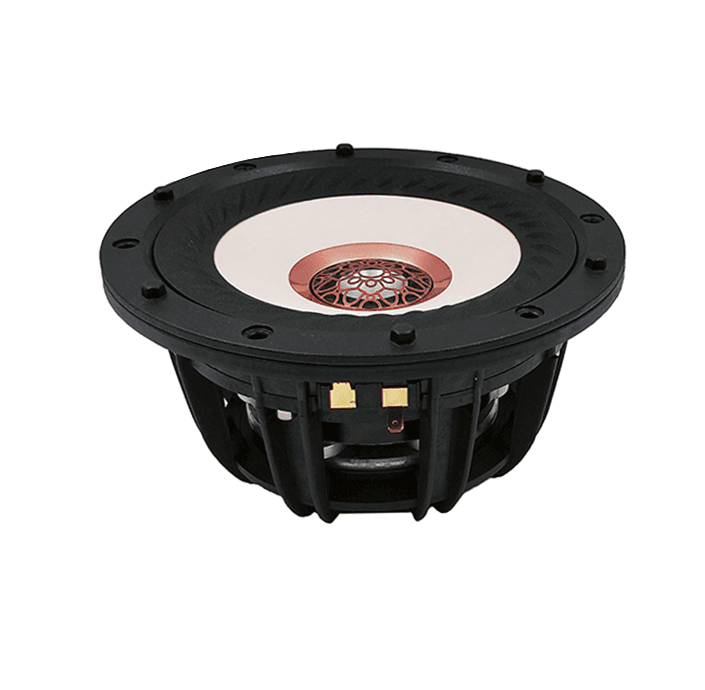

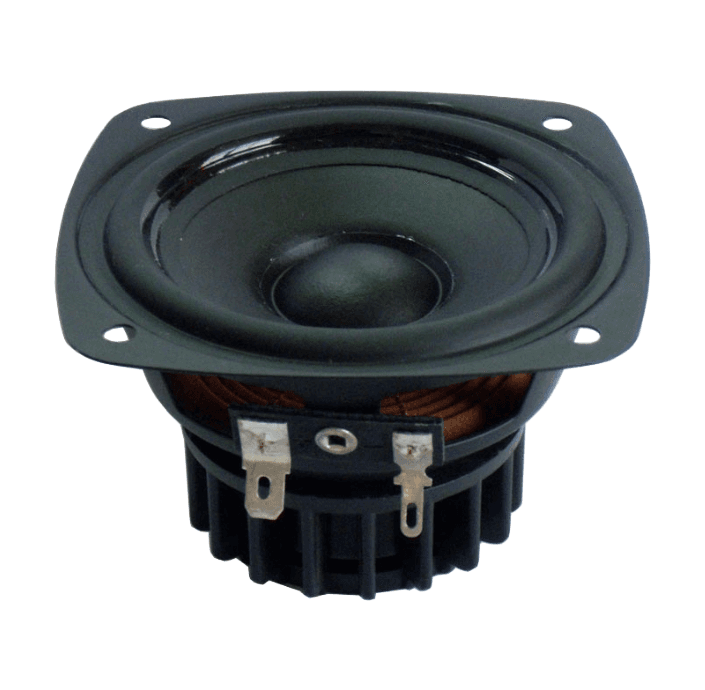

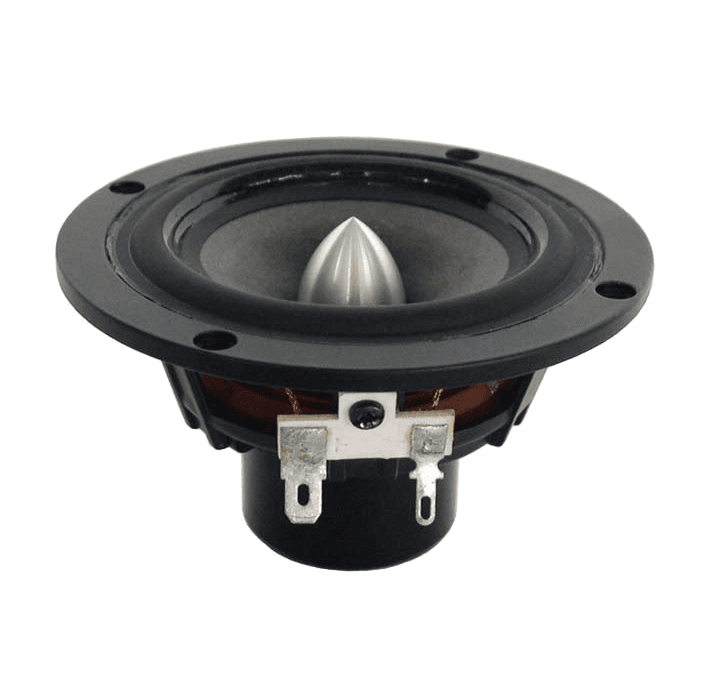

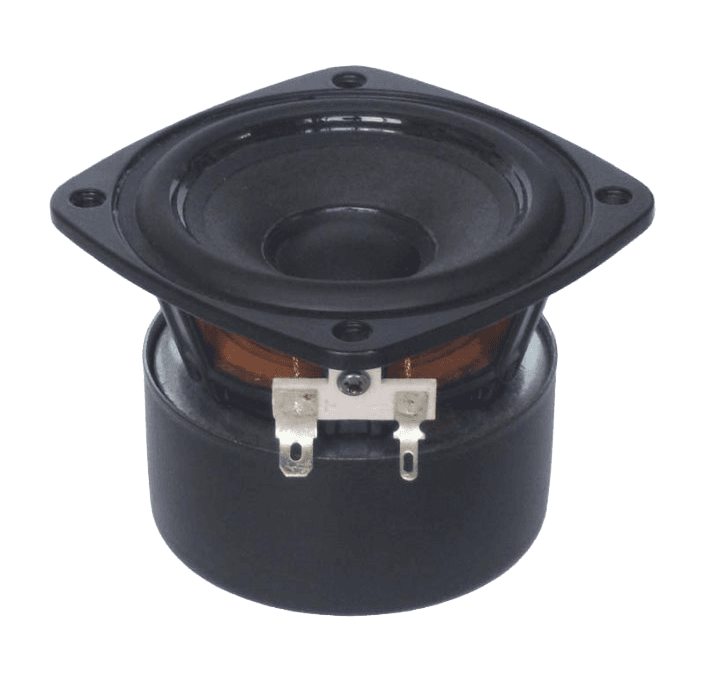

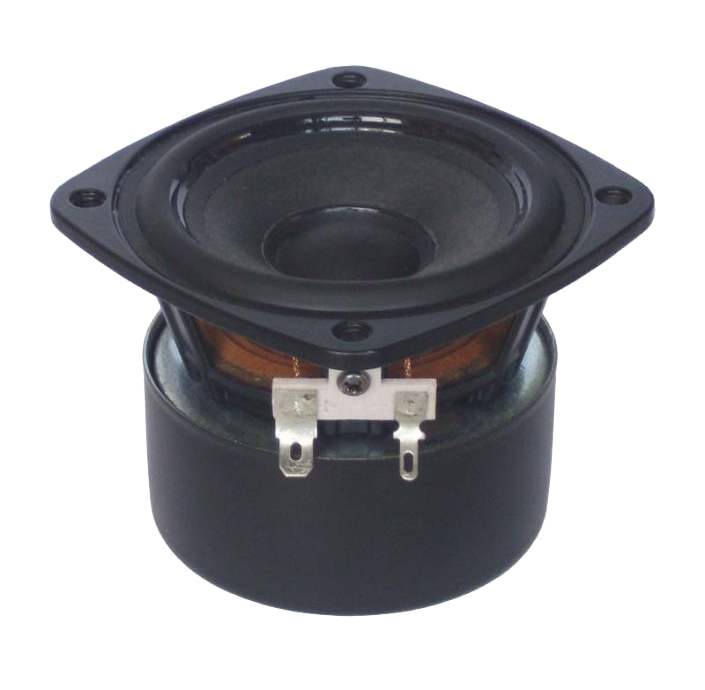

Tang Band W3-532SQ
Tang Band W3-532SQ is a 3" 6.6 ohm LF driver rated at 12W RMS. The validated T/S data includes Fs 100Hz, Qts 0.61, Vas 1.7L, Xmax 0.2mm, sensitivity 85.9dB, plus 1cm³ Vd and 145 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
6.6Ω
RMS Power
12W
Sensitivity
85.9dB
EBP
145
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,090 selected pixels of 1,448 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,973 selected pixels of 3,089
T/S Parameters
Valid
Fs100Hz
Qts0.61
Qes0.69
Qms5.3
Vas1.7L
Re6.6Ω
Le0.27mH
BL3.5Tm
Sd32cm²
Mms2g
Xmax0.2mm
SPL86dB
Power12W
Impedance7Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W3-532SQ
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Tang Band
W3-532SQ
3"
Xmax0.2mm0%
Qts0.610%
BL3.5Tm0%
Vas1.7L0%
Qes0.690%
Image unavailable
89%
Similarity
Tang Band
W3-582SC
3"
Xmax0.2mm0%
Qts0.65+7%
BL3.5Tm-2%
Vas1.6L-8%
Qes0.75+9%
88%
Similarity
Tang Band
W3-582A
3"
Xmax0.3mm+25%
Qts0.6-2%
BL3.6Tm+1%
Vas1.8L+5%
Qes0.67-3%
79%
Similarity
Tang Band
W3-881SJ
3"
Xmax0.2mm0%
Qts0.58-5%
BL3.3Tm-6%
Vas2.3L+38%
Qes0.62-10%
65%
Similarity
Tang Band
W3-583SE
3"
Xmax0.3mm+25%
Qts0.56-8%
BL3Tm-15%
Vas2.5L+46%
Qes0.7+1%
