Overview
LF DriverTFX series
Monacor

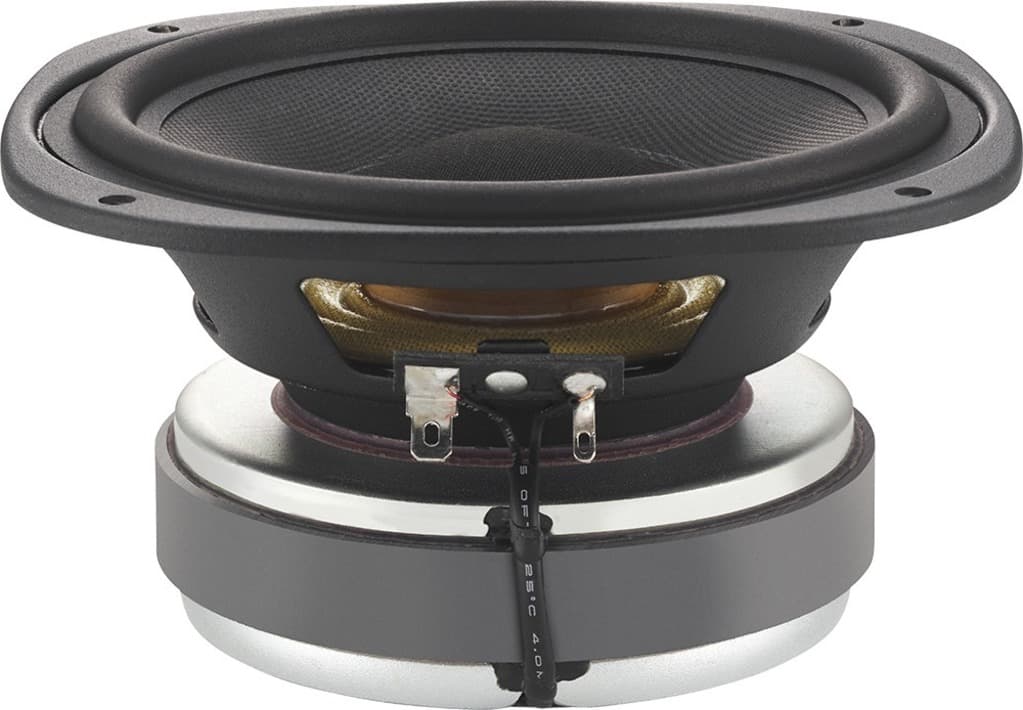

Monacor TFX0515/8
Monacor TFX0515/8 is a 5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 74Hz, Qts 0.75, Vas 6.5L, Xmax 3.8mm, sensitivity 89.2dB, plus 36cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
150W
Sensitivity
89.2dB
EBP
147
Vented alignment
Vd
36cm³
T/S Parameters
Valid
Fs74Hz
Qts0.75
Qes0.50
Qms8.3
Vas6.5L
Re5.8Ω
Le0.36mH
BL7.0Tm
Sd95cm²
Mms9g
Xmax3.8mm
SPL89dB
Power150W
Impedance8Ω
F Low80Hz
F High4000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter136.0mm
Overall Depth72.0mm
Cutout Diameter116.0mm
