LF DriverCHR series
Markaudio

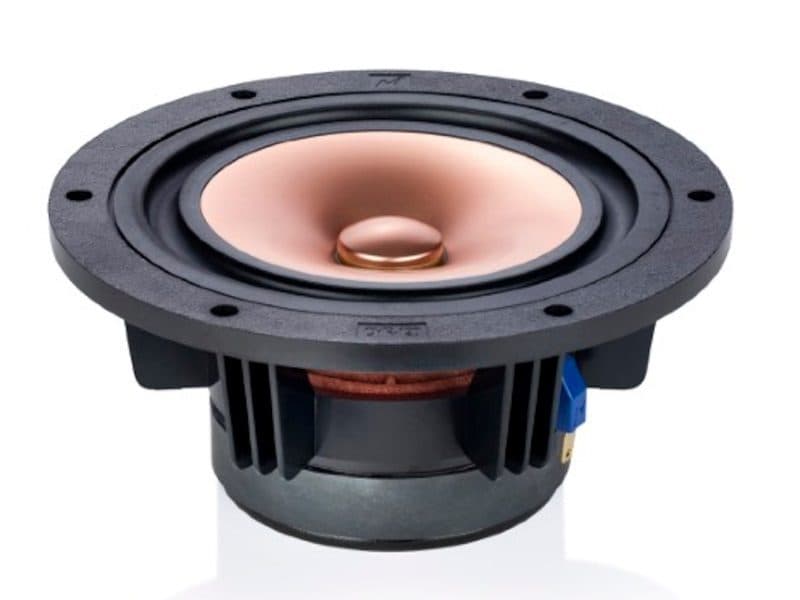

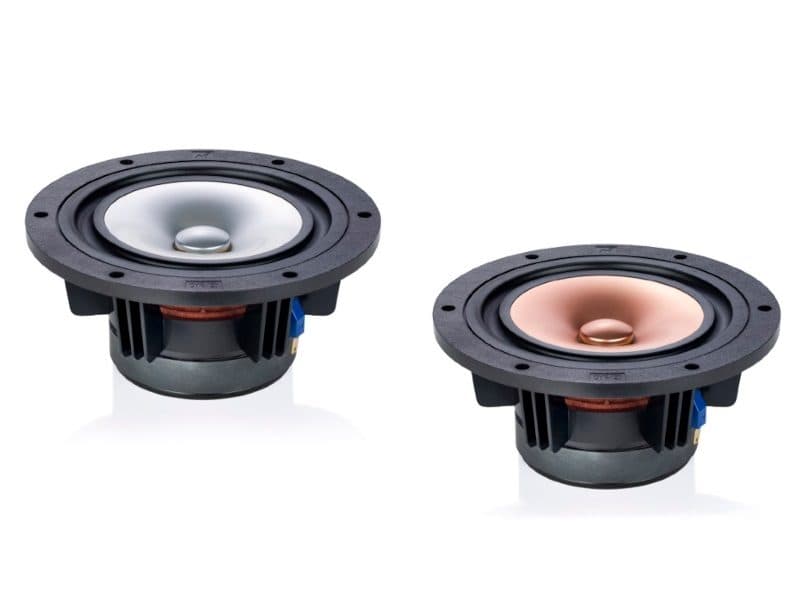

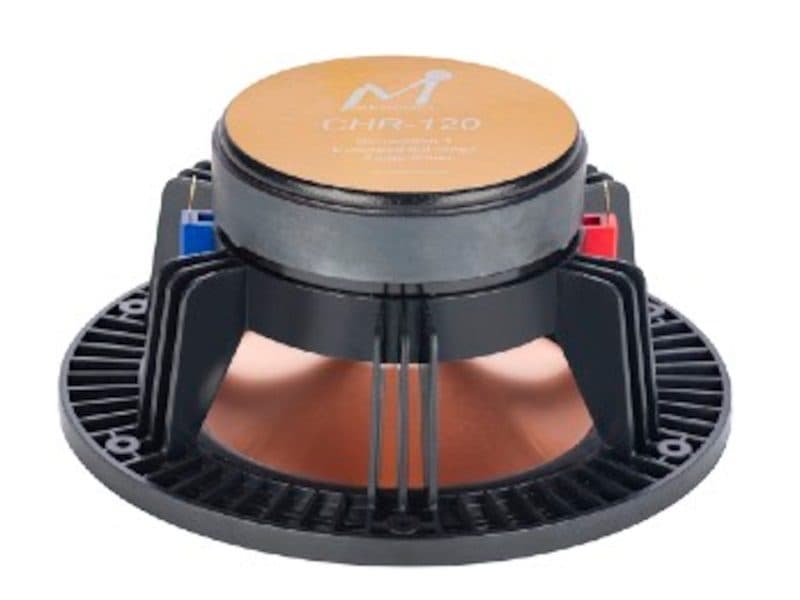

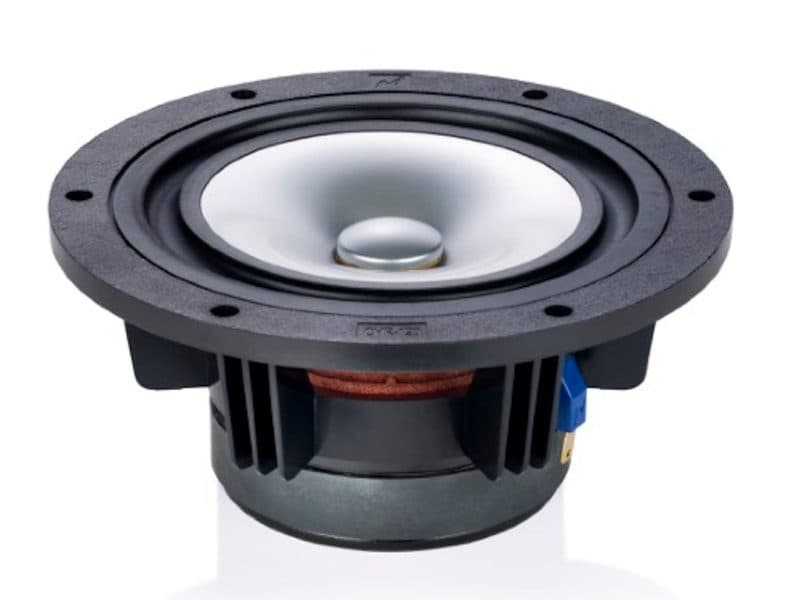

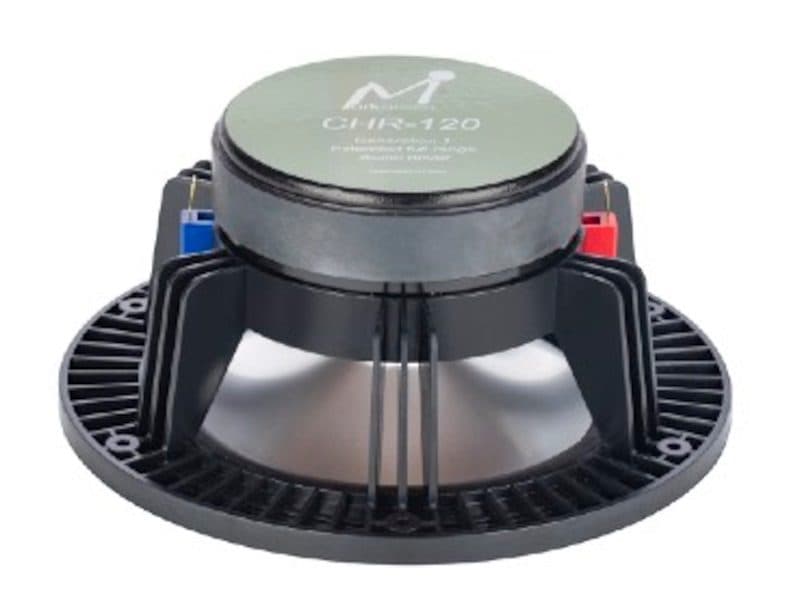

Markaudio CHR-120
Markaudio CHR-120 is a 4.75" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 34Hz, Qts 0.37, Vas 58.9L, Xmax 9mm, sensitivity 89.3dB, plus 132cm³ Vd and 78 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10200.00.
Size
4.75"
Impedance
8Ω
RMS Power
30W
Sensitivity
89.3dB
91.7dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
78
Either alignment
Vd
132cm³
T/S Parameters
Valid
Fs34Hz
Qts0.37
Qes0.44
Qms2.4
Vas58.9L
Re7.2Ω
Le0.13mH
BL7.5Tm
Sd147cm²
Mms11g
Xmax9.0mm
SPL89dB
Power30W
Impedance8Ω
Pricing & availability
Price definitionsPrice movement
Best current price
£10,200.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

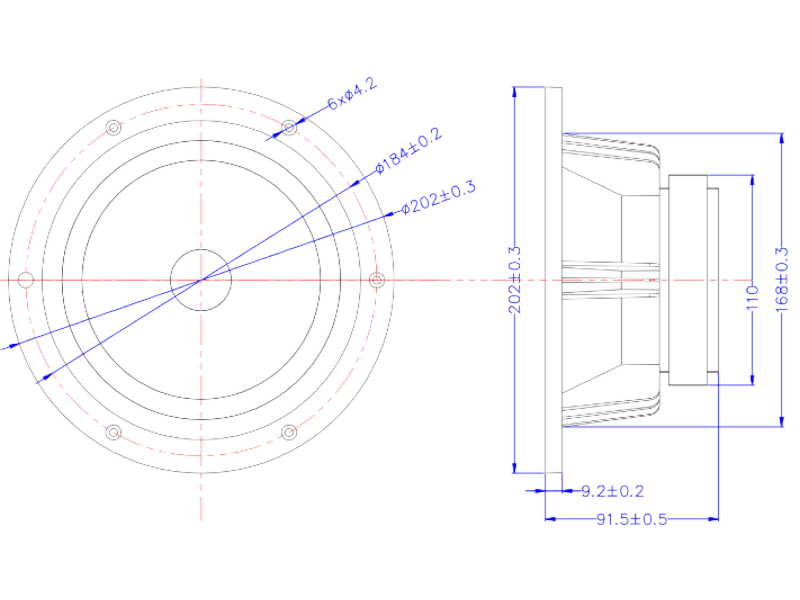

Dimensions & Physical
Weight2.6kg
