1.5-inch compression driver · 61 mm voice coil · 70 W
Eighteen Sound NSD1424BTN 8Ω
800–20000 Hz
£254.65
SteadyLean Audio · 1 in stock · All 3 offers
- SPL
- 110dB
- Pe
- 70W
- Xover
- 1200Hz
- Throat
- 35mm
- VC
- 61mm

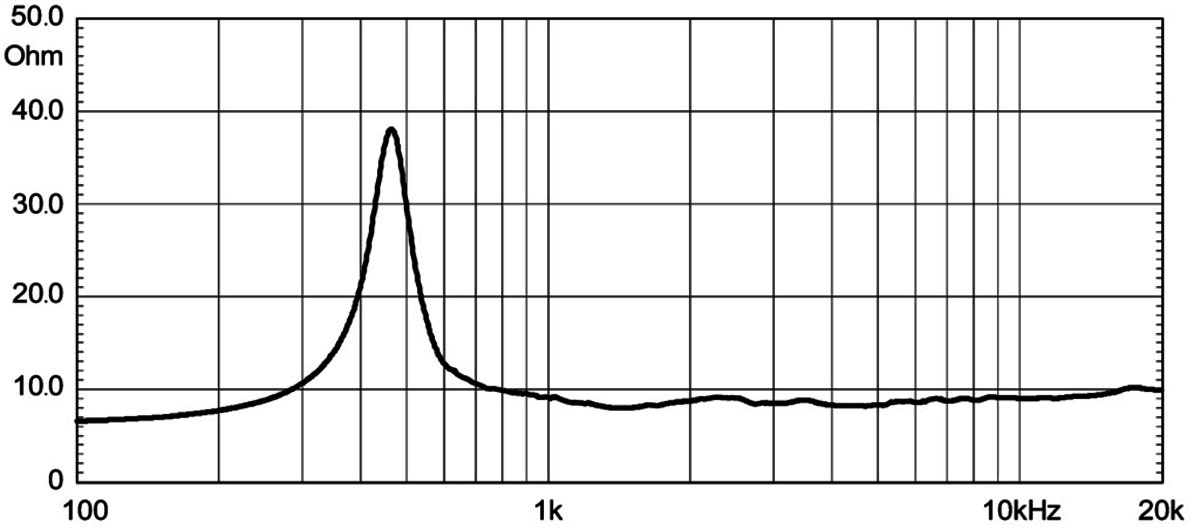

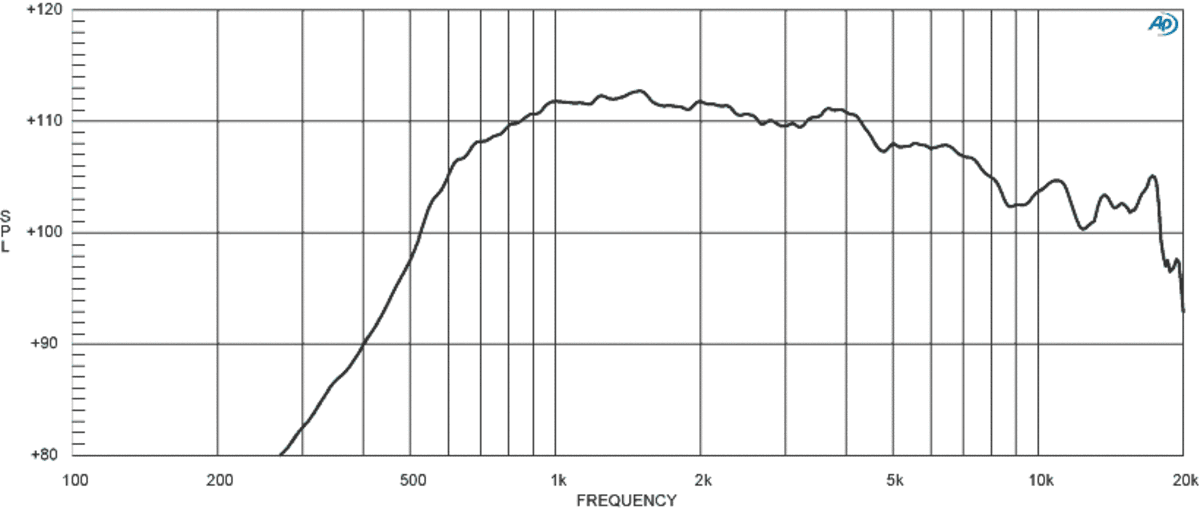

Published graphs
Eighteen Sound NSD1424BTN is a 1.5-inch 8 ohm compression driver rated at 70 W RMS. The source-backed specifications include sensitivity 110 dB, range from 800 Hz, to 20000 Hz, throat 35 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £246.84.
Source-backed specifications
Motor and cone
- Voice coil
- 61mm
Power and response
- Sensitivity
- 110dB
- Power
- 70W
- Nominal power
- 70W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 800–20000Hz
- Crossover
- 1200Hz
- Throat
- 35mm
Size and mounting
- Diameter
- 116mm
- Depth
- 54mm
- Weight
- 1.7kg
Other published values
- Power Program
- 140
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 110dB
- Power
- 70W
- Impedance
- 8Ω
- Sensitivity
- 110dB
- Low limit
- 800Hz
- Nominal power
- 70W
- Power Program
- 140
- High limit
- 20000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 8Ω
- Voice coil
- 61mm
- Crossover
- 1200Hz
- Weight
- 1.7kg
- Diameter
- 116mm
- Depth
- 54mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £254.65, the lowest price | 1 in stock | Visit shop at Lean Audio | |
Lean Business | £259.00 | 1.7% above the lowest price | Stock not listed | Visit shop at Lean Business |
Best price over time
Tracked since 1 Apr
