Eighteen Sound NSD1424BTN 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /NSD1424BTN

Media

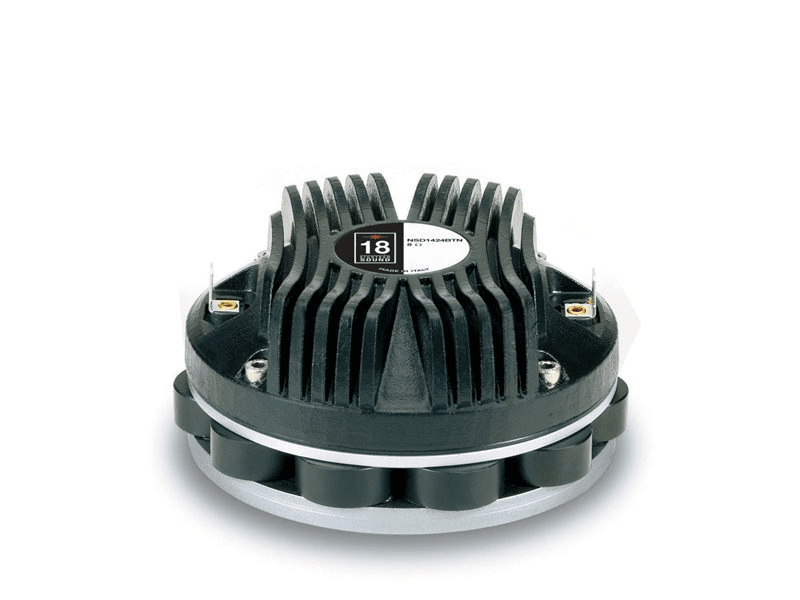

Eighteen Sound NSD1424BTN 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound NSD1424BTN

Eighteen Sound NSD1424BTN is a 1.5" 16 ohm compression driver rated at 70W RMS. The source-backed specifications include sensitivity 110dB, range from 800Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
70W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power70W
Power Nominal70W
Impedance16Ω
Min Impedance12.0Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat35mm
Voice Coil61mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.7kg
Diameter116.0mm
Overall Depth54.0mm
