1.5-inch compression driver · 75 mm voice coil · 80 W
Eighteen Sound ND1480A 8Ω
500–20000 Hz
No price for delivery to the UK
- SPL
- 111dB
- Pe
- 80W
- Xover
- 1000Hz
- Throat
- 35mm
- VC
- 75mm

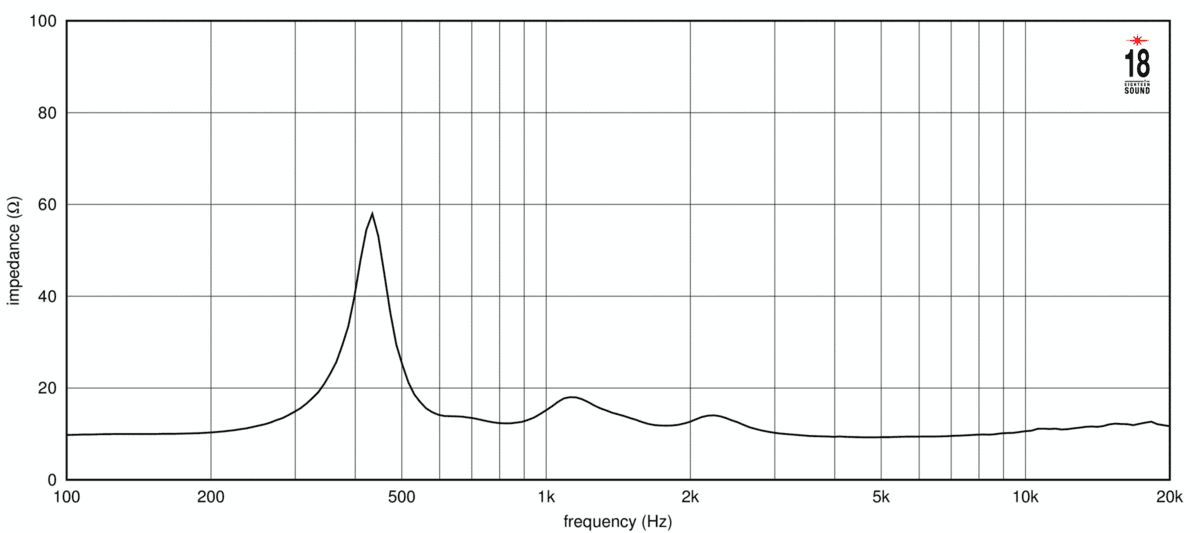

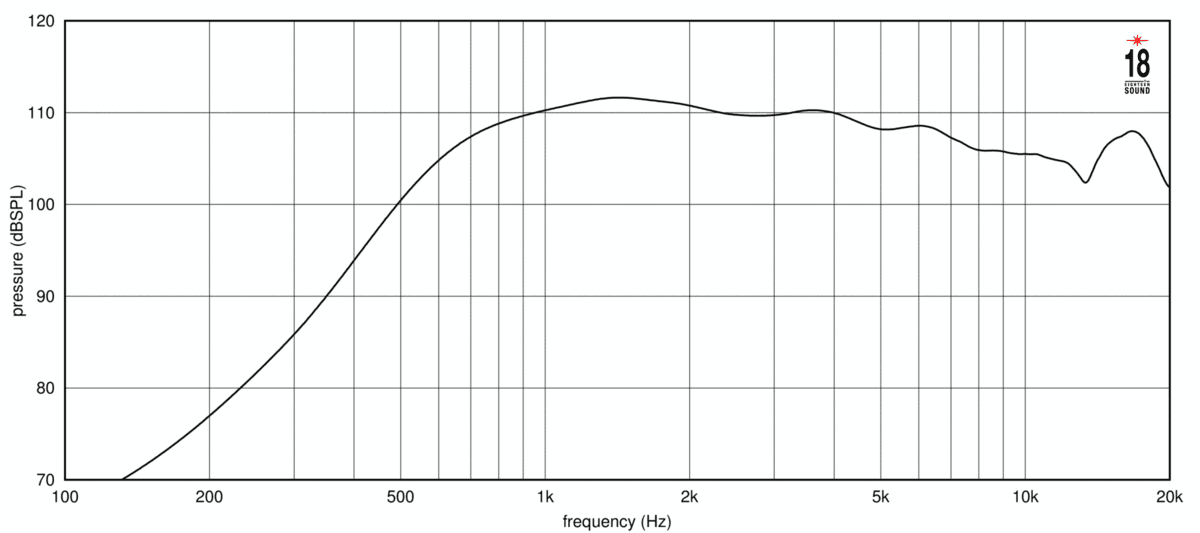

Published graphs
Eighteen Sound ND1480A is a 1.5-inch 8 ohm compression driver rated at 80 W RMS. The source-backed specifications include sensitivity 111 dB, range from 500 Hz, to 20000 Hz, throat 35 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 111dB
- Power
- 80W
- Nominal power
- 80W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 500–20000Hz
- Crossover
- 1000Hz
- Throat
- 35mm
Size and mounting
- Diameter
- 131mm
- Depth
- 62mm
- Weight
- 3.1kg
Other published values
- Power Program
- 160
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 111dB
- Power
- 80W
- Impedance
- 8Ω
- Sensitivity
- 111dB
- Low limit
- 500Hz
- Nominal power
- 80W
- Power Program
- 160
- High limit
- 20000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 111dB
- Min. impedance
- 8Ω
- Voice coil
- 75mm
- Crossover
- 1000Hz
- Weight
- 3.1kg
- Diameter
- 131mm
- Depth
- 62mm
