Eighteen Sound ND1480A 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND1480A

Media

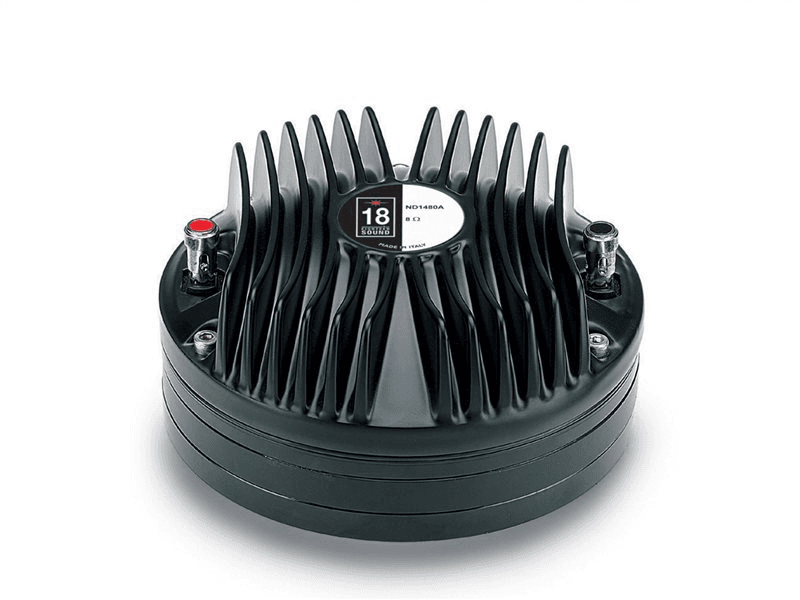

Eighteen Sound ND1480A 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND1480A

Eighteen Sound ND1480A is a 1.5" 16 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 111dB, range from 500Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
80W
Sensitivity
111.0dB
Datasheet

Technical Specifications

Canonical
SPL111dB
Power80W
Power Nominal80W
Impedance16Ω
Min Impedance10.1Ω
F Low500Hz
F High20000Hz
Xover1000Hz
Throat35mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.1kg
Diameter131.0mm
Overall Depth62.0mm
