1-inch compression driver · 36 mm voice coil · 15 W
B&C DH350 4Ω
1000–17000 Hz
£56.29
SteadyBlue Aran · 5 in stock · All 3 offers
- SPL
- 108dB
- Pe
- 15W
- Xover
- 1000Hz
- Throat
- 25mm
- VC
- 36mm

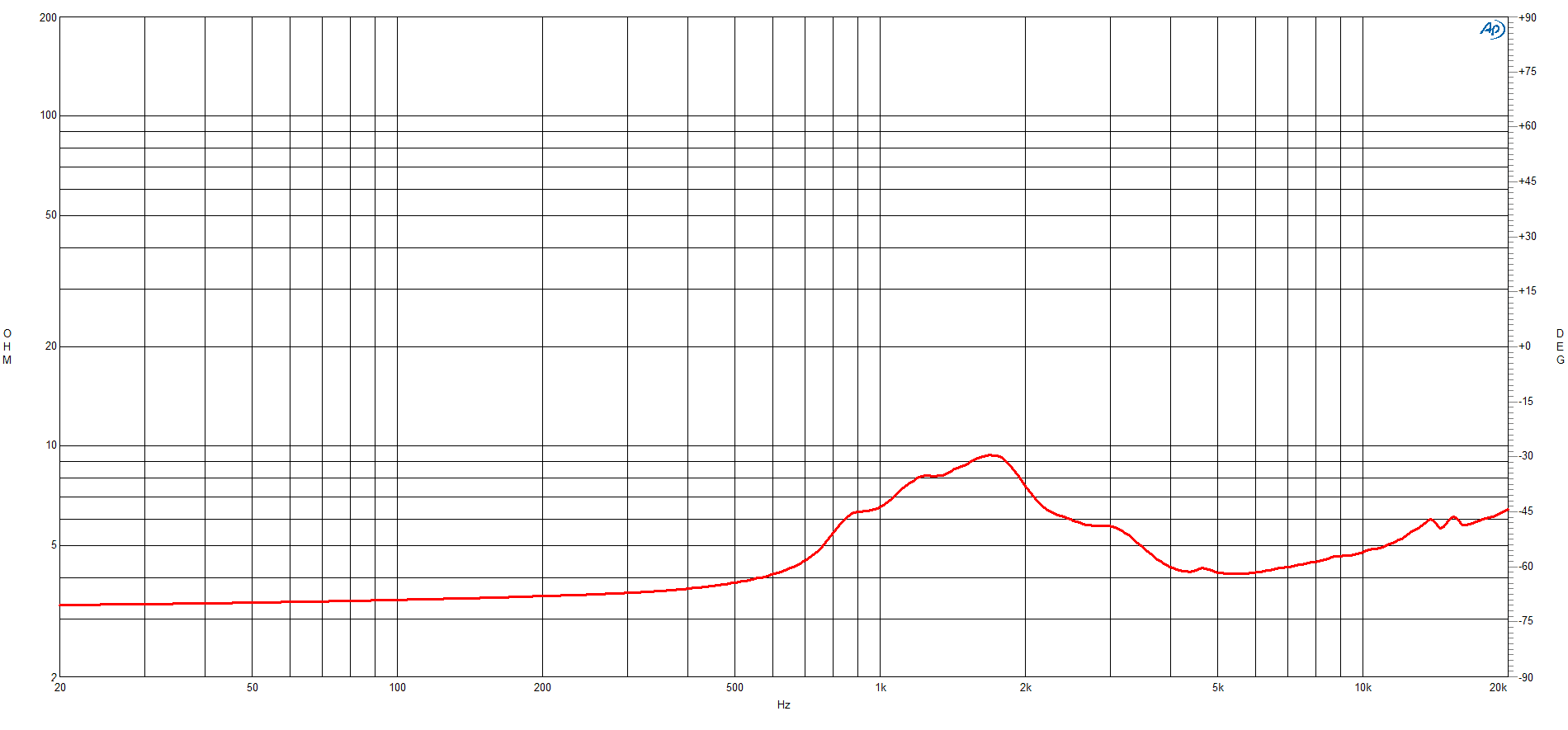

Published graphs
B&C DH350 is a 1-inch 4 ohm compression driver rated at 15 W RMS. The source-backed specifications include sensitivity 108 dB, range from 1000 Hz, to 17000 Hz, throat 25 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £56.29.
Source-backed specifications
Thiele/Small
- Le
- 0.06mH
Motor and cone
- Voice coil
- 36mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 108dB
- Power
- 15W
- Nominal power
- 15W
- Impedance
- 4Ω
- Min. impedance
- 4.1Ω
- Range
- 1000–17000Hz
- Crossover
- 1000Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 48mm
- Depth
- 46mm
- Weight
- 0.25kg
Everything else B&C lists
HF
- Le
- 0.06mH
- SPL
- 108dB
- Power
- 15W
- Impedance
- 4Ω
- Flux density
- 1.80T
- Sensitivity
- 108dB
- Low limit
- 1000Hz
- Nominal power
- 15W
- High limit
- 17000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 108dB
- Min. impedance
- 4.1Ω
- Voice coil
- 36mm
- Crossover
- 1000Hz
- Weight
- 0.25kg
- Diameter
- 48mm
- Depth
- 46mm
- Depth
- 46 mm (1.81 in)
- Inductance
- 0.06 mH
- Net weight
- 0.25 kg (0.56 lb)
- Sensitivity
- 108 dB
- Flux density
- 1.8 T
- Shipping box
- 105x105x65 mm (4.1x4.1x2.6 in)
- Shipping units
- 1 pcs
- Frequency range
- 1 kHz - 17 kHz
- Shipping weight
- 0.275 kg (0.61 lb)
- Throat diameter
- 25 mm (1 in)
- Overall diameter
- 48 mm (1.89 in)
- Winding material
- Aluminium
- Minimum impedance
- 4.1 Ω
- Nominal impedance
- 4 Ω
- Diaphragm material
- HT Polymer
- Voice coil diameter
- 36 mm (1.4 in)
- Recommended crossover
- 1 kHz
- Nominal power handling
- 15 W
- Continuous power handling
- 30 W
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £56.29, the lowest price | 5 in stock | Visit shop at Blue Aran | |
JP Leisure Not currently listed · Last seen 7 Aug 2026 | £61.00 | 8.4% above the lowest price | In stock | Visit shop at JP Leisure |
Audio Video Parts Import VAT and duty may apply | £45.16 | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
Recent changes
- 23 JunBlue Aran£56.30 → £56.29Down <0.1% from £56.30
- 5 JunBlue Aran£54.02 → £56.30Up 4.2% from £54.02
