B&C DH350 16Ω
Compression DriverMedia
Auto-advancing
Overview
Compression Driver
B&C
B&C DH350
B&C DH350 is a 1" 16 ohm compression driver rated at 15W RMS. The source-backed specifications include sensitivity 109.5dB, range from 1000Hz, to 17000Hz, throat 25mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £56.29.
Size
1"
Impedance
16Ω
RMS Power
15W
Sensitivity
109.5dB

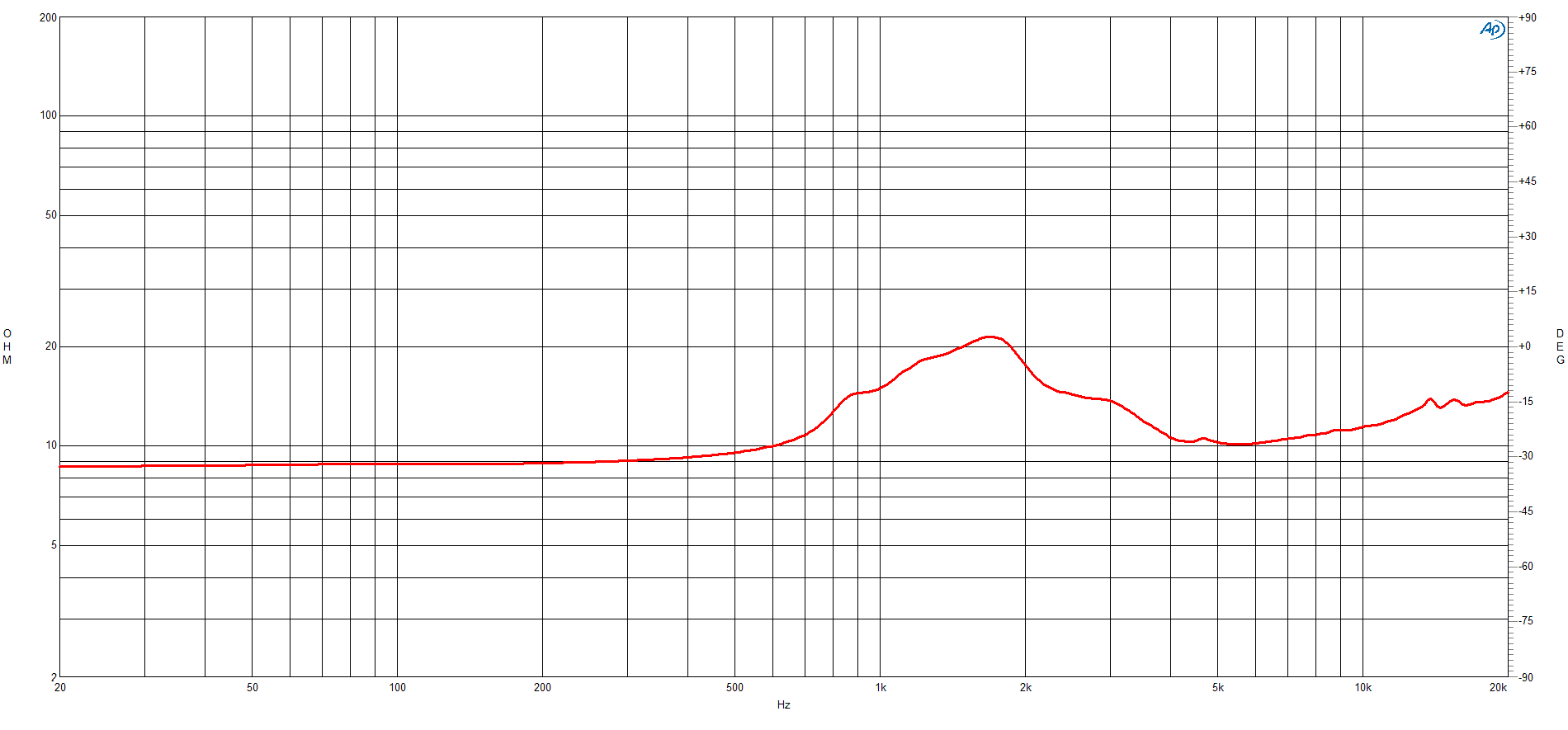

Frequency response
Manufacturer-provided response plots and related charts.
Technical Specifications
Le0.15mH
SPL110dB
Power15W
Power Nominal15W
Impedance16Ω
Min Impedance10.4Ω
F Low1000Hz
F High17000Hz
Xover1000Hz
Throat25mm
Voice Coil36mm
Flux Density1.80T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorjpleisure
Updated 7 Aug 2026· 16Ω
Source: ex VAT · 20%
£61.00
inc VAT
In stock
Best current price
Updated 11 Sept 2026
bluearan
£56.29
Avg £58.64£2.35 below avg (-4.0%)
inc VAT
Dimensions & Physical
Weight0.3kg
Diameter48.0mm
Overall Depth46.0mm
Additional Manufacturer Specs
Inductance0.15 mH
Winding MaterialAluminium
Diaphragm MaterialHT Polymer
