Overview
LF DriverW series
Visaton

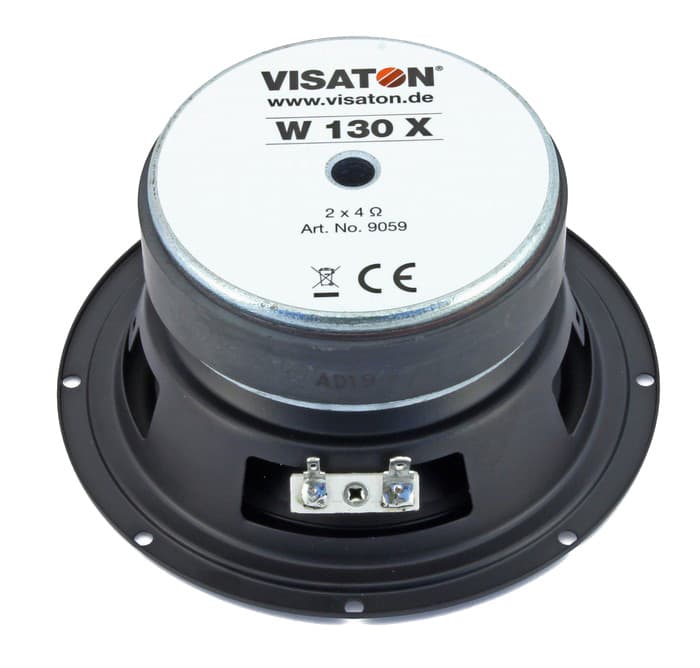

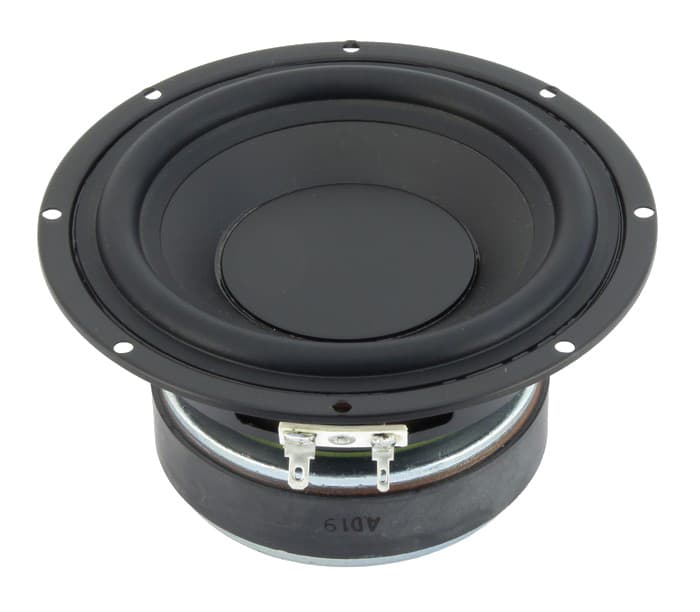

Visaton W 130 X - 2 x 4 Ohm
Visaton W 130 X - 2 x 4 Ohm is a 5" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 40Hz, Qts 0.37, Vas 5.6L, Xmax 11.5mm, sensitivity 81.5dB, plus 108cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
60W
Sensitivity
81.5dB
78.0dBmanufacturer; using T/S-derived value (3.5dB delta).
EBP
98
Either alignment
Vd
108cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence586 selected pixels of 885
T/S Parameters
Valid
Fs40Hz
Qts0.37
Qes0.41
Qms4.4
Vas5.6L
Re7.9Ω
Le2.75mH
BL13.2Tm
Sd94cm²
Mms37g
Xmax11.5mm
SPL82dB
Power60W
Impedance8Ω
F High6000Hz
Voice Coil40mm
Flux Density0.92T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter130.0mm
Cutout Diameter123.0mm
