Overview
LF DriverSC series
Visaton

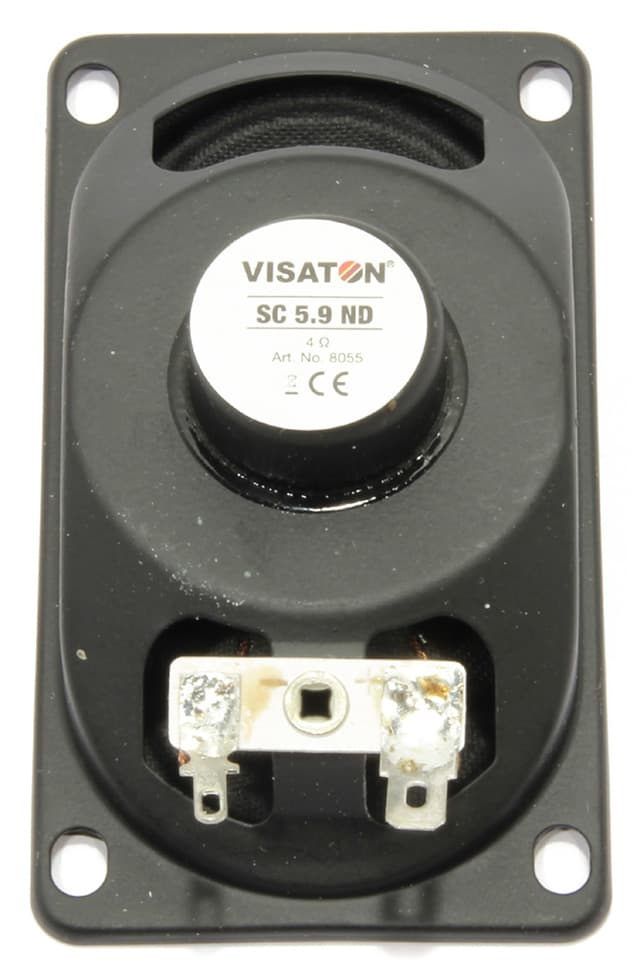

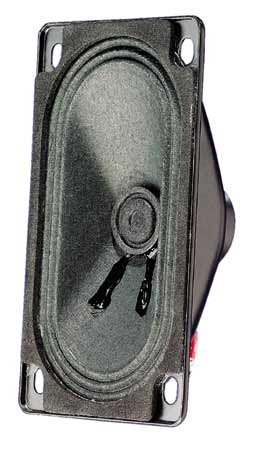

Visaton SC 5.9 ND - 4 OHM
Visaton SC 5.9 ND - 4 OHM is a 2" 4 ohm LF driver rated at 3W RMS. The validated T/S data includes Fs 280Hz, Qts 4.30, Vas 0.3L, Xmax 1mm, sensitivity 81.2dB, plus 3cm³ Vd and 35 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
4Ω
RMS Power
3W
Sensitivity
81.2dB
EBP
35
Sealed alignment
Vd
3cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence707 selected pixels of 1,972
T/S Parameters
Valid
Fs280Hz
Qts4.30
Qes8.03
Qms9.2
Vas0.3L
Re3.8Ω
Le0.20mH
BL1.0Tm
Sd27cm²
Mms1g
Xmax1.0mm
SPL81dB
Power3W
Impedance4Ω
F Low150Hz
F High17000Hz
Voice Coil14mm
Flux Density0.75T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight60.0kg
Diameter90.0mm
Cutout Diameter43.0mm
