Overview
LF DriverR series
Visaton

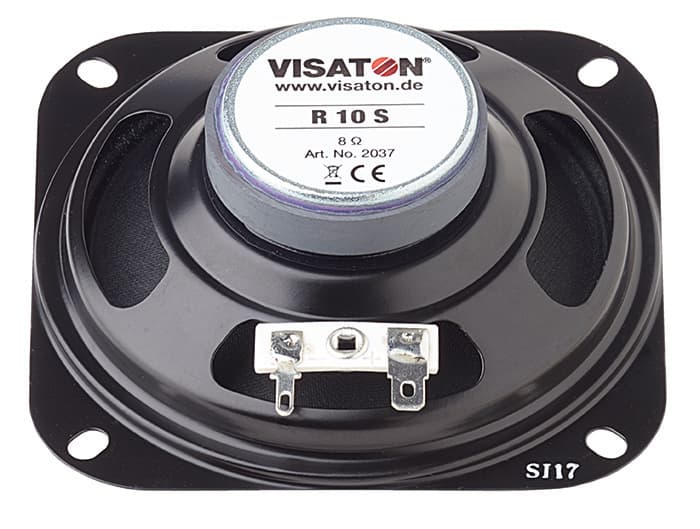

Visaton R 10 S - 8 OHM
Visaton R 10 S - 8 OHM is a 4" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 160Hz, Qts 1.99, Vas 1.7L, Xmax 1.5mm, sensitivity 85.8dB, plus 8cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
20W
Sensitivity
85.8dB
90.0dBmanufacturer; using T/S-derived value (4.2dB delta).
EBP
55
Either alignment
Vd
8cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,053 selected pixels of 1,263
T/S Parameters
Valid
Fs160Hz
Qts1.99
Qes2.92
Qms6.3
Vas1.7L
Re7.2Ω
Le0.50mH
BL2.0Tm
Sd56cm²
Mms2g
Xmax1.5mm
SPL86dB
Power20W
Impedance8Ω
F Low100Hz
F High13000Hz
Voice Coil15mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter100.0mm
Cutout Diameter93.0mm
