Overview
LF DriverFRWS series
Visaton

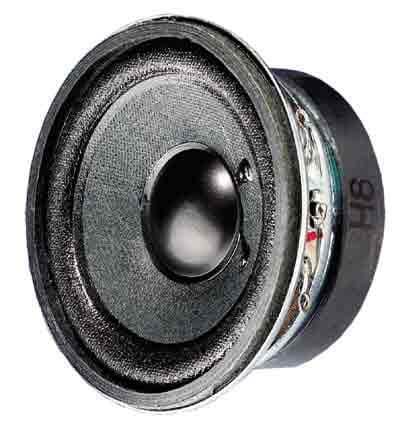

Visaton FRWS 5 R - 8 OHM
Visaton FRWS 5 R - 8 OHM is a 2" 8 ohm LF driver rated at 4W RMS. The validated T/S data includes Fs 250Hz, Qts 1.63, Vas 0.1L, Xmax 2mm, sensitivity 78.9dB, plus 2cm³ Vd and 78 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
4W
Sensitivity
78.9dB
84.0dBmanufacturer; using T/S-derived value (5.1dB delta).
EBP
78
Either alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsSource file SHA-256 7343229f6a61…Medium confidence645 selected pixels of 1,408 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 7343229f6a61…Medium confidence416 selected pixels of 550
T/S Parameters
Valid
Fs250Hz
Qts1.63
Qes3.22
Qms3.3
Vas0.1L
Re6.8Ω
Le0.10mH
BL1.4Tm
Sd12cm²
Mms1g
Xmax2.0mm
SPL79dB
Power4W
Impedance8Ω
F Low150Hz
F High20000Hz
Xover250Hz
Voice Coil14mm
Flux Density0.75T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight98.0kg
Diameter50.0mm
Cutout Diameter45.0mm
