Overview
LF DriverFR series
Visaton

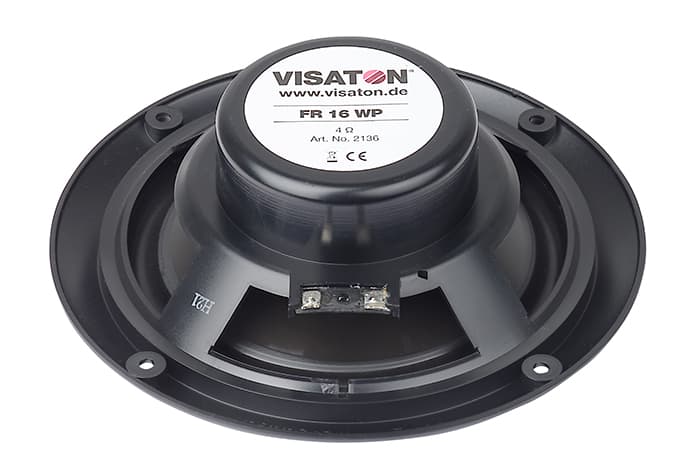

Visaton FR 16 WP - 4 OHM
Visaton FR 16 WP - 4 OHM is a 6.5" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 85Hz, Qts 1.02, Vas 10L, Xmax 3mm, sensitivity 88dB, plus 39cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
30W
Sensitivity
88.0dB
86.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
55
Either alignment
Vd
39cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsSource file SHA-256 22fb1f23401a…Medium confidence751 selected pixels of 1,150 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 22fb1f23401a…Medium confidence638 selected pixels of 638
T/S Parameters
Valid
Fs85Hz
Qts1.02
Qes1.55
Qms3.0
Vas10.0L
Re3.7Ω
Le0.40mH
BL3.3Tm
Sd130cm²
Mms8g
Xmax3.0mm
SPL88dB
Power30W
Impedance4Ω
F Low60Hz
F High15000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter160.0mm
Cutout Diameter143.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 16 WP - 4 OHM
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FR 16 WP
6.5"
Xmax3mm0%
Qts1.020%
BL3.3Tm0%
Vas10L0%
Qes1.550%
55%
Similarity
CIARE
CW170Z
6.5"
Xmax2.8mm-7%
Qts1.23+21%
BL2.7Tm-18%
Vas13.1L+31%
Qes1.93+25%
