Overview
LF DriverFR series
Visaton

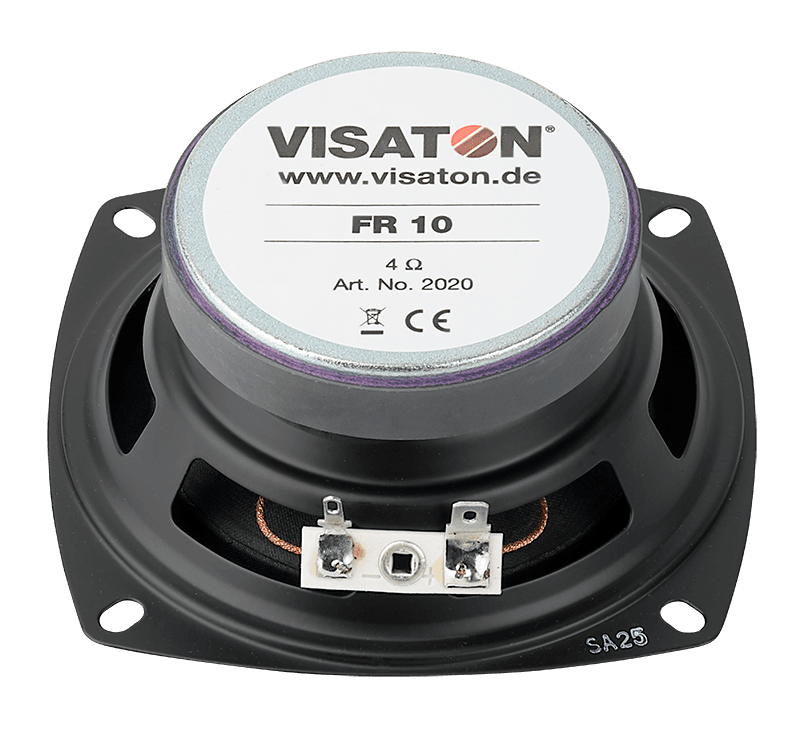

Visaton FR 10 - 4 OHM
Visaton FR 10 - 4 OHM is a 4" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 90Hz, Qts 0.54, Vas 2.3L, Xmax 4mm, sensitivity 85.8dB, plus 20cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
30W
Sensitivity
85.8dB
EBP
129
Vented alignment
Vd
20cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence812 selected pixels of 1,505
T/S Parameters
Valid
Fs90Hz
Qts0.54
Qes0.70
Qms2.3
Vas2.3L
Re3.2Ω
Le0.20mH
BL4.6Tm
Sd50cm²
Mms6g
Xmax4.0mm
SPL86dB
Power30W
Impedance4Ω
F Low80Hz
F High20000Hz
Voice Coil20mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter100.0mm
Cutout Diameter100.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 10 - 4 OHM
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FR 10
4"
Xmax4mm0%
Qts0.540%
BL4.6Tm0%
Vas2.3L0%
Qes0.70%
85%
Similarity
Dayton Audio
ND105-4
4"
Xmax4mm0%
Qts0.61+13%
BL4.5Tm-2%
Vas2L-14%
Qes0.66-6%
83%
Similarity
£29.57
Dayton Audio
RS100P-8
4"
Xmax3.7mm-7%
Qts0.540%
BL4Tm-14%
Vas1.8L-21%
Qes0.71+1%
82%
Similarity
£69.00

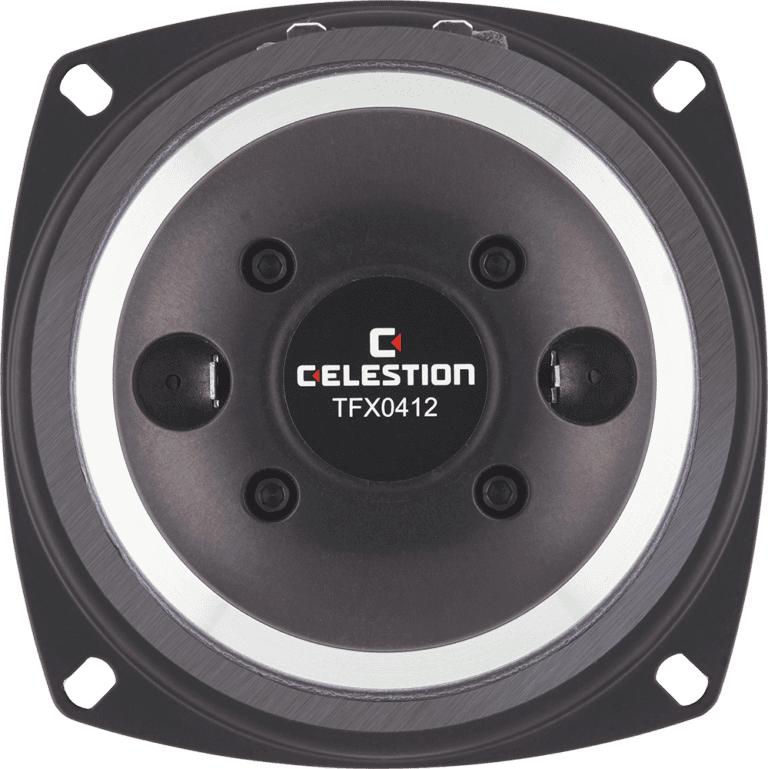

Celestion
TFX0412
4"
Xmax4mm0%
Qts0.59+9%
BL5.4Tm+17%
Vas2.2L-5%
Qes0.67-5%
72%
Similarity
£12.76
Peerless
SDS-100F25CP09-04
4"
Xmax5mm+26%
Qts0.53-2%
BL4.7Tm+3%
Vas2L-14%
Qes0.58-17%
71%
Similarity
£29.57
Dayton Audio
RS100-4
4"
Xmax4mm0%
Qts0.53-2%
BL3.2Tm-31%
Vas1.4L-37%
Qes0.66-6%
70%
Similarity
Peerless
SDS-100F25CP18-04
4"
Xmax5mm+26%
Qts0.59+9%
BL4.5Tm-2%
Vas1.9L-19%
Qes0.65-7%
70%
Similarity
£29.57
Dayton Audio
RS100-8
4"
Xmax3.5mm-12%
Qts0.58+7%
BL4.2Tm-9%
Vas1.4L-38%
Qes0.76+9%
70%
Similarity

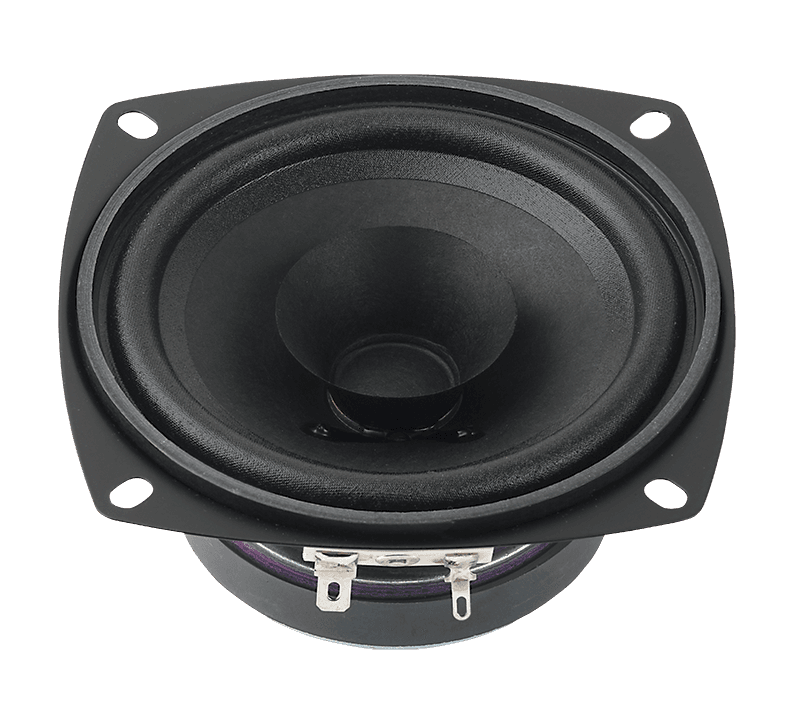

Visaton
