Overview
LF Driver
Tang Band

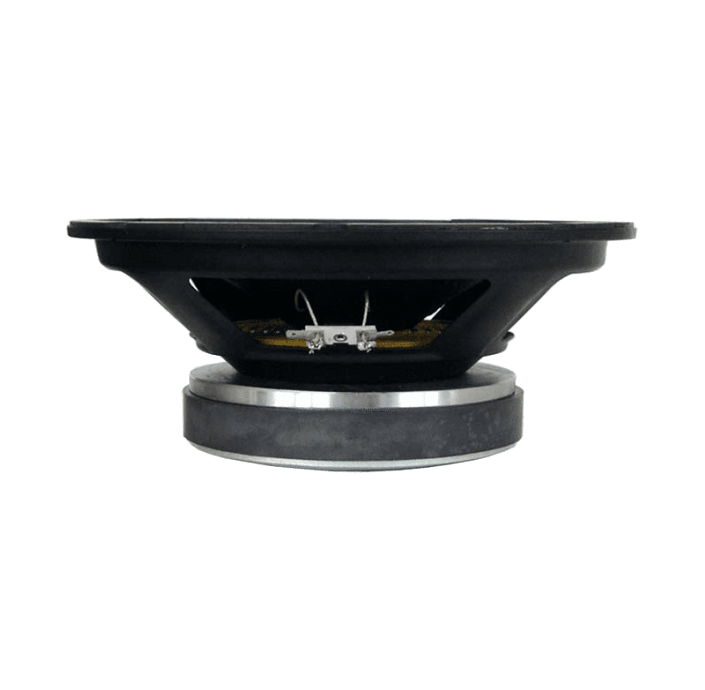

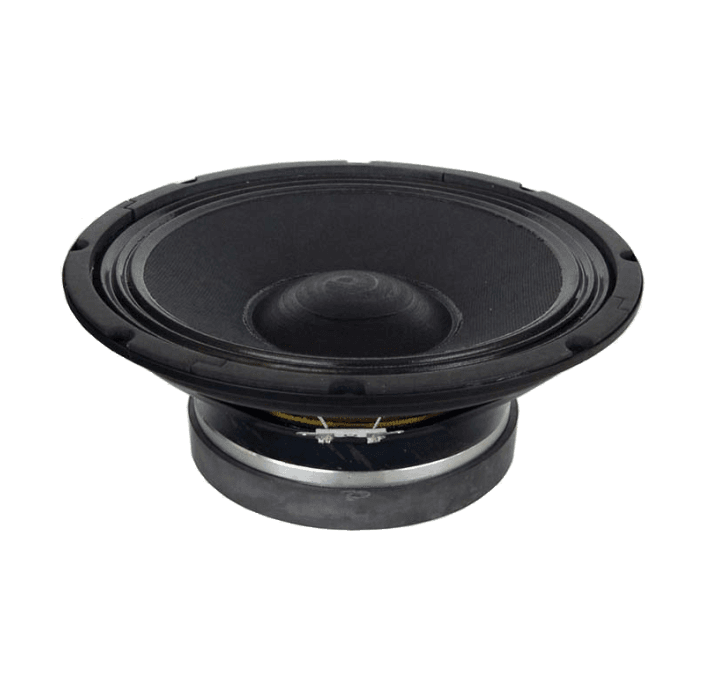

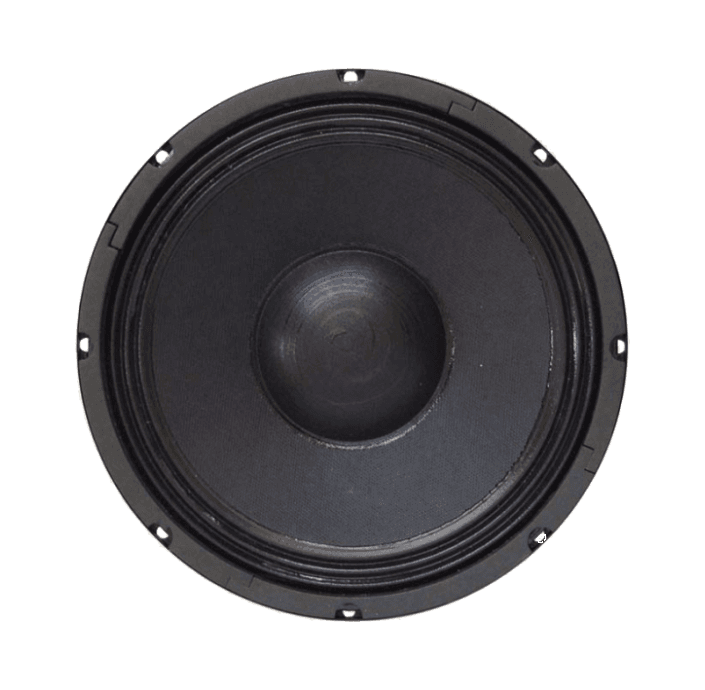

Tang Band WT-998D
Tang Band WT-998D is a - 4 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 70Hz, Qts 0.35, Vas 30.2L, Xmax 2mm, sensitivity 96.3dB, plus 70cm³ Vd and 179 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
4Ω
RMS Power
250W
Sensitivity
96.3dB
EBP
179
Vented alignment
Vd
70cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence734 selected pixels of 1,512 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,829 selected pixels of 2,829
T/S Parameters
Valid
Fs70Hz
Qts0.35
Qes0.39
Qms3.7
Vas30.2L
Re3.6Ω
Le0.10mH
BL11.0Tm
Sd350cm²
Mms30g
Xmax2.0mm
SPL96dB
Power250W
Impedance4Ω
