- Fs
- 20Hz
- Xmax
- 13.3mm
- SPL
- 85dB
- Pe
- 500W
- BL
- 17.6T·m
- Vd
- 665cm³
- Qts
- 0.45
- Vas
- 117L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
110 plotted pointsMedium confidence1,095 selected pixels of 3,661 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,296 selected pixels of 2,296

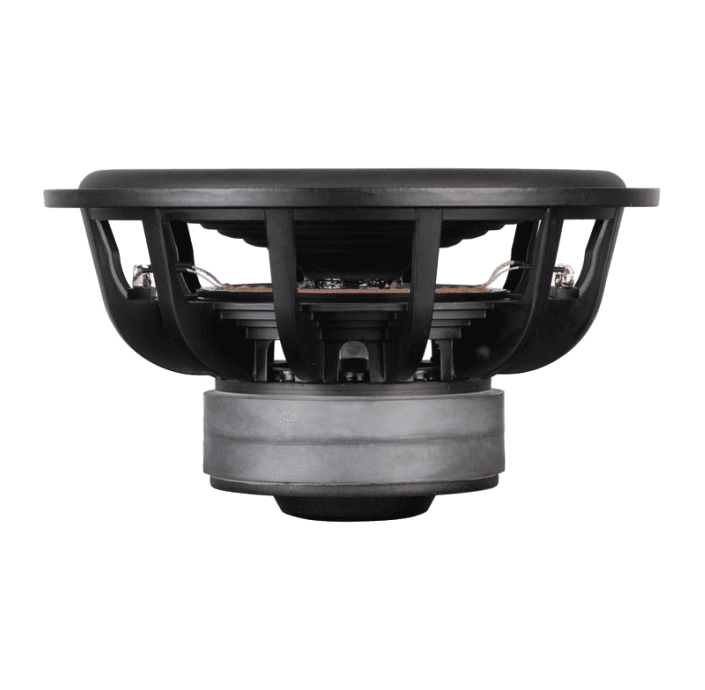

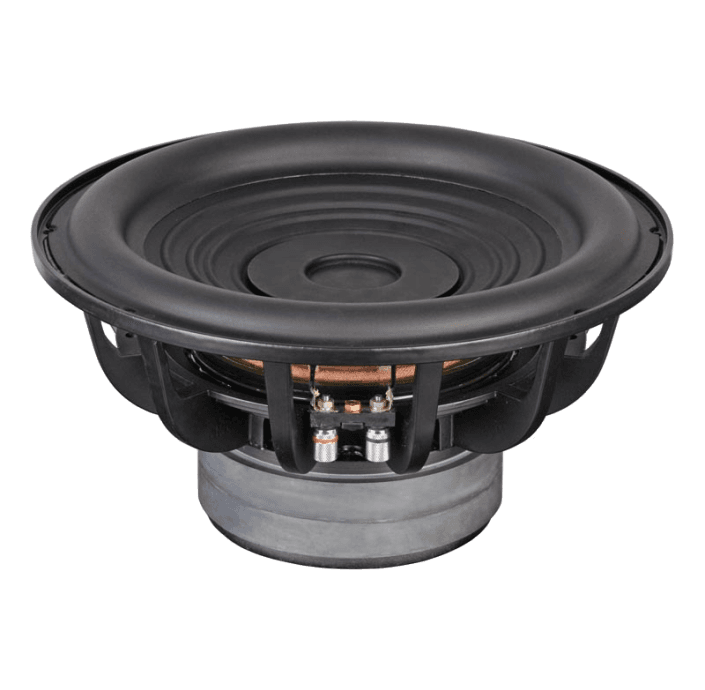

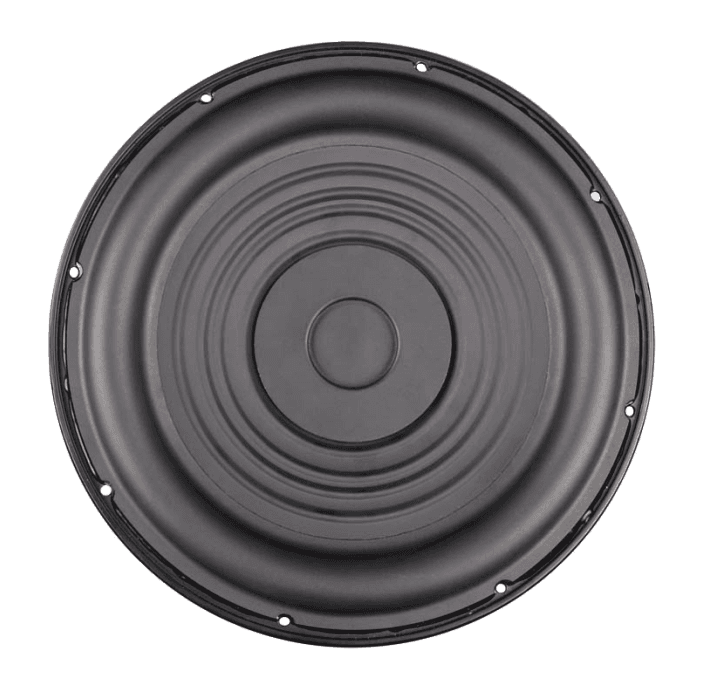

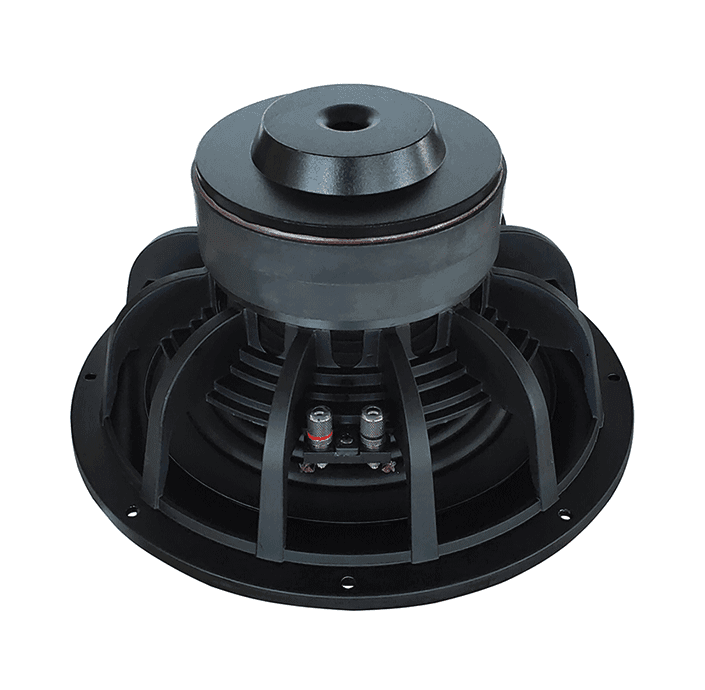

Tang Band WQ-1858 is an 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 20 Hz, Qts 0.45, Vas 116.5 L, Xmax 13.3 mm, sensitivity 84.6 dB, plus 665 cm³ Vd and 39 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 20Hz
- Qts
- 0.45
- Qes
- 0.51
- Qms
- 3.9
- Vas
- 116.5L
- Re
- 6.8Ω
- Le
- 1.48mH
Motor and cone
- BL
- 17.6T·m
- Sd
- 500cm²
- Mms
- 180g
- Xmax
- 13.3mm
- Vd †
- 665cm³
Power and response
- Sensitivity †
- 84.6dB
- Manufacturer sensitivity
- 85dB
- Power
- 500W
- Impedance
- 8Ω
- EBP †
- 39 · Leans sealed
Other published values
- Power Peak
- 1000
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary
- BL
- 17.6T·m
- Fs
- 20Hz
- Le
- 1.48mH
- Re
- 6.8Ω
- Sd
- 500cm²
- Mms
- 180g
- Qes
- 0.51
- Qms
- 3.9
- Qts
- 0.45
- SPL
- 84.6dB
- Vas
- 116.5L
- Xmax
- 13.3mm
- Power
- 500W
- Impedance
- 8Ω
- Power Peak
- 1000
- Sensitivity
- 85dB
- Calculated sensitivity †
- 84.6dB
- Manufacturer sensitivity
- 85dB
