Overview
LF Driver
Tang Band

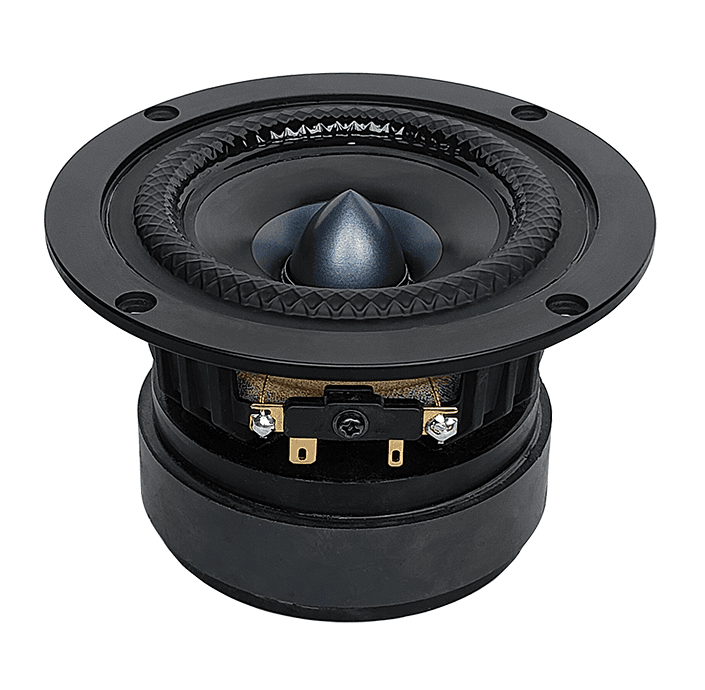

Tang Band W4-1052SD
Tang Band W4-1052SD is a 4" 3.8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 70Hz, Qts 0.44, Vas 7.6L, Xmax 3.4mm, sensitivity 89.3dB, plus 19cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
3.8Ω
RMS Power
20W
Sensitivity
89.3dB
87.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
143
Vented alignment
Vd
19cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,197 selected pixels of 1,488 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,159 selected pixels of 2,341
T/S Parameters
Valid
Fs70Hz
Qts0.44
Qes0.49
Qms4.5
Vas7.6L
Re3.8Ω
Le0.06mH
BL3.4Tm
Sd57cm²
Mms4g
Xmax3.4mm
SPL89dB
Power20W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
