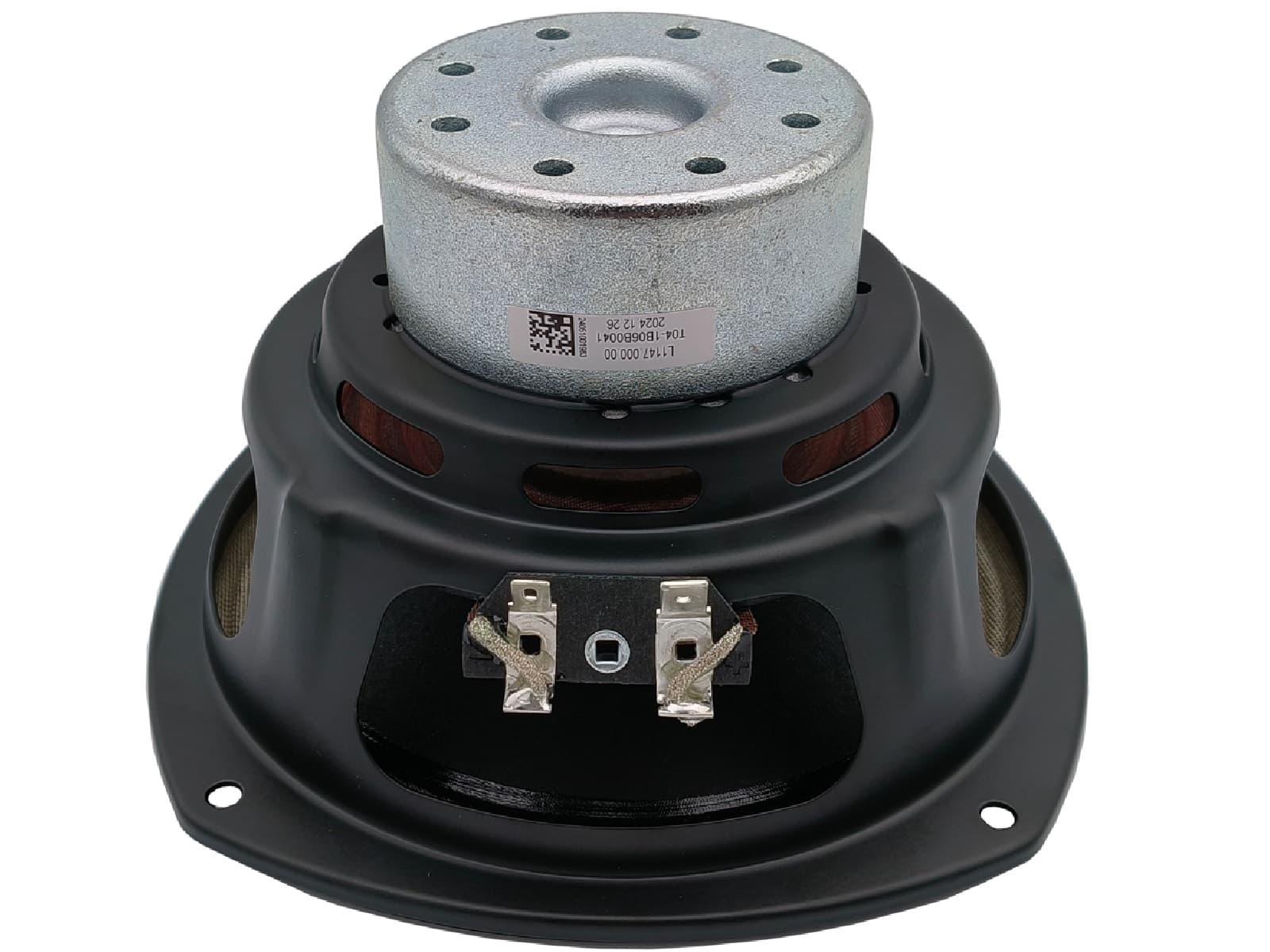

Peerless NSM-0620R00-16 16Ω
16 Ω
No current price
- Fs
- 97Hz
- Xmax
- 6.5mm
- SPL
- 92dB
- Pe
- 225W
- BL
- 21.9T·m
- Vd
- 90cm³
- Qts
- 0.32
- Vas
- 3L
Peerless NSM-0620R00-16 is a 6.5-inch 16 ohm LF driver rated at 225 W RMS. The validated T/S data includes Fs 97 Hz, Qts 0.32, Vas 3.3 L, Xmax 6.5 mm, sensitivity 91.5 dB, plus 90 cm³ Vd and 281 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 97Hz
- Qts
- 0.32
- Qes
- 0.34
- Qms
- 4.5
- Vas
- 3.3L
- Re
- 13Ω
- Le
- 0.48mH
Motor and cone
- BL
- 21.9T·m
- Sd
- 137cm²
- Mms
- 21g
- Xmax
- 6.5mm
- Vd †
- 90cm³
Power and response
- Sensitivity †
- 91.5dB
- Manufacturer sensitivity
- 90.7dB
- Power
- 225W
- Impedance
- 16Ω
- EBP †
- 281 · Leans vented
Size and mounting
- Weight
- 1.3kg
Other published values
- Cms
- 0.13mm/N
- Power Peak
- 700
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 6.496062992125984″
- BL
- 21.9T·m
- Fs
- 97Hz
- Le
- 0.48mH
- Re
- 13Ω
- Sd
- 137cm²
- Cms
- 0.13mm/N
- Mms
- 21g
- Qes
- 0.34
- Qms
- 4.5
- Qts
- 0.32
- SPL
- 90.7dB
- Vas
- 3.3L
- Xmax
- 6.5mm
- Power
- 225W
- Impedance
- 16Ω
- Power Peak
- 700
- Weight
- 1.3kg
