Overview
LF DriverCF series
Monacor

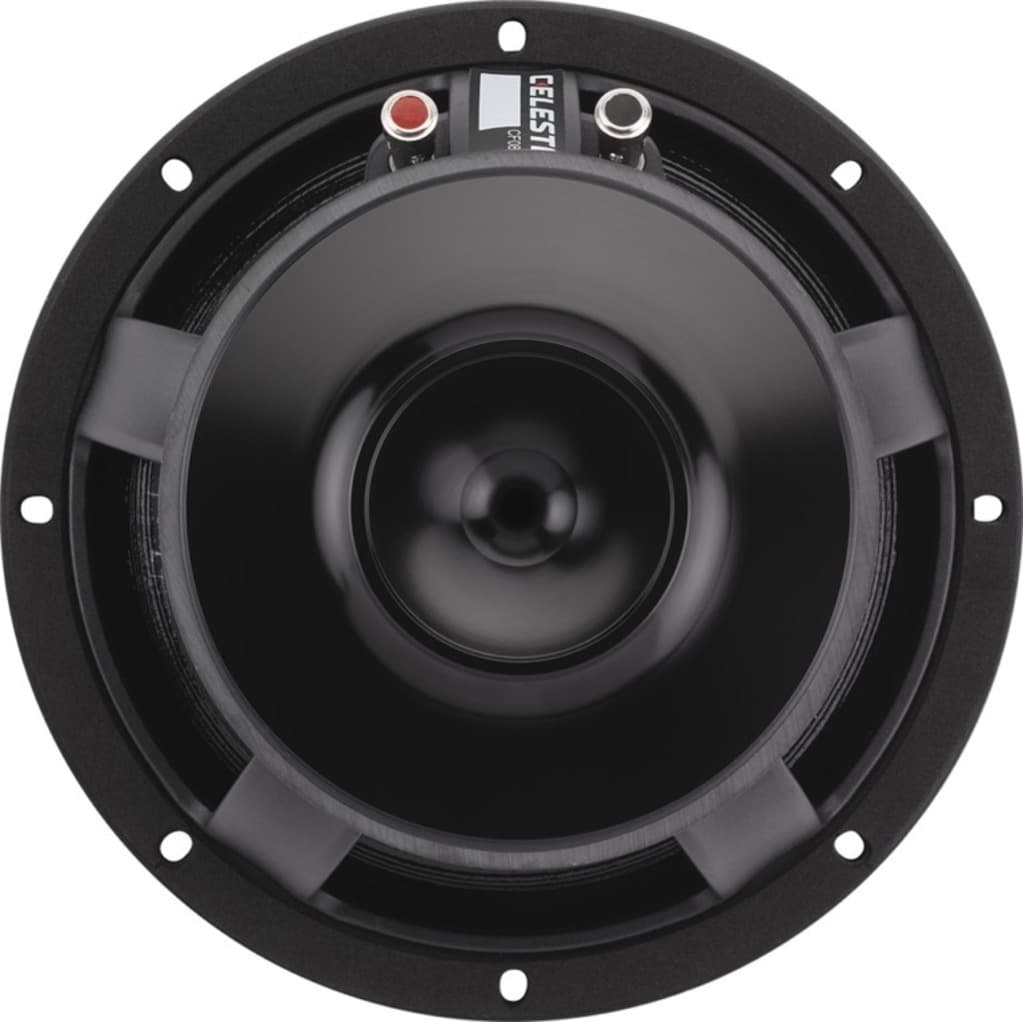

Monacor CF0820M/8
Monacor CF0820M/8 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 202Hz, Qts 0.57, Vas 2.1L, Xmax 3.5mm, sensitivity 95.2dB, plus 79cm³ Vd and 243 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
95.2dB
98.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
243
Vented alignment
Vd
79cm³
T/S Parameters
Valid
Fs202Hz
Qts0.57
Qes0.83
Qms1.8
Vas2.1L
Re5.4Ω
Le0.12mH
BL13.3Tm
Sd227cm²
Mms21g
Xmax3.5mm
SPL95dB
Power250W
Impedance8Ω
F Low150Hz
F High6000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.4kg
Diameter215.0mm
Overall Depth11.0mm
Cutout Diameter187.0mm
