Overview
LF DriverPluvia series
Markaudio
Markaudio PLUVIA 7
Markaudio PLUVIA 7 is a 2.75" 4 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 78Hz, Qts 0.54, Vas 4.5L, Xmax 4mm, sensitivity 87.1dB, plus 20cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.75"
Impedance
4Ω
RMS Power
15W
Sensitivity
87.1dB
EBP
117
Vented alignment
Vd
20cm³
T/S Parameters
Valid
Fs78Hz
Qts0.54
Qes0.66
Qms3.0
Vas4.5L
Re3.5Ω
Le0.03mH
BL2.9Tm
Sd50cm²
Mms3g
Xmax4.0mm
SPL87dB
Power15W
Impedance4Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

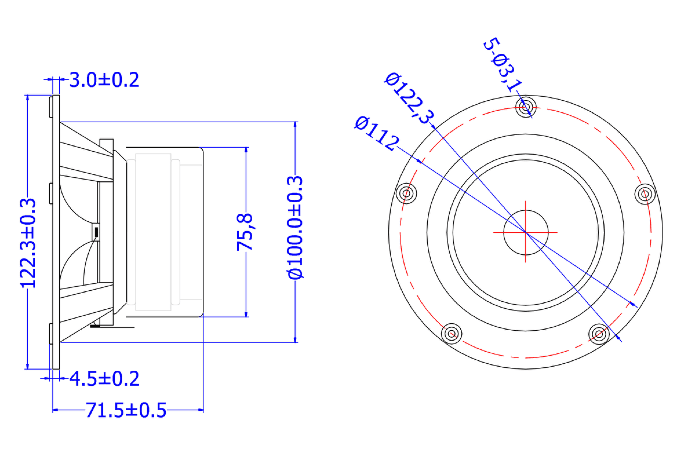

Dimensions & Physical
Weight2.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Markaudio
PLUVIA 7
2.75"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
Markaudio
CHN-70
2.75"
Xmax4mm0%
Qts0.48-10%
BL3.4Tm+17%
Vas5.3L+18%
Qes0.65-2%
65%
Similarity
Markaudio
Alpair 7
2.75"
Xmax4.5mm+13%
Qts0.56+6%
BL3.9Tm+32%
Vas5L+11%
Qes0.74+12%
