Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence OMEGA PRO-18A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverOMEGA PRO series
Eminence

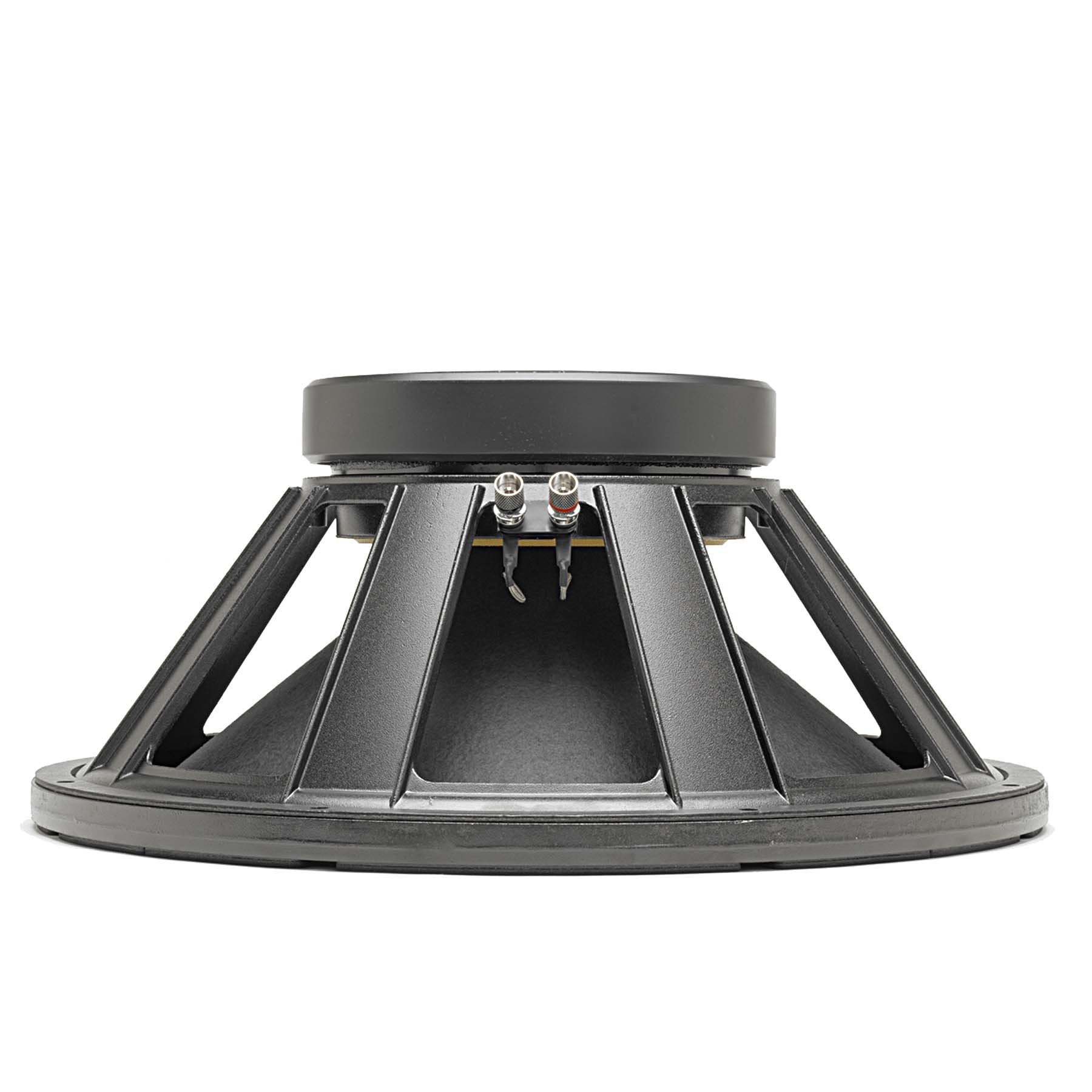

Eminence OMEGA PRO-18A
Eminence OMEGA PRO-18A is a 18" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 25Hz, Qts 0.31, Vas 548.7L, Xmax 4.8mm, sensitivity 96.3dB, plus 556cm³ Vd and 78 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £196.00.
Size
18"
Impedance
8Ω
RMS Power
800W
Sensitivity
96.3dB
EBP
78
Either alignment
Vd
556cm³
T/S Parameters
Valid
Fs25Hz
Qts0.31
Qes0.32
Qms8.2
Vas548.7L
Re5.2Ω
Le1.67mH
BL18.8Tm
Sd1159cm²
Mms137g
Xmax4.8mm
SPL96dB
Power800W
Impedance8Ω
F Low40Hz
F High0Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
4 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£215.00
inc VAT
1 in stock
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£230.00
inc VAT
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£241.39
inc VAT
Out of stock
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£275.00
inc VAT
In stock
Best current price
Updated 11 Sept 2026
partsexpress
£196.00
Avg £229.00£33.00 below avg (-14.4%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.4kg
Diameter457.2mm
Overall Depth207.0mm
Cutout Diameter420.6mm
Bolt Circle Diameter438.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
OMEGA PRO-18A
18"
Best current price
£196.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
63%
Similarity
34% cheaper£129.42
Dayton Audio
PA460-8
18"
Lower price
Xmax6mm+25%
Qts0.33+6%
BL22.3Tm+19%
Vas402L-27%
Qes0.34+6%
64%
Similarity
Eminence
SIGMA PRO-18A
18"
Xmax6.1mm+27%
Qts0.29-6%
BL22.1Tm+18%
Vas441.2L-20%
Qes0.3-6%
61%
Similarity
Celestion
FTR18-4080F
18"
Xmax6mm+25%
Qts0.310%
BL22.5Tm+20%
Vas281.3L-49%
Qes0.34+5%
