Eighteen Sound NSD1095N 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /NSD1095N

Media

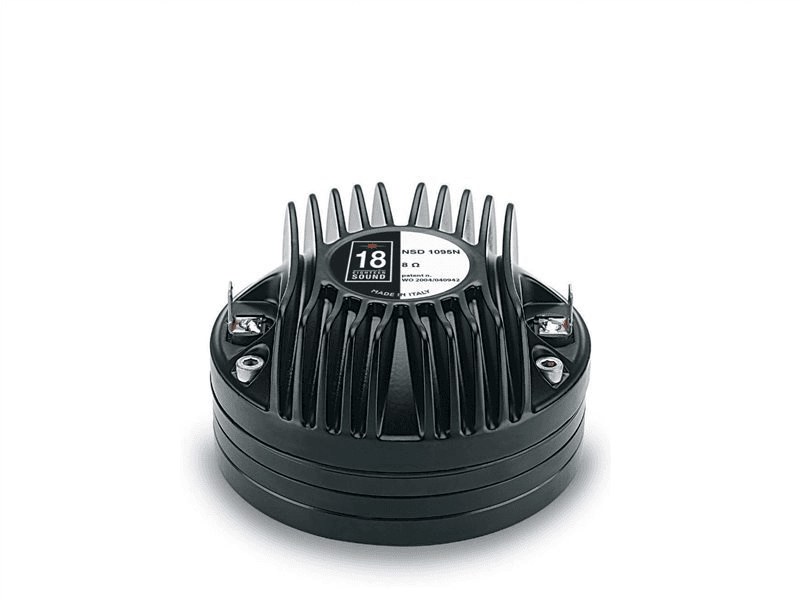

Eighteen Sound NSD1095N 1 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound NSD1095N

Eighteen Sound NSD1095N is a 1" 16 ohm compression driver rated at 50W RMS. The source-backed specifications include sensitivity 110dB, range from 1600Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
16Ω
RMS Power
50W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power50W
Power Nominal50W
Impedance16Ω
Min Impedance11.9Ω
F Low1600Hz
F High20000Hz
Xover1600Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.1kg
Diameter93.0mm
Overall Depth53.0mm
