1.5-inch compression driver · 100 mm voice coil · 160 W
Eighteen Sound ND4015TI2 16Ω
800–20000 Hz
No price for delivery to the UK
- SPL
- 113dB
- Pe
- 160W
- Xover
- 800Hz
- Throat
- 40mm
- VC
- 100mm

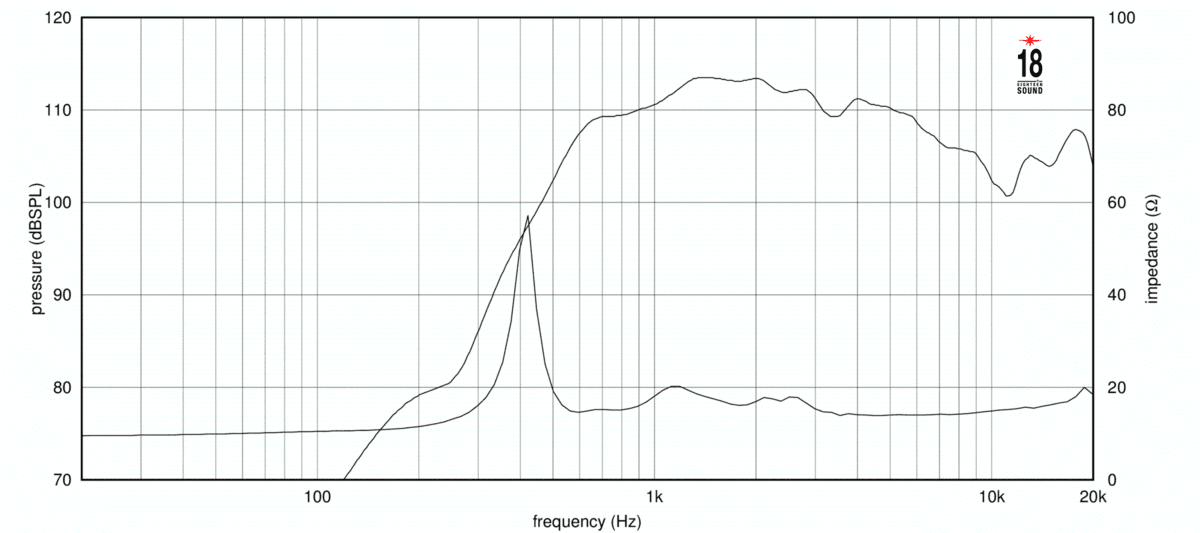

Published graphs
Eighteen Sound ND4015TI2 is a 1.5-inch 16 ohm compression driver rated at 160 W RMS. The source-backed specifications include sensitivity 113 dB, range from 800 Hz, to 20000 Hz, throat 40 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £400.67.
Source-backed specifications
Motor and cone
- Voice coil
- 100mm
Power and response
- Sensitivity
- 113dB
- Power
- 160W
- Nominal power
- 160W
- Impedance
- 16Ω
- Min. impedance
- 14Ω
- Range
- 800–20000Hz
- Crossover
- 800Hz
- Throat
- 40mm
Size and mounting
- Diameter
- 150mm
- Depth
- 57mm
- Weight
- 3.2kg
Other published values
- Power Program
- 320
Everything else Eighteen Sound lists
HF · Primary · 1.5″
- SPL
- 113dB
- Power
- 160W
- Impedance
- 16Ω
- Sensitivity
- 113dB
- Low limit
- 800Hz
- Nominal power
- 160W
- Power Program
- 320
- High limit
- 20000Hz
- Throat
- 40mm
- Manufacturer sensitivity
- 113dB
- Min. impedance
- 14Ω
- Voice coil
- 100mm
- Crossover
- 800Hz
- Weight
- 3.2kg
- Diameter
- 150mm
- Depth
- 57mm
None of the shops we track lists delivery to the UK at checkout.
