Eighteen Sound ND3ST 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND3ST

Media

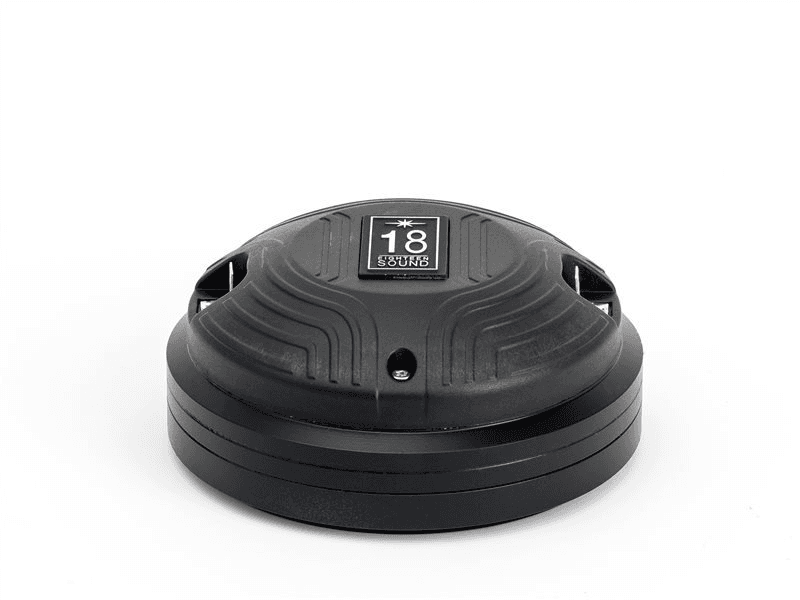

Eighteen Sound ND3ST 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND3ST

Eighteen Sound ND3ST is a 1.5" 16 ohm compression driver rated at 120W RMS. The source-backed specifications include sensitivity 112dB, range from 800Hz, to 20000Hz, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
120W
Sensitivity
112.0dB
Datasheet

Technical Specifications

Canonical
SPL112dB
Power120W
Power Nominal120W
Impedance16Ω
Min Impedance10.6Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat36mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.3kg
Diameter120.0mm
Overall Depth53.0mm
