Eighteen Sound ND3A 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND3A

Media

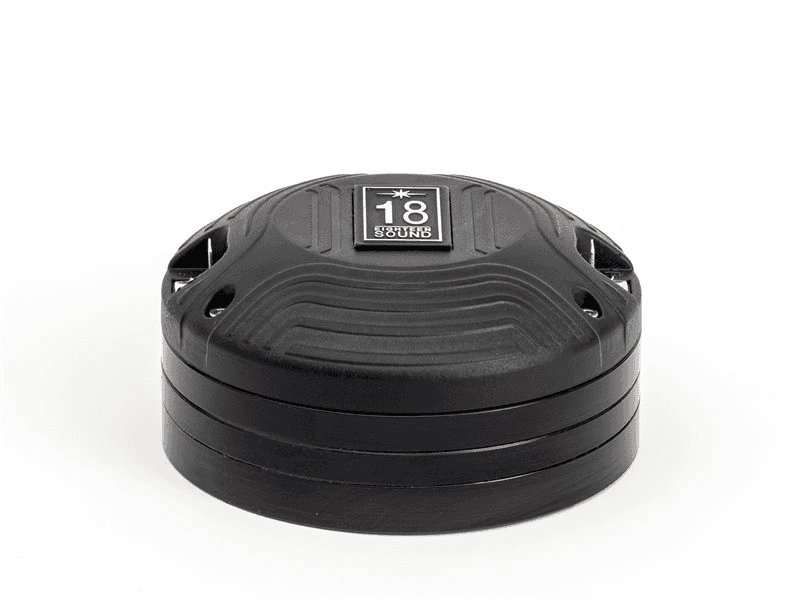

Eighteen Sound ND3A 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND3A

Eighteen Sound ND3A is a 1.5" 16 ohm compression driver rated at 110W RMS. The source-backed specifications include sensitivity 112dB, range from 800Hz, to 20000Hz, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
110W
Sensitivity
112.0dB
Datasheet

Technical Specifications

Canonical
SPL112dB
Power110W
Power Nominal110W
Impedance16Ω
Min Impedance14.6Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat36mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.6kg
Diameter109.0mm
Overall Depth53.0mm
