Eighteen Sound ND2T 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND2T

Media

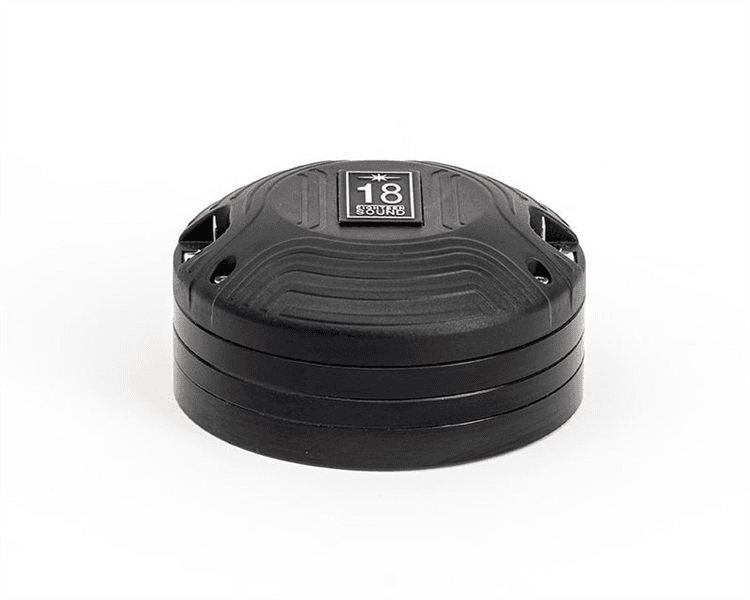

Eighteen Sound ND2T 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND2T

Eighteen Sound ND2T is a 1.5" 16 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 110dB, range from 800Hz, to 20000Hz, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
80W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power80W
Power Nominal80W
Impedance16Ω
Min Impedance12.5Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat36mm
Voice Coil61mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.5kg
Diameter104.0mm
Overall Depth76.0mm
